Wittenstein Alpha NP 015S-MF1-5-0E1-1S Planetary Gearbox
Planetary Gearbox
Wittenstein Alpha NP 015S-MF1-5-0E1-1S single-stage planetary gearbox with 5:1 ratio, high torque capacity, flange mounting, and IP64 protection for precision motion control. Recommended for servo motor applications, robotics, and CNC automation systems.Wittenstein Alpha NP 015S-MF1-5-0E1-1S Planetary Gearbox

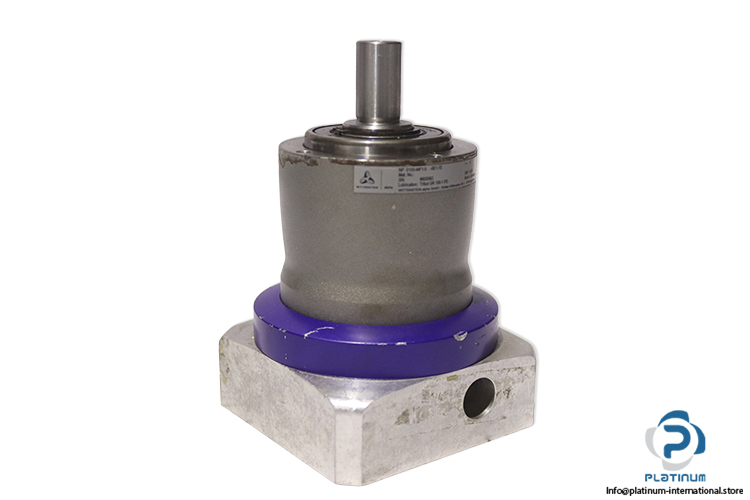

The Wittenstein Alpha NP 015S-MF1-5-0E1-1S planetary gearbox from the NP series is engineered for high precision, compact design, and reliable torque transmission in demanding motion control and automation applications.
Manufacturer: Wittenstein Alpha / Artisan
Type: Planetary Gearbox
Model: NP 015S-MF1-5-0E1-1S
Series: NP

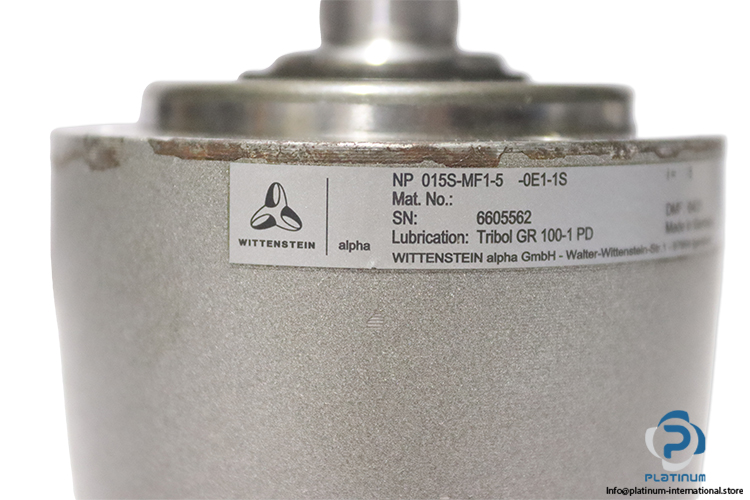

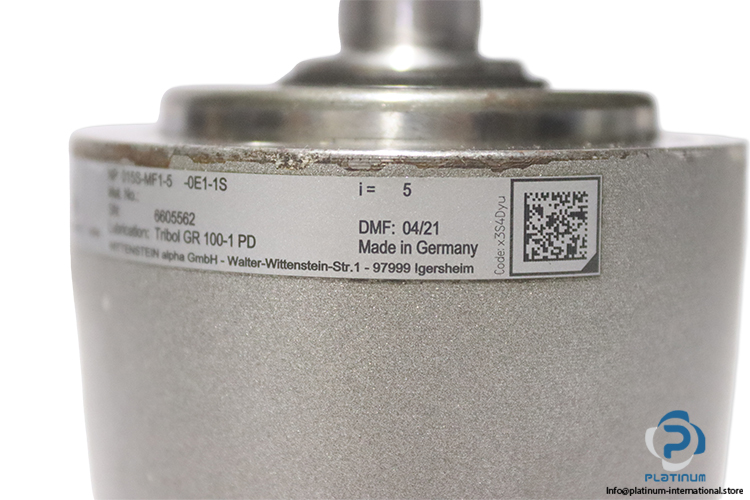

Serial Number: 6605562

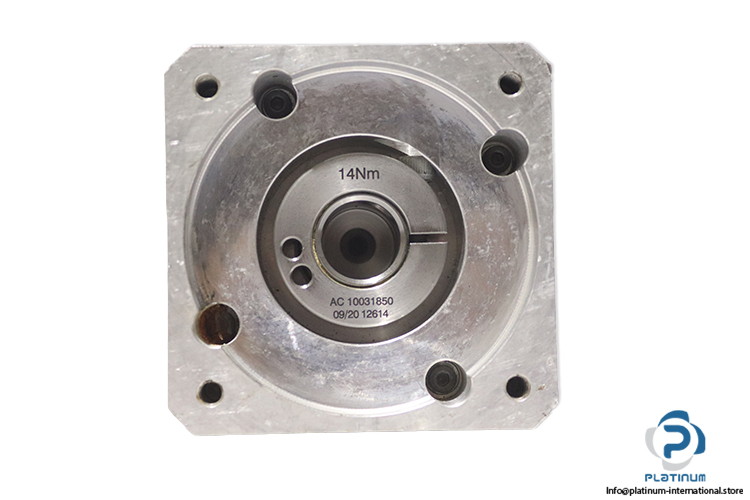

Additional Marking: AC 10031850 09/20 12614
Ideal for servo motor integration, CNC machinery, robotics, and high-precision automation systems requiring compact design and high torque density.
Please contact us via Ask for assistance with any inquiries.
| Size | 15 |
| No. of Stage | 1 |
| Ratio i | 5:1 |
| Shaft Diameter | 16 mm |
| Hollow Shaft | 18 mm |
| Flange Diameter | 90 mm |
| Max. Acceleration Torque (T2B) | 40 Nm |
| Max. Torque (T2α) | 64 Nm |
| Load Running Torque | 14 Nm |
| Emergency Stop Torque | 80 Nm |
| Max. Input Speed | 8000 rpm |
| Permitted Average Input Speed | 3700 rpm |
| Max. Axial Force | 1550 N |
| Mounting Style | Flange Mounting (Square Flange) |
| Lubrication | Lubricated for Life |
| Direction of Rotation | In- and Output Same Direction |
| Ambient Temperature | -15 to 40 °C |
| Protection Degree | IP64 |
