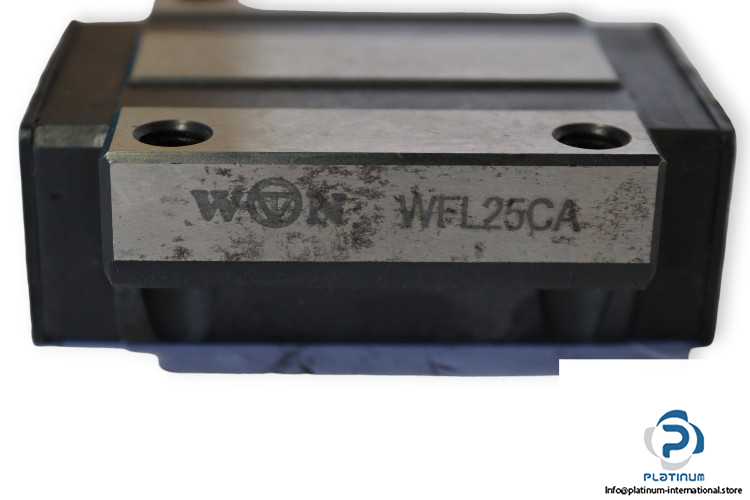

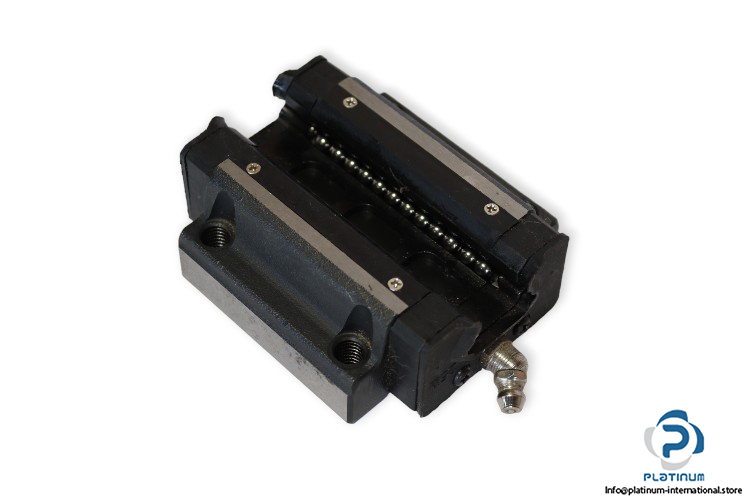

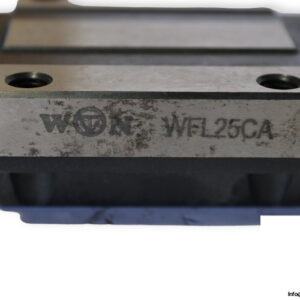

WON WFL25CA Linear Guideway Block

Manufacturer: WON
Type: Four-way equal load type -Tap type
Model: WFL 25 CA

Size: 25
Block Type: Flange
Load Type: Equal Load
Total Height: 36 mm
Block Width: 70 mm
Block Length: 78 mm
Thread Size: M8×16
B: 57 mm
C: 45 mm
Basic dynamic load rating: 19894 N
Basic static load rating: 34398 kN
