Xaar Xusb XP55500016 Drive Electronics
New
Available on request
290,00$
DRIVE ELECTRONICS
Xaar XUSB is a powerful drive electronics module supporting up to 8 printheads with 512 MB buffering, compatible with Windows 7/8, and offering flexible printing modes and stable printhead control.APIBufferingControlControllerDriveElectronicsHigh-SpeedIndustrialInkjetModulePowerPrintPrintheadScorpionSystemXaarXusb
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

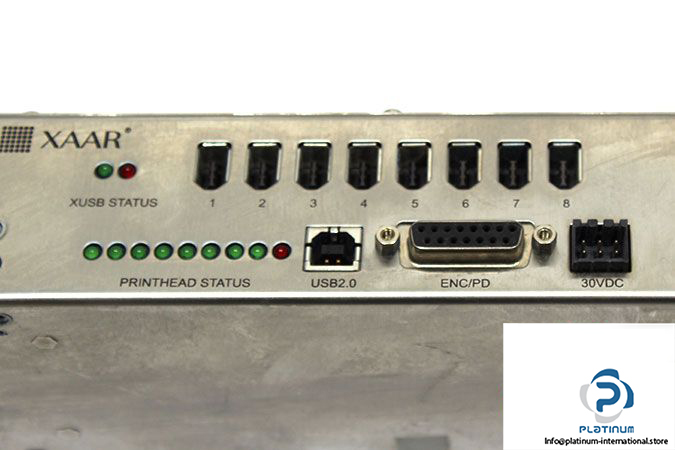

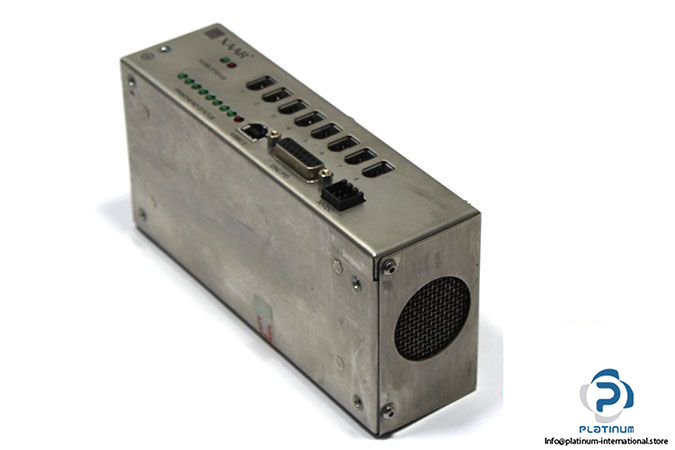

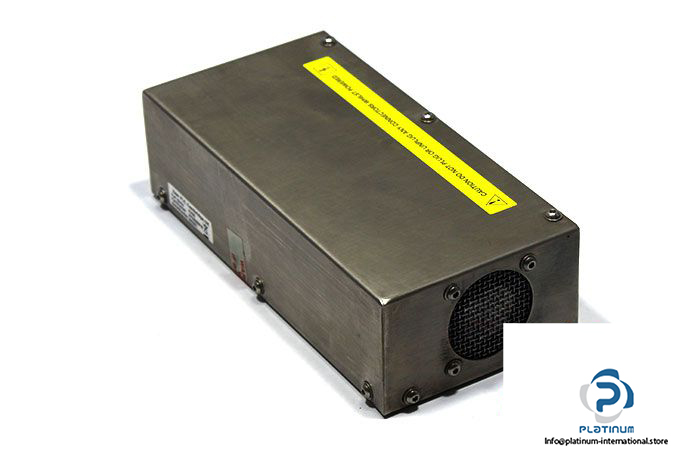

XAAR XUSB DRIVE ELECTRONICS
The Xaar XUSB is a compact and powerful drive electronics solution designed to interface seamlessly with up to 8 Xaar printheads. It ensures high-speed data handling, stable operation, and flexible integration for advanced printing applications. Compatible with multiple operating modes and Windows platforms, this controller is built for precision and reliability in industrial inkjet systems.
Manufacturer: Xaar
Type: Drive Electronics
Model: XUSB

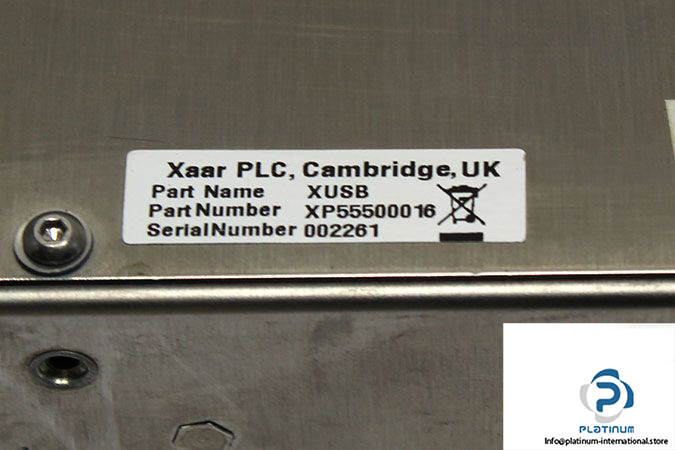

Part No: XP55500016
REF NO: 002261
| Supply Voltage | 24 / 30 V |
| Supply Power Rating | Up to 28 A |
| Printhead Maintenance | Printhead Power Control and Idle Spit |
| Operating System Support | 32 and 64 bit Windows 7 and Windows 8 |
| Programming Interface | Xaar Scorpion API via Windows DLL |
| Operating Modes | Single Shot, Back to Back, Fixed Gap Continuous (All With Optional Soft Stop) |
| Product Detect Inputs | 1 |
| Shaft Encoder Inputs | 1 |
| Print Buffering Memory | 512 MB per Xaar XUSB |
| Maximum Number of Printheads | 8 |
| Ambient Temperature | -20 / 70 °C |
| Dimensions | 174 x 85 x 52 mm |
