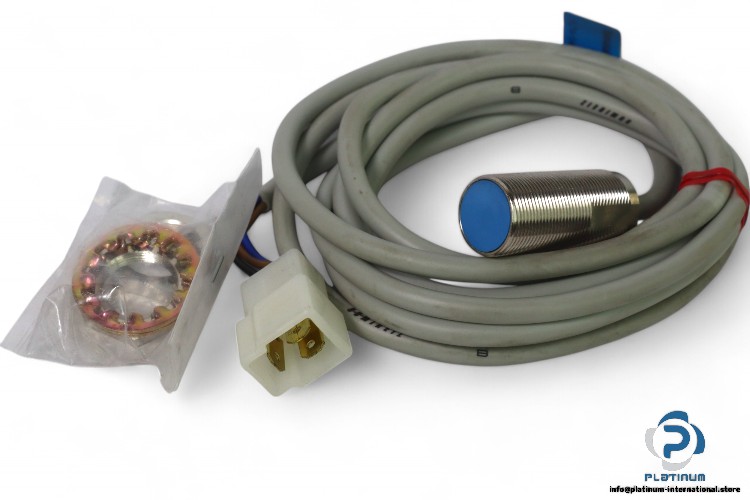

Yamatake-Honeywrll FL7M-5A6 Proximity Switch
Manufacturer: YAMATAKE-HONEYWRLL
Type: PROXIMITY SWITCH

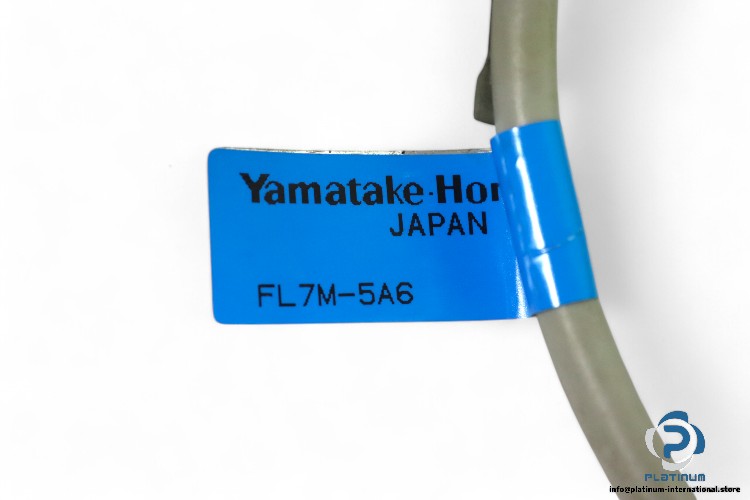

Model: FL7M-5A6
Rated sensing distance: 5±0.5 mm
Rated supply voltage: 12/24 V DC
Operation Voltage Range: 10 … 30 V DC
Current consumption: 13 mA
Operating Frequency: 600 K Hz
Electrical design: NPN and PNP
insulation resistance: 50 M„¦ min
Degree of protection: IP67
Material: Ni-plated brass/PBT resin
Operating Temperature: -25 … 70—¦C
