Zimm Z-25-SN Screw Jack
New
In stock1 unitReady to ship
Screw Jack
ZIMM Z-25-SN Screw Jack is a precision lifting and positioning component with a 25 kN load capacity, 6:1 gear ratio, and a max speed of 3000 rpm. Designed for industrial applications, it features a corrosion-resistant aluminum housing and a hardened steel worm shaft for enhanced durability.25Case-HardenedCorrosion-resistanthigh-loadHigh-SpeedIndustrialJackkNLiftingMechanicalPositioningPrecisionscrewshaftSystemWorm
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

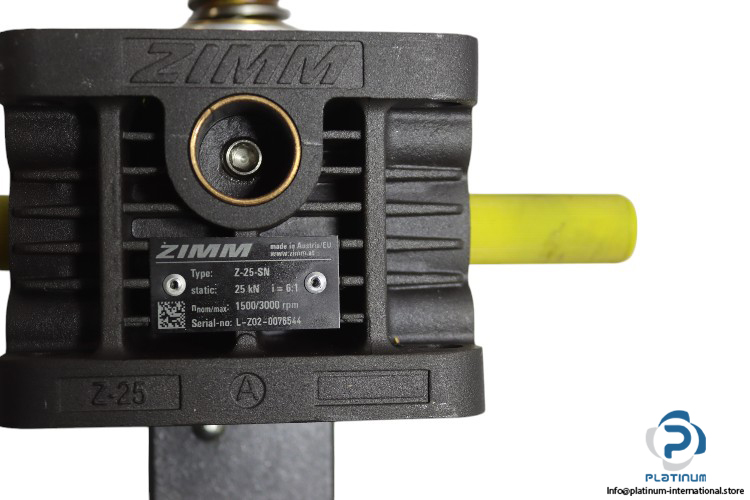

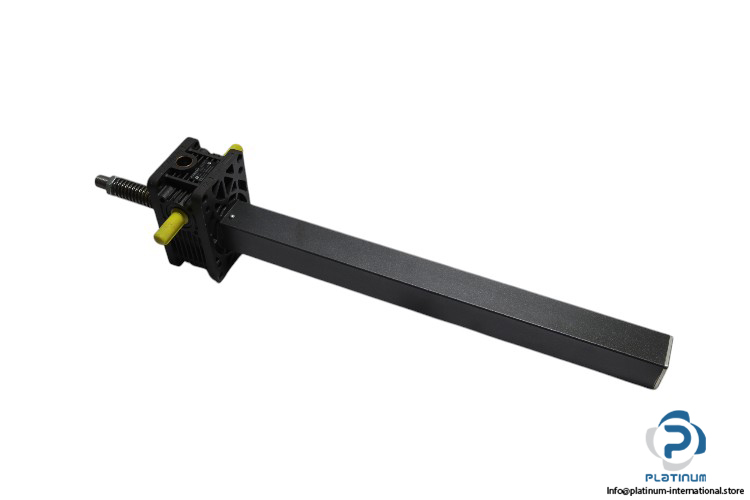

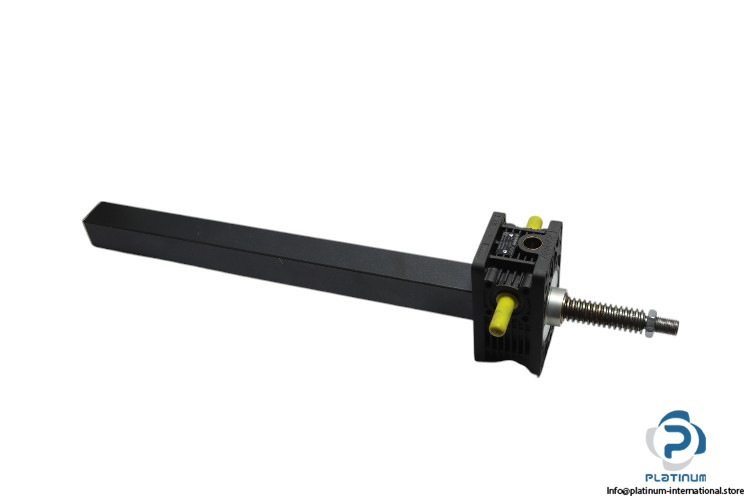

ZIMM Z-25-SN Screw Jack
The ZIMM Z-25-SN Screw Jack is a high-performance lifting and positioning component designed for industrial applications requiring precision, durability, and reliability. With a static load capacity of 25 kN, a corrosion-resistant aluminum housing, and a hardened steel worm shaft, this screw jack delivers optimal performance in demanding environments. Its robust gearbox and high-speed capability make it ideal for heavy-duty mechanical lifting systems.
- Manufacturer: ZIMM
- Type: Screw Jack
- Model: Z-25-SN
- Serial No: L-Z02-0076544
Technical Specifications
- Max. Compressive/Tensile Force (Static): 25 kN
- Nominal Speed: 1500 rpm
- Max. Speed: 3000 rpm
- Gear Ratio: 6:1
- Housing Material: Aluminium, corrosion-resistant
- Worm Shaft: Steel, case-hardened, ground
- Gearbox Operating Temperature: Max. 60°C
- Moment of Inertia: N: 1.449 kg cm² / L: 0.589 kg cm²
