ZKL 51122A Single-Direction Thrust Ball Bearing
New
In stock1 unitReady to ship
Single-Direction Thrust Ball Bearing
The ZKL 51122 A Single-Direction Thrust Ball Bearing features a 110 mm bore diameter, 145 mm outer diameter, 97.8 kN dynamic load rating, and a fatigue load limit of 11.6 kN, designed for axial load applications in one direction.1“1011/61455112297.8aAxialBallbearingborediameterDynamicfatigueGreaseHigh-SpeedkNLimitLoadlubricationmmOuterRatingsingle-directionThrustZKL
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

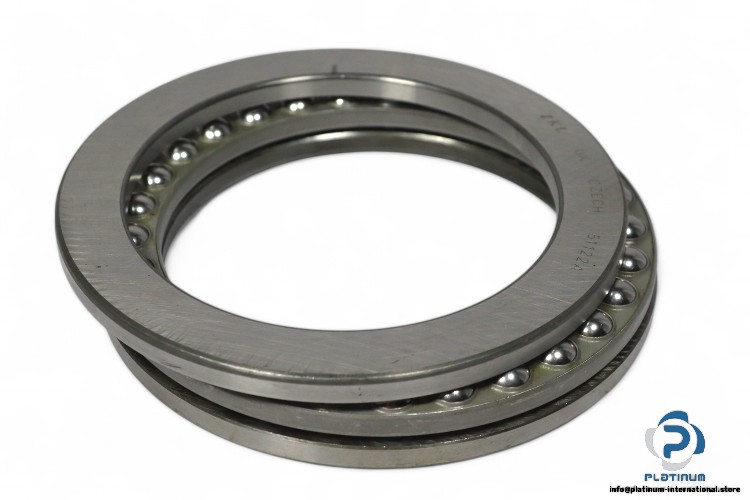

ZKL 51122 A Single-Direction Thrust Ball Bearing
The ZKL 51122 A Single-Direction Thrust Ball Bearing is designed to handle axial loads in a single direction. With a robust design and high load ratings, it is suitable for various industrial applications requiring reliable axial support under heavy load conditions.
Manufacturer: ZKL
Type: SINGLE-DIRECTION THRUST BALL BEARING
Model: 51122 A
This ZKL single-direction thrust ball bearing offers high performance and is well-suited for applications that require axial load handling in one direction, such as in machinery and heavy-duty equipment.
| Bore Diameter (d) | 110 mm |
| Outer Diameter (D) | 145 mm |
| Bearing Height | 25 mm |
| Basic Dynamic Load Rating | 97.8 kN |
| Basic Static Load Rating | 288 kN |
| Reference Speed (Grease Lubrication) | 1900 min»¹ |
| Reference Speed (Oil Lubrication) | 2500 min»¹ |
| Fatigue Load Limit | 11.6 kN |
