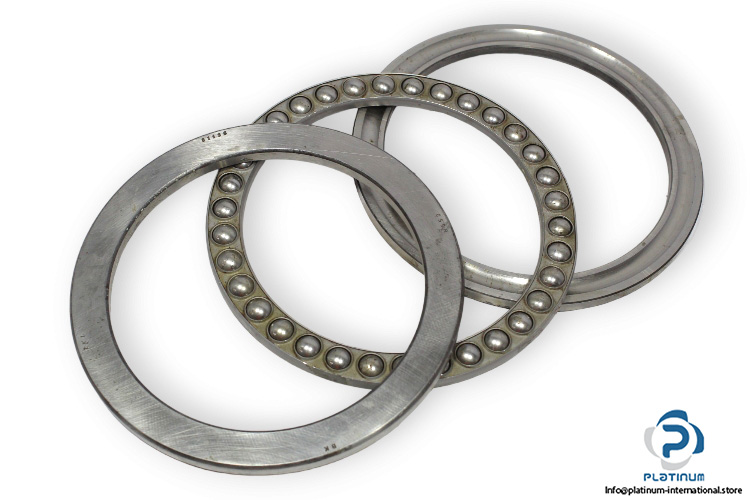

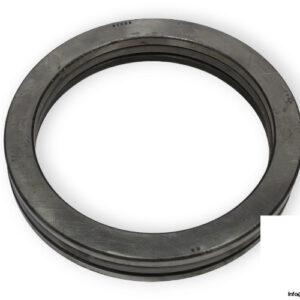

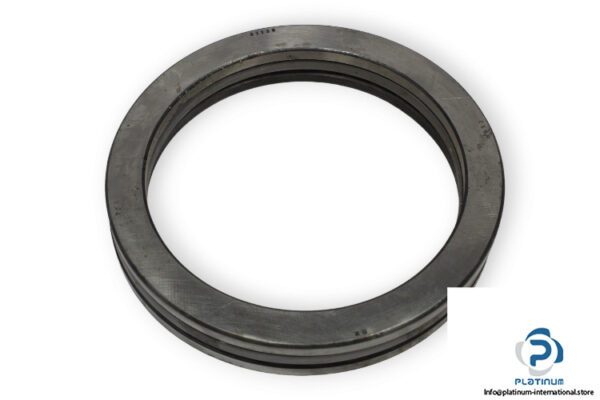

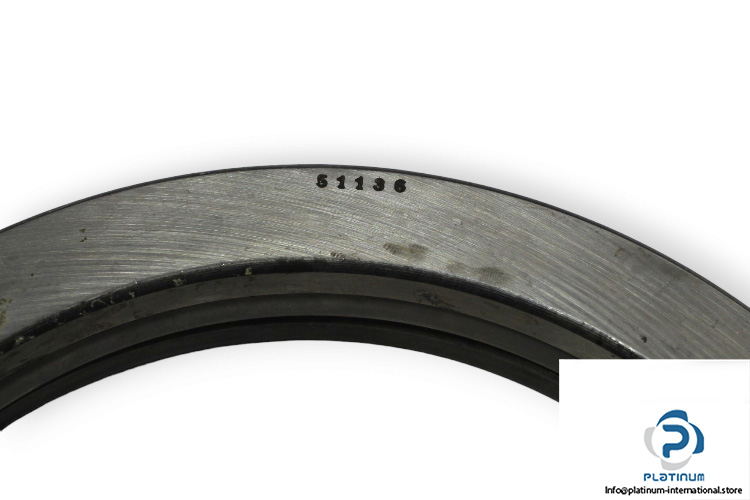

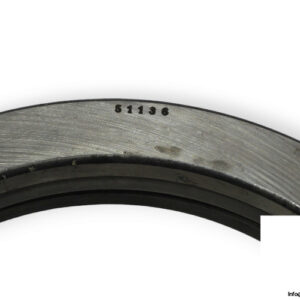

ZKL 51136 Axial Deep Groove Ball Bearing

Manufacturer: ZKL
Type: Thrust ball bearings single direction
Model: 51136

Dimensions
Bore diameter d: 180 mm
Outer diameter D: 225 mm
Height T: 34 mm
Outside diameter shaft washer d1: 222 mm
Minimum chamfer dimension rs: 1,1 mm
Basic load ratings:
Dynamic C_a: 165,6 kN
Static C_0a: 639 kN
Fatigue load rating C_u: 20,4 kN
Reference speed:
Grease: 1100 rpm
Oil: 1500 rpm
