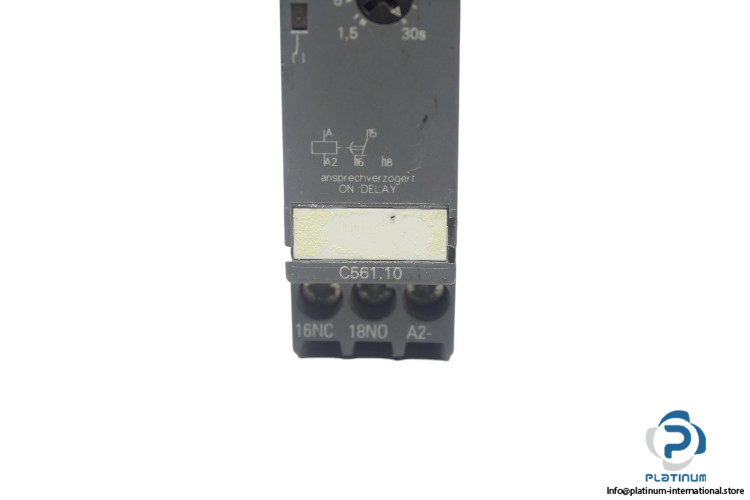

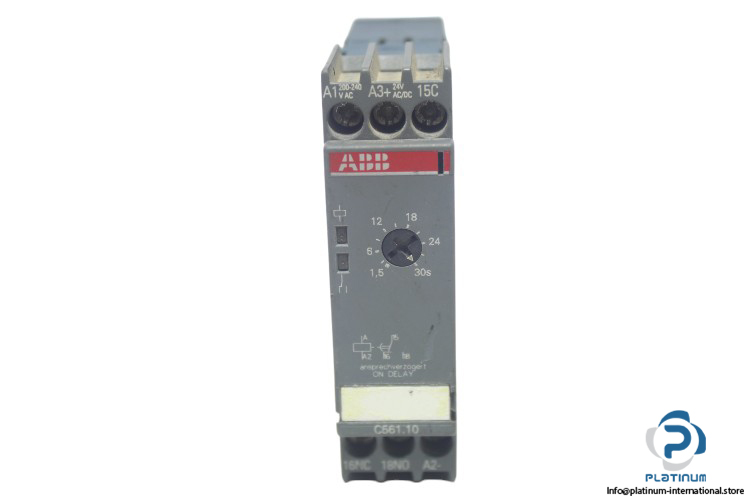

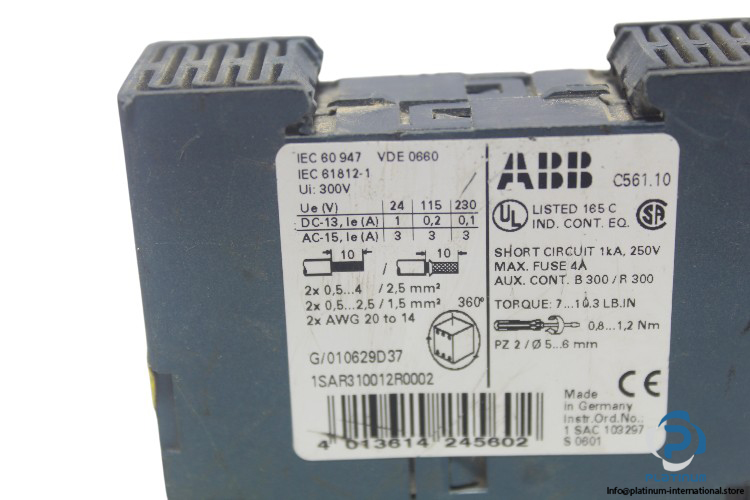

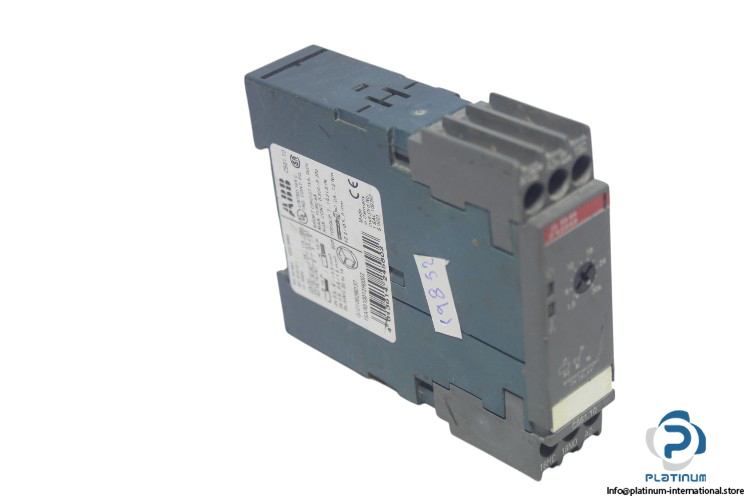

ABB C561.10 Time Relay
Реле времени ABB TIME RELAY C561.10 — высокопроизводительное реле, предназначенное для функций задержки времени в автоматизированных системах, обеспечивающее точное управление с широким диапазоном напряжений и прочной конструкцией.
ABB TIME RELAY C561.10
The ABB TIME RELAY C561.10 is a high-performance relay designed for industrial and control applications. It offers precise time delay functions, ensuring reliable operation in automated systems. With robust construction, versatile voltage ratings, and a wide operating temperature range, this time relay is ideal for demanding environments where timing accuracy and durability are crucial.
Manufacturer: ABB
Model: C561.10
Part Number: G/010706D08
Type: Time Relay
Key Features:
- Rated Insulated Voltage: 250 V AC
- Rated Power: 2 W
- Rated Operating Current:
- AC 15 at 230 V / 50 Hz: 3 A
- DC-13 at 24 V DC: 1 A
- DC-13 at 230 V DC: 0.1 A
- Enclosure Protection: IP 20
- Tightening Torque: 0.8 to 1.2 Nm
- Wide Ambient Temperature Range: -25 to 60 °C
- Dimensions: 120 x 22.5 x 86 mm
The ABB TIME RELAY C561.10 ensures that critical time-based operations are performed with precision, making it an essential component in automation systems.
