B&R X20CP1584 CPU MODULE
Новинка
В наличии1 единицаГотово к отправке
CPU-модуль B&R X20 CP 1584 промышленный CPU-контроллер с процессором Intel Atom, множеством коммуникационных интерфейсов, включая Ethernet, POWERLINK, USB и RS232, разработан для передовых систем автоматизации X20.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества
B&R X20 CP 1584 CPU Module
The B&R X20 CP 1584 is an industrial controller CPU module designed for high-performance automation systems within the B&R X20 system architecture. It integrates powerful processing capabilities with multiple communication interfaces, enabling reliable machine control and flexible industrial networking.
Manufacturer: B&R
Type: CPU Module
Model: X20 CP 1584
Code: C3700414851
Explosion Proof
| Revision | G3 |
| System | X20 |

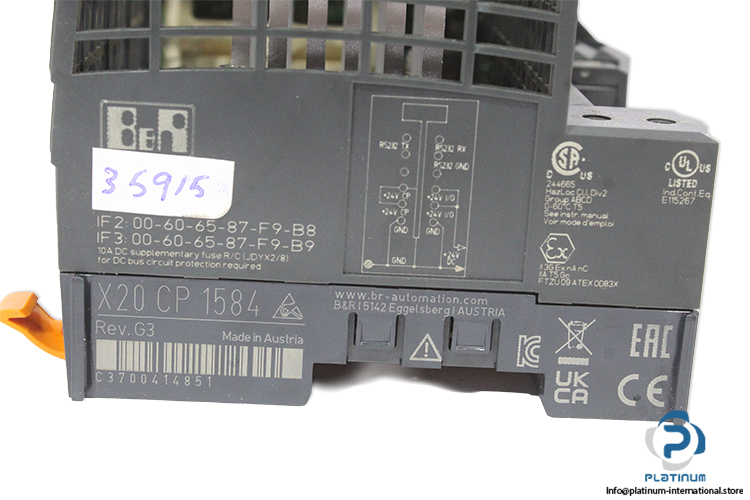

| MAC Addresses | 00-60-65-87-F9-B8, 00-60-65-87-F9-B9 |

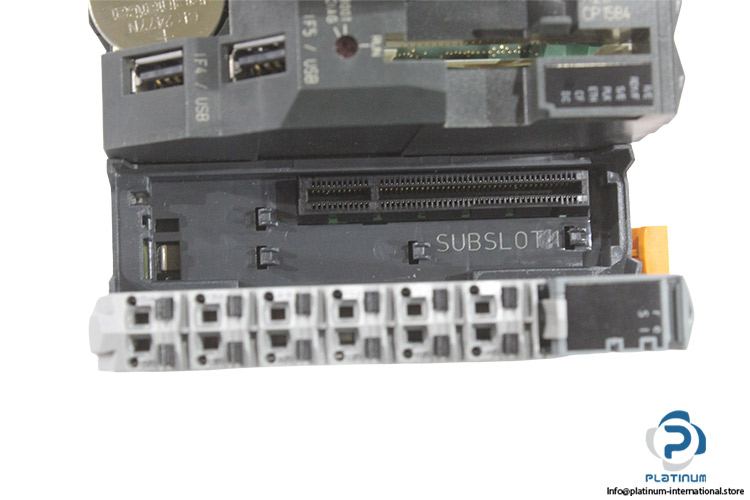

| Controller Slot | One Slot Available For X20 Communication Modules |
| Input Voltage | 24 VDC -15% / +20% |
| Input Current | Max. 1.5 A |
| Fuse | Integrated, Cannot Be Replaced |
| Nominal Output Voltage | 24 VDC |
| Permissible Contact Load | 10 A |
| Interfaces | 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link |
| System Module | Controller |
| B&R ID Code | 0xC370 |
| Cooling | Fanless |
| Status Indicators | CPU Function, Ethernet, POWERLINK, CompactFlash, Battery |
| Power Consumption Without Interface Module And USB | 8.6 W |
| Power Consumption For X2X Link Power Supply | 1.42 W |
| Power Consumption Internal I/O | 0.6 W |
| Standard Memory RAM | 256 MB DDR2 SDRAM |
| User RAM | 1 MB SRAM |
| Memory | 256 MB DDR2 SDRAM |
| Processor Type | Intel Atom E620T |
| Clock Frequency | 0.6 GHz |
| L1 Cache Data Code | 24 kB |
| L1 Cache Program Code | 32 kB |
| L2 Cache | 512 kB |
| Interface IF1 Signal | RS232 |
| Variant | Connection Via 12-Pin Terminal Block X20TB12 |
| Max. Distance | 900 m |
| Transfer Rate | Max. 115.2 kbit/s |
| Interface IF2 Signal | Ethernet |
| Variant | 1x RJ45 Shielded |
| Line Length | Max. 100 m Between 2 Stations (Segment Length) |
| Transfer Rate | 10/100/1000 Mbit/s |
| Interface IF3 Fieldbus | POWERLINK (V1/V2) Managing Or Controlled Node |
| Variant | 1x RJ45 Shielded |
| Line Length | Max. 100 m Between 2 Stations (Segment Length) |
| Transfer Rate | 100 Mbit/s |
| Interface IF4 Type | USB 1.1/2.0 |
| Variant | Type A |
| Max. Output Current | 0.5 A |
| Interface IF5 Type | USB 1.1/2.0 |
| Variant | Type A |
| Max. Output Current | 0.5 A |
| Interface IF6 Fieldbus | X2X Link Master |
| Degree Of Protection Per EN 60529 | IP20 |
| Temperature Operation Horizontal Mounting Orientation | -25 To 60°C |
| Dimensions Width | 150 mm |
| Height | 99 mm |
| Depth | 85 mm |
