B&R X20CP1584 CPU MODULE
New
In stock1 unitReady to ship
CPU Module
B&R X20 CP 1584 industrial CPU controller with Intel Atom processor, multiple communication interfaces including Ethernet, POWERLINK, USB, and RS232, designed for advanced X20 automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

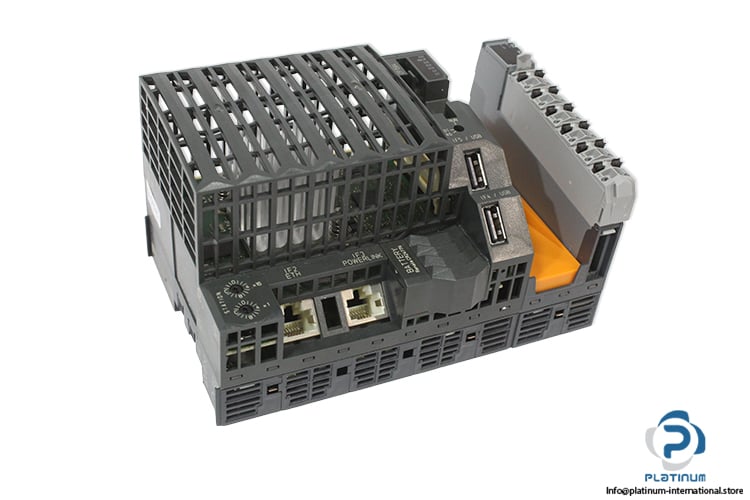

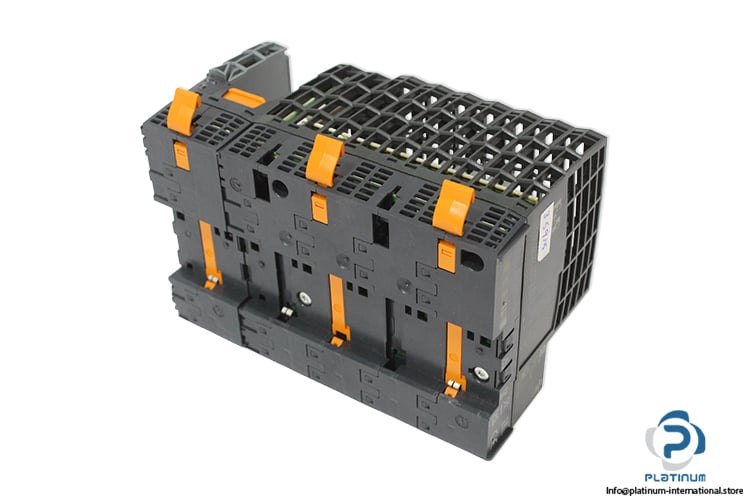

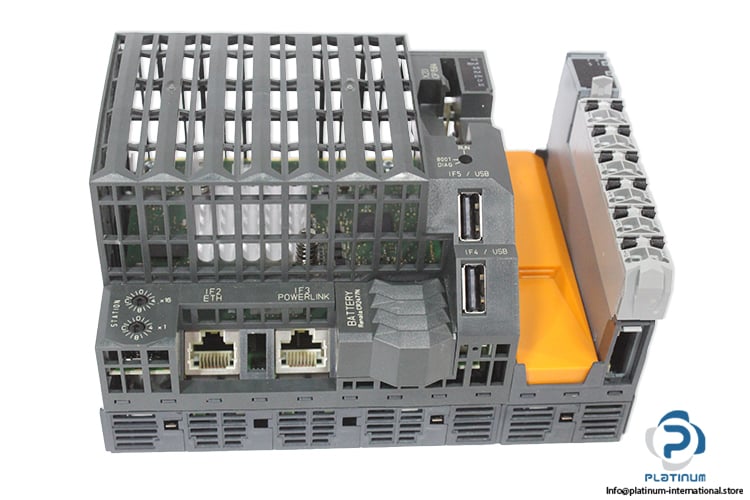

B&R X20 CP 1584 CPU Module
The B&R X20 CP 1584 is an industrial controller CPU module designed for high-performance automation systems within the B&R X20 system architecture. It integrates powerful processing capabilities with multiple communication interfaces, enabling reliable machine control and flexible industrial networking.
Manufacturer: B&R
Type: CPU Module
Model: X20 CP 1584

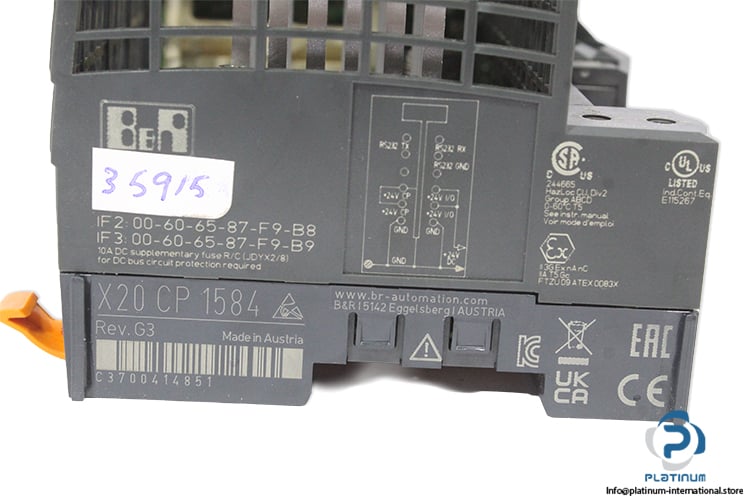

Code: C3700414851
Explosion Proof
| Revision | G3 |
| System | X20 |
| MAC Addresses | 00-60-65-87-F9-B8, 00-60-65-87-F9-B9 |
| Controller Slot | One Slot Available For X20 Communication Modules |
| Input Voltage | 24 VDC -15% / +20% |
| Input Current | Max. 1.5 A |
| Fuse | Integrated, Cannot Be Replaced |
| Nominal Output Voltage | 24 VDC |
| Permissible Contact Load | 10 A |
| Interfaces | 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link |
| System Module | Controller |
| B&R ID Code | 0xC370 |
| Cooling | Fanless |
| Status Indicators | CPU Function, Ethernet, POWERLINK, CompactFlash, Battery |
| Power Consumption Without Interface Module And USB | 8.6 W |
| Power Consumption For X2X Link Power Supply | 1.42 W |
| Power Consumption Internal I/O | 0.6 W |
| Standard Memory RAM | 256 MB DDR2 SDRAM |
| User RAM | 1 MB SRAM |
| Memory | 256 MB DDR2 SDRAM |
| Processor Type | Intel Atom E620T |
| Clock Frequency | 0.6 GHz |
| L1 Cache Data Code | 24 kB |
| L1 Cache Program Code | 32 kB |
| L2 Cache | 512 kB |
| Interface IF1 Signal | RS232 |
| Variant | Connection Via 12-Pin Terminal Block X20TB12 |
| Max. Distance | 900 m |
| Transfer Rate | Max. 115.2 kbit/s |

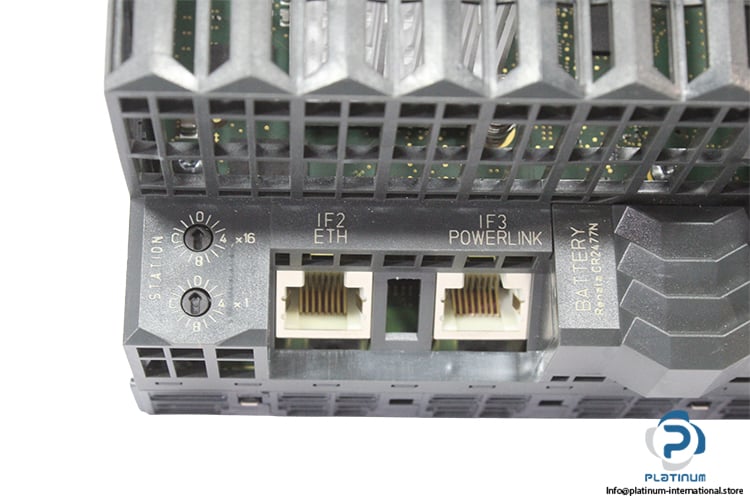

| Interface IF2 Signal | Ethernet |
| Variant | 1x RJ45 Shielded |
| Line Length | Max. 100 m Between 2 Stations (Segment Length) |
| Transfer Rate | 10/100/1000 Mbit/s |
| Interface IF3 Fieldbus | POWERLINK (V1/V2) Managing Or Controlled Node |
| Variant | 1x RJ45 Shielded |
| Line Length | Max. 100 m Between 2 Stations (Segment Length) |
| Transfer Rate | 100 Mbit/s |

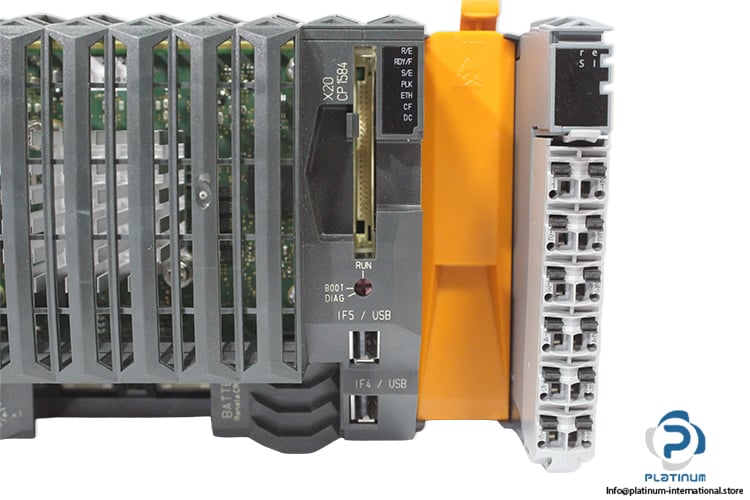

| Interface IF4 Type | USB 1.1/2.0 |
| Variant | Type A |
| Max. Output Current | 0.5 A |
| Interface IF5 Type | USB 1.1/2.0 |
| Variant | Type A |
| Max. Output Current | 0.5 A |
| Interface IF6 Fieldbus | X2X Link Master |
| Degree Of Protection Per EN 60529 | IP20 |
| Temperature Operation Horizontal Mounting Orientation | -25 To 60°C |
| Dimensions Width | 150 mm |
| Height | 99 mm |
| Depth | 85 mm |
