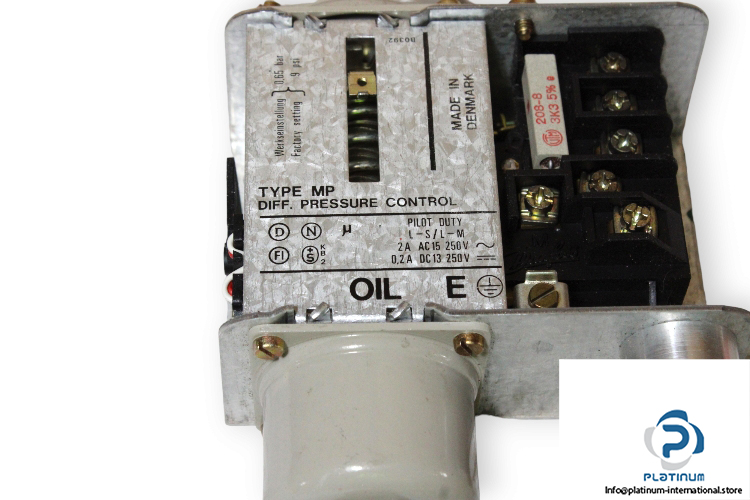

Danfoss MP 54 Differential Pressure Switch
В наличии1 единицаГотово к отправке
SKU
1008899Категория
Other Mechanical Equipment
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества
Manufacturer: DANFOSS
Type: Differential Pressure Switch
Model: MP 54
Max. Working Pressure: 17 bar
Adjustment: Cut out for falling pressure
Contact differential: 0.2 bar
Contact function: SPDT
Contact rating : AC=2 A, 250 V, DC=0.2 A, 240 V
Electrical conn.: Female
Electrical connection: Swivel cable connector
Enclosure rating IP: IP20
Equipment: Thermal time relay
Fixed Differential: 0.41 bar
Max. test pressure Pe: 22 bar
Max. Working Pressure: 17 bar
Operat. range LP side [bar] Pe [max]: 12 bar
Operat. range LP side [bar] Pe [min]: -1 bar
Pressure connection size: 1/4 in
Relay release time [s]: 120 s
