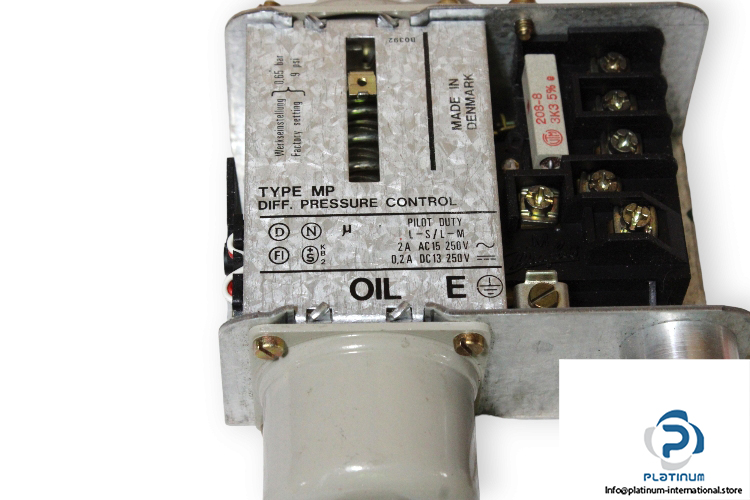

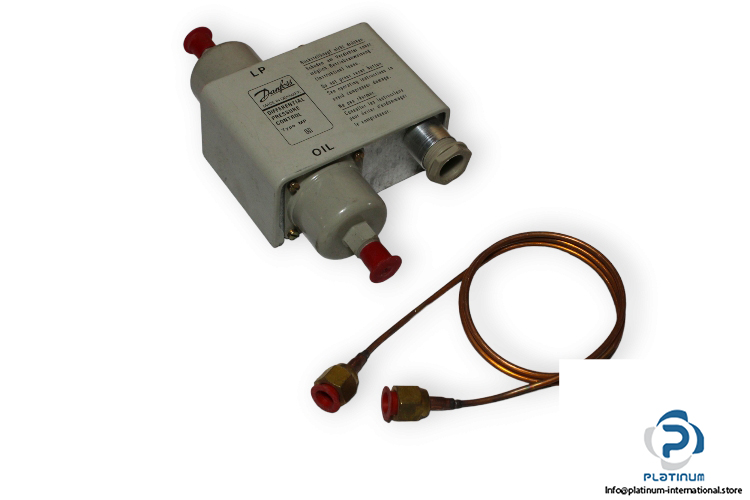

Danfoss MP 54 Differential Pressure Switch

Manufacturer: DANFOSS

Type: Differential Pressure Switch

Model: MP 54



Max. Working Pressure: 17 bar

Adjustment: Cut out for falling pressure

Contact differential: 0.2 bar

Contact function: SPDT

Contact rating : AC=2 A, 250 V, DC=0.2 A, 240 V

Electrical conn.: Female

Electrical connection: Swivel cable connector

Enclosure rating IP: IP20

Equipment: Thermal time relay

Fixed Differential: 0.41 bar

Max. test pressure Pe: 22 bar

Max. Working Pressure: 17 bar

Operat. range LP side [bar] Pe [max]: 12 bar

Operat. range LP side [bar] Pe [min]: -1 bar

Pressure connection size: 1/4 in

Relay release time [s]: 120 s
