Flowserve SID085D Pneumatic Actuator
Б/у
В наличии1 единицаГотово к отправке
Pneumatic Actuator
The Flowserve Automax MECAIR SID085D is a double acting pneumatic actuator with an aluminum body, IP66 protection, and ISO 5211 mounting for reliable industrial valve control.5211ActingActuatorAluminumAutomationAutomaxControlDoubleFlowserveIndustrialIP66ISOMecairPneumaticS100SID085DSuperNovaValve
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

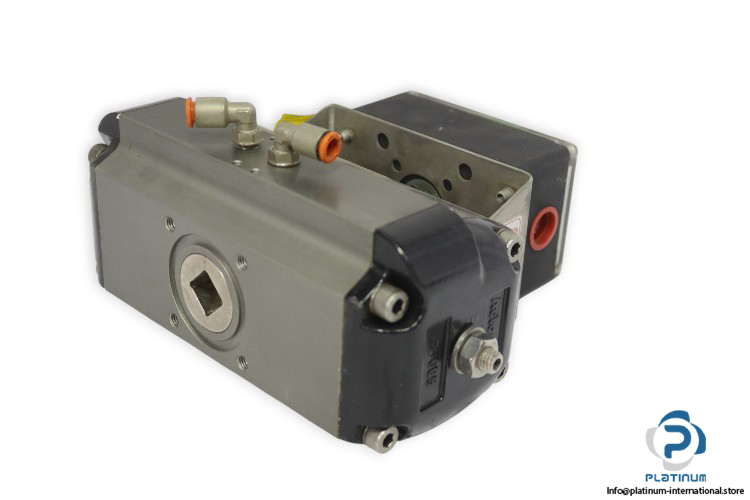

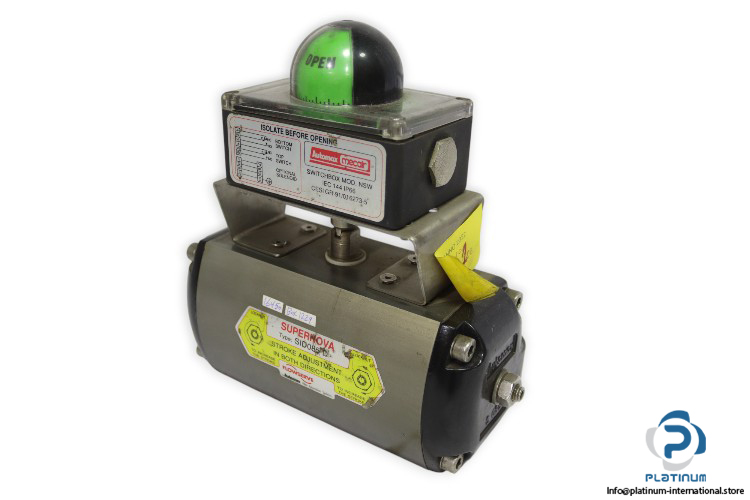

Flowserve Automax MECAIR SID085D Pneumatic Actuator
The Flowserve Automax MECAIR SID085D Pneumatic Actuator is engineered for precise valve control and long service life. Built with a durable aluminum body, it delivers reliable double acting performance under demanding industrial conditions.
Manufacturer: Flowserve / Automax MECAIR
Type: Pneumatic Actuator

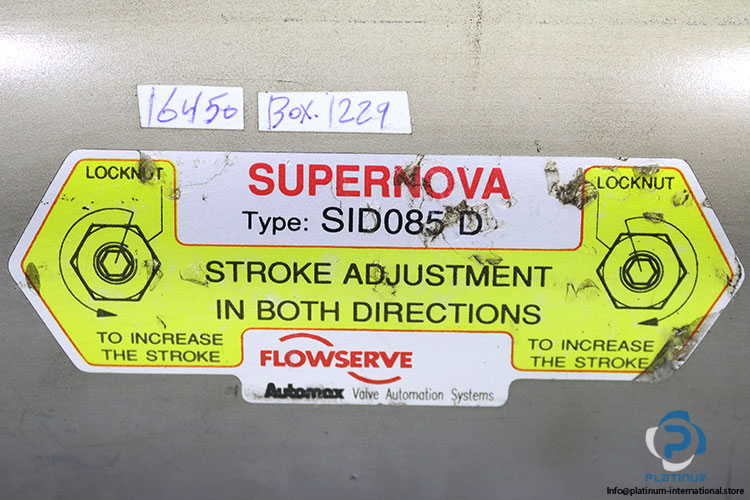

Model: SID085D

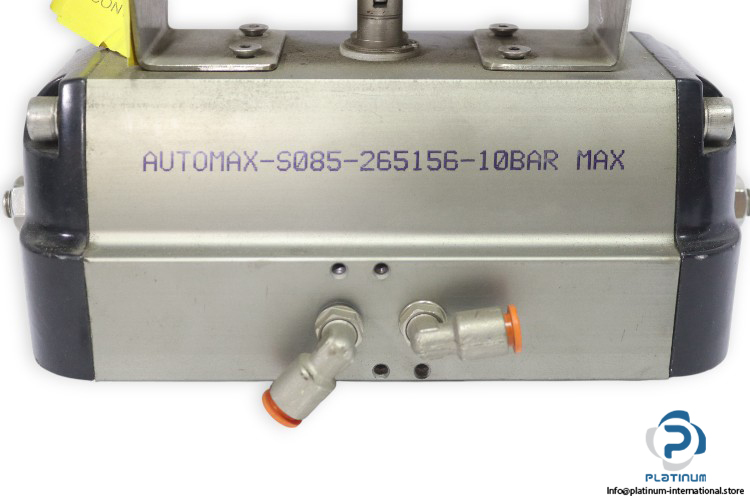

ID No.: S085-265156
Series: SuperNova S100
| Certification Code | CESI GR-91/016273-5 |
| Size | 085 |
| Actuation Type | Pneumatic “ Double Acting |
| Operating Pressure | Max 10 bar |
| Mounting Standard | IEC 144 / ISO 5211 / NAMUR / VDE 3845 |

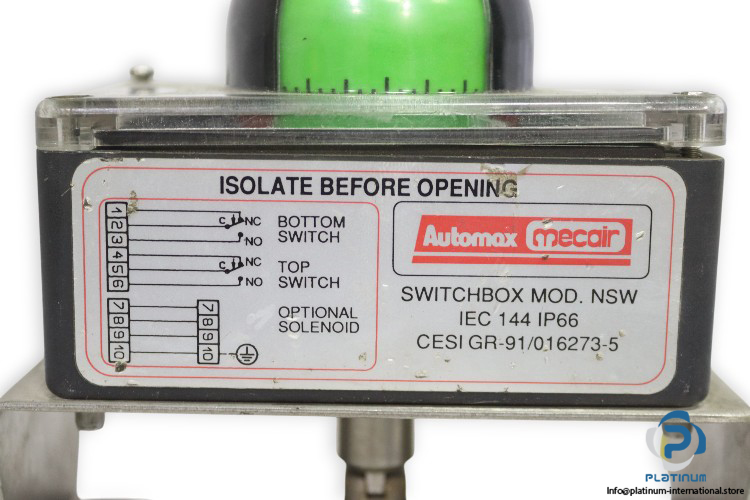

| Switchbox Rating | IP66 |
| Material | Aluminum Body |
| Operating Temperature | -20 °C to +80 °C |
| Air Ports | 1/8 inch NPT |

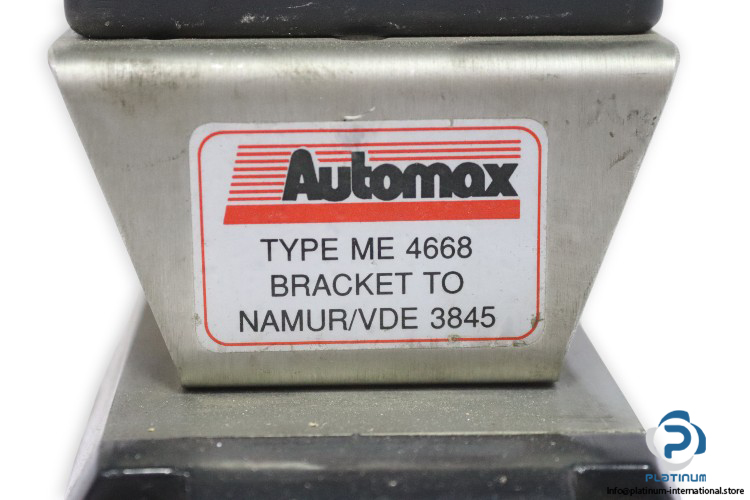

| Attached With | AUTOMAX ME 4668 Mounting Bracket Assembly |
