Hohner 30 3000 Incremental Encoder
В наличии2 единицыГотово к отправке
144,44$
INCREMENTAL ENCODER
Hohner 303000 incremental encoder from the 30 series with 12 mm shaft, 90 mm diameter, 5 PPR output, NPN 11“30 V DC, IP65 protection, and long bearing lifetime.122303030005ControlDOEncoderHohnerIncrementalIndustrialIP65mmMotionNPNOutputPPRSeriesshaftstainlessSteel
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

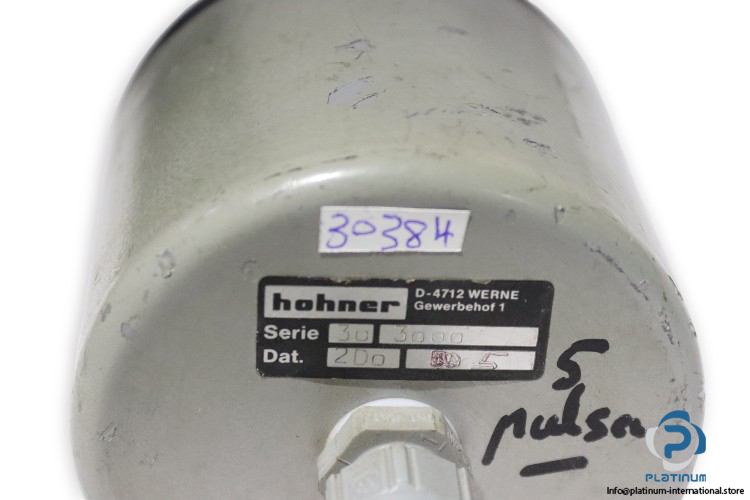

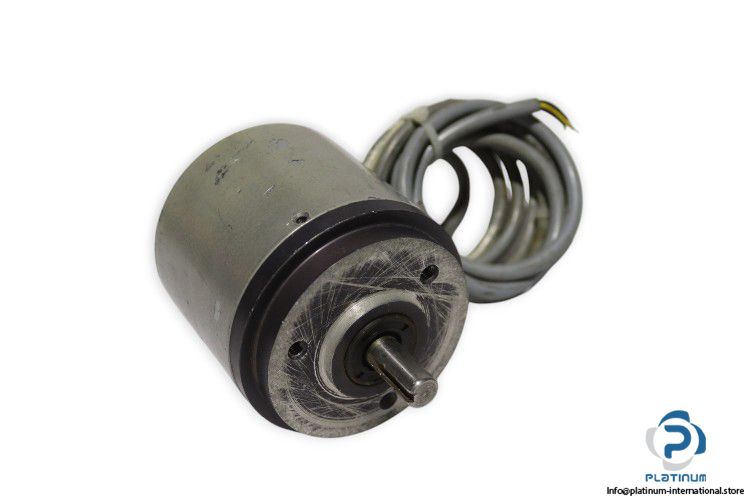

Hohner 303000 Incremental Encoder
The Hohner 303000 is a precision incremental encoder from the 30 series, designed for reliable performance in motion control and industrial automation. Built with durable materials, IP65 protection, and long bearing life, it ensures accurate signal output and extended service life.
Manufacturer: Hohner
Type: Incremental Encoder
Model: 303000
Series: 30
Code: 2 Do
| Shaft | 12 mm |
| External Diameter | 90 mm |
| Protection | IP65 |
| Output Signal | A |
| Pulses | 5 PPR |
| Temperature Range | -20 to 80 °C |
| Connection | Axial cable |
| Output Circuits | NPN 5/24 V (11 to 30 V DC) |
| Current | 40 mA |
| Length of Cable | Up to 50 m |
| No. of Revolutions Permitted | 6000 rpm |
| Materials | Cover: Aluminium, Housing: Aluminium, Shaft: Stainless Steel |
| Bearings Lifetime | 1 × 10^10 revolutions |
