IFM IF5493 Inductive Sensor

Name: IFM IF5493 INDUCTIVE SENSOR
SKU: 552095
Availability: LimitedAvailability








Новинка

В наличии2 единицыГотово к отправке

SKU

552095

Категория

Sensors

Состояние

Новинка

Б/у В наличии

Этот продукт также доступен в б/у варианте

Посмотреть использованную версию →

Огромный ассортимент

Глобальная доставка

Экспертная поддержка

Гарантия качества

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IF5493

MRN: IFK3004-BPOG/US

Sensing range: 4 mm

Real sensing range: 4 ± 10 % mm

Operating Distance: 0 … 3.24 mm

Operating Voltage: 10 … 36 VDC

Switching output current: 200 mA DC

Current Consumption: 10 mA

Switching frequency: 300 Hz DC

Electrical Design: PNP

Output Function: Normally Open

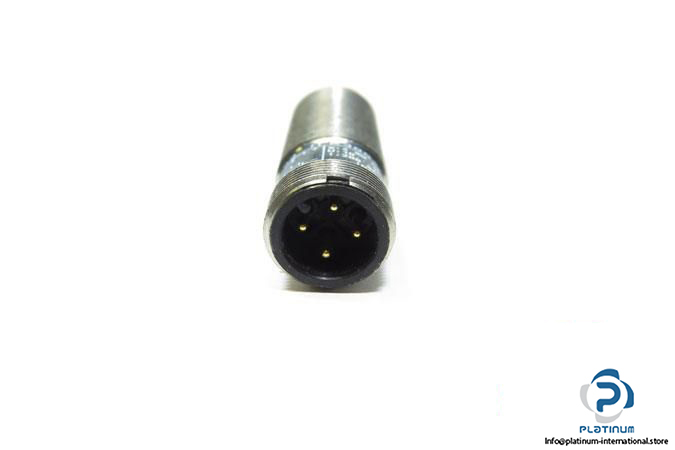

Connection type: M12

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 12, 59 mm

Material: Brass white bronze coated; sensing face: PBT orange

Mounting: non-flush mountable

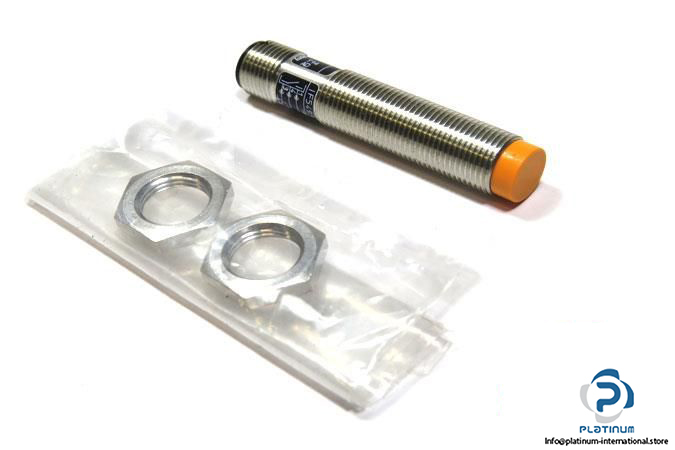

Supplied accessories: 2 lock nuts

Weight: 26.6 g

Condition: New
