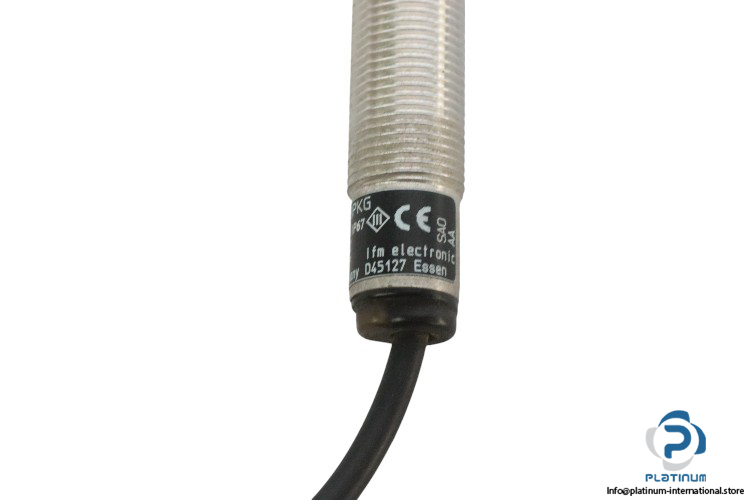

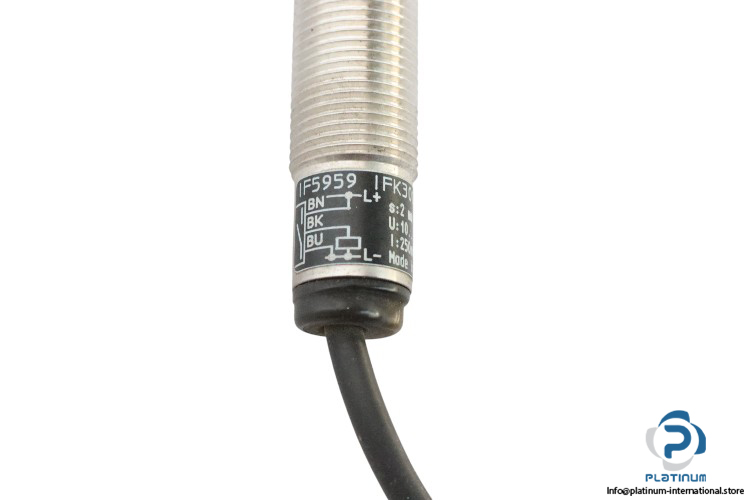

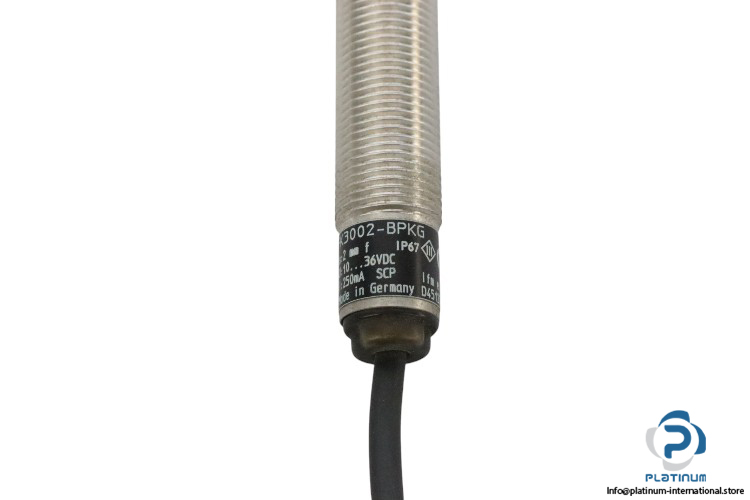

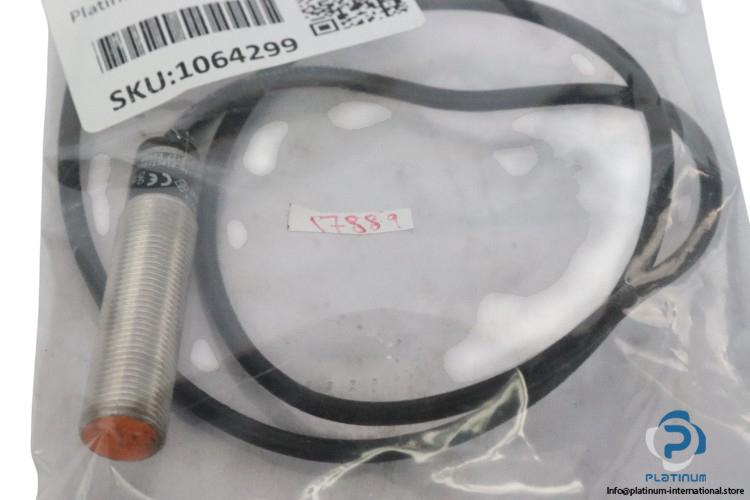

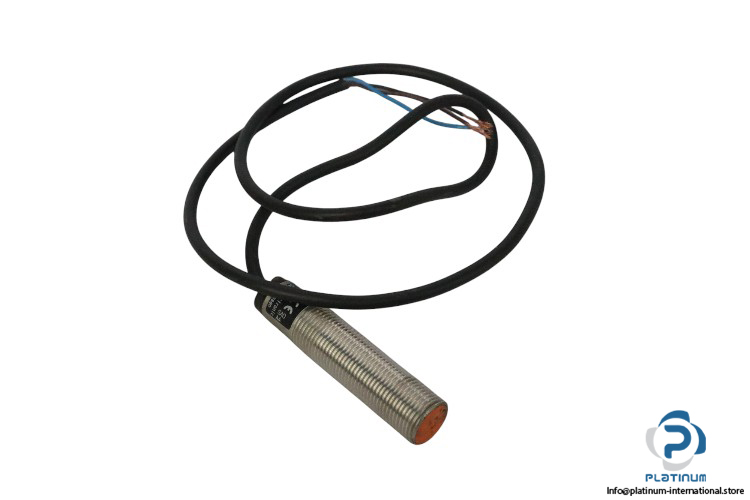

IFM IFK3002-BPKG/IE-KAB Inductive Sensor
Индуктивный датчик IFM IFK3002-BPKG/IE-KAB предлагает диапазон срабатывания 2 мм, защиту IP67, выход PNP и прочный корпус с резьбой, разработанный для надежного обнаружения металлов в промышленных условиях.
IFM IFK3002-BPKG/IE-KAB Inductive Sensor
The IFM IFK3002-BPKG/IE-KAB Inductive Sensor is a high-precision sensor designed for reliable detection in industrial automation systems. It provides excellent performance with a wide range of metals and robust protection against environmental factors, making it an ideal choice for diverse sensing applications.
- Manufacturer: IFM
- Type: Inductive Sensor
- Model: IFK3002-BPKG/IE-KAB
- Part No.: IF5959
Technical Specifications:
- Operating Voltage: 10…36V DC
- Current Consumption: 15 mA (at 36 V)
- Protection Class: II
- Electrical Design: PNP
- Output Function: Normally open
- Type of Short-Circuit Protection: Pulsed
- Connection: Cable, 2 m, PVC, 3 x 0.14 mm²
- Sensing Range: 2 mm
- Housing: Threaded type
- Correction Factor: Steel: 1 / Stainless steel: 0.7 / Brass: 0.5 / Aluminium: 0.4 / Copper: 0.3
- Ambient Temperature: -25…80°C
- Degree of Protection: IP 67
- Dimensions: M12 x 1 / L = 54 mm
The IFM IFK3002-BPKG/IE-KAB Inductive Sensor is designed for reliable metal detection across a wide range of materials with its adjustable correction factors. With a sensing range of 2 mm and protection class IP67, it ensures durability in harsh environments. Its threaded housing and compact size make it easy to integrate into various industrial systems.
