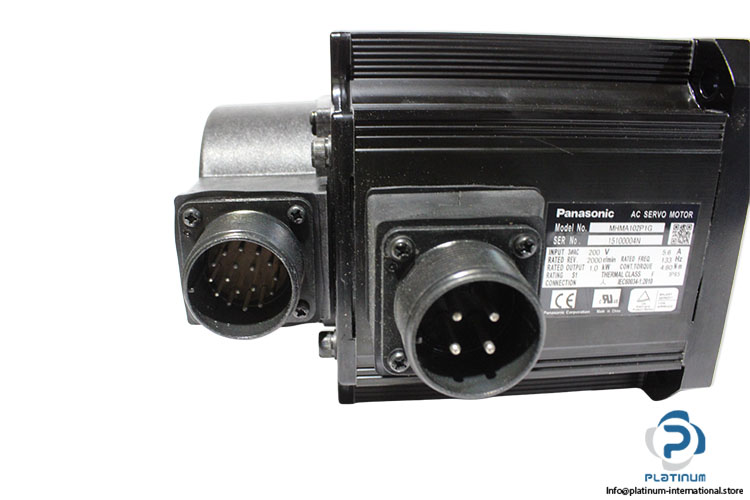

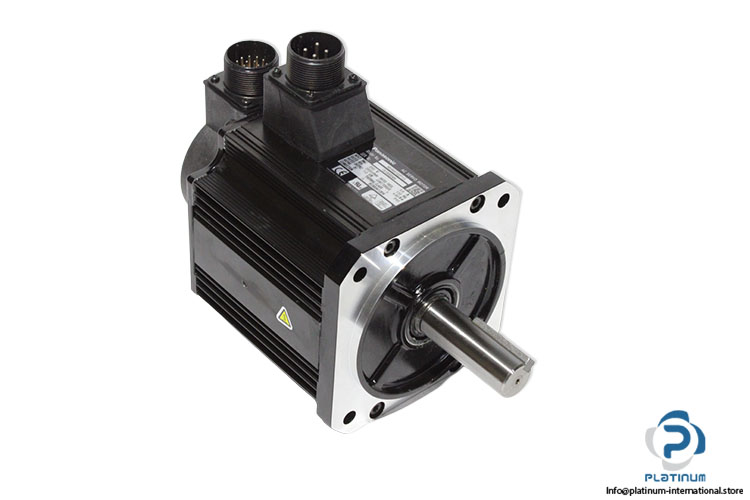

Panasonic MHMA102P1G AC Servomotor
Новинка
В наличии2 единицыГотово к отправке
888,88$
AC Servo Motor The PANASONIC MHMA102P1G is a high inertia AC servo motor from the MINAS A4 series, delivering 1 kW power, 2000 rpm speed, and precise torque control with IP65 protection.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

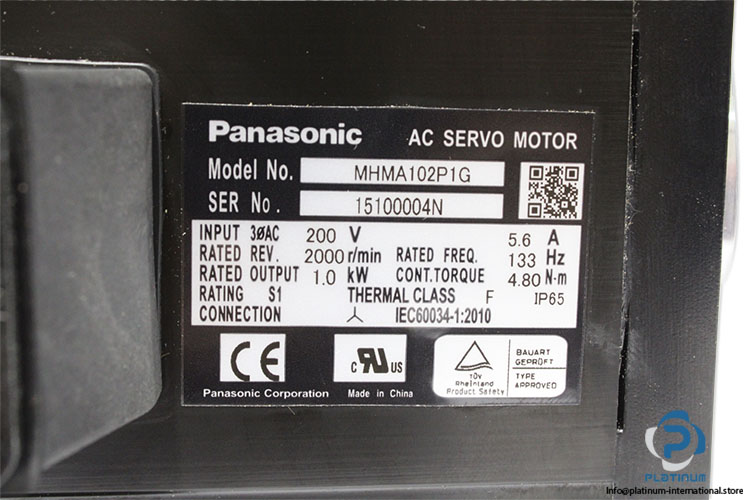

| SN. | 15100004N |
| Family Name | MINAS A4 Family |
| Series | MHMA |
| Frequency [Hz] | 133 hz |
| Rated Power [kW] | 1 |
| Rated Voltage [V] | 200 |
| Rated Current [A] | 5.6 |
| Rated Speed [rpm] | 2000 |
| Duty | S1 |
| thermal class | f |
| Protection Class | ip65 |
| Standard | IEC60034-1 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 130 mm sq. |
| Flange size (mm) | 130 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Rated torque (N · m) | 4.8 |
| Momentary Max. peak torque (N · m) | 14.4 |
| Max. current [Reference value] (A 0-p) | 24.0 |
| CONNECTION | circular connector |
| Stock key | jo-004 |
| Condition | New |
| SKU | 1096865 |
| Weight | 9,5 |
