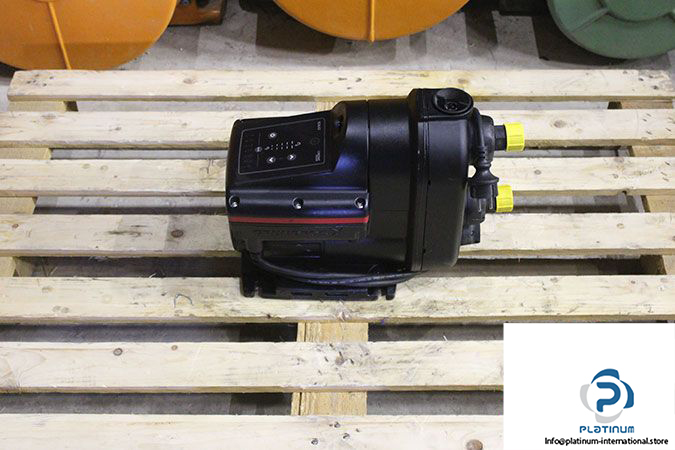

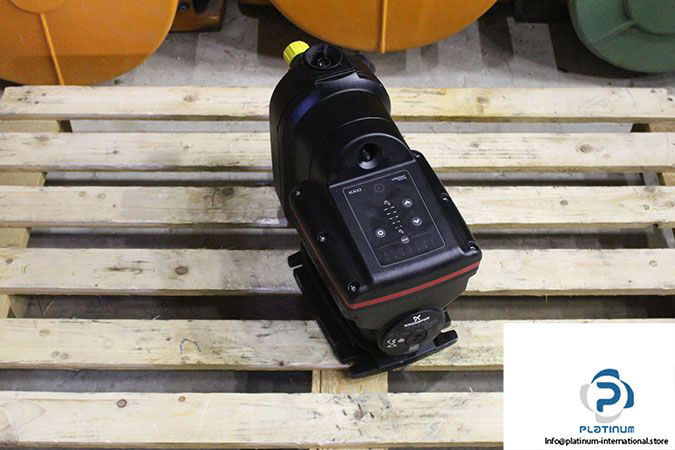

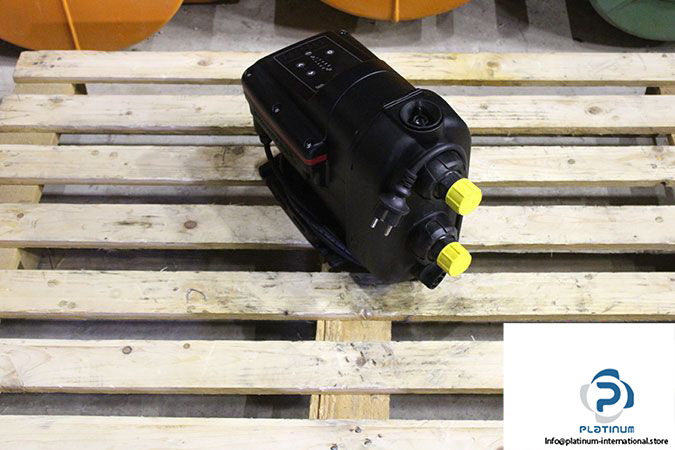

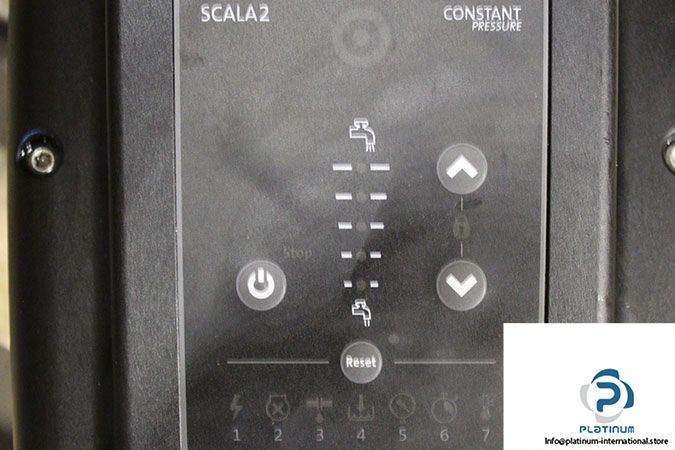

Grundfos SCALA2 3-45 A Pump

Manufacturer: Grundfos

Type: Pumps

Model: SCALA2 3-45A

Model: A

Max. Hight [m]: 45

Min. Hight [m]: 16

Rated Hight [m]: 27

Rated Flow Rate [m³/h]: 3

Max. Operating Pressure [bar]: 10

Max. Permissible Inlet Pressure [bar]: 6

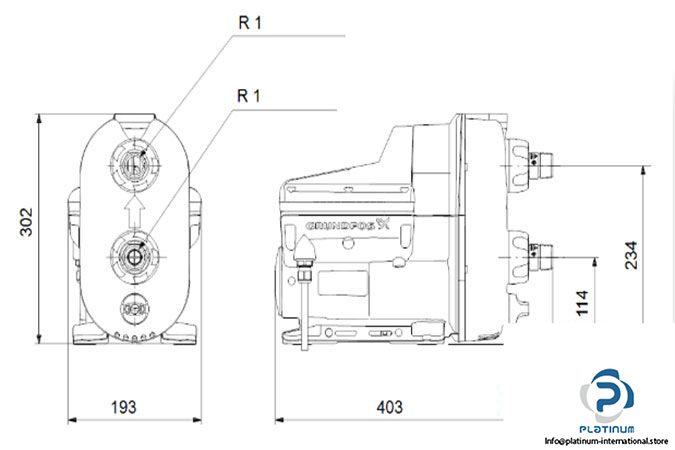

Size of Inlet/Outlet Connection [in]: 1″

Min. Current [A]: 0.01

Max. Current [A]: 2.8

Min. Power [W]: 2

Power Input [W]: 550

Rated Power [kW]: 0.45

Motor Voltage [V]: 200-240

Frequency [Hz]: 50/60

Ambient Temperature [°C]: 0…55

Insulation Class: F
