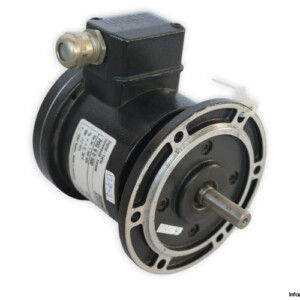

Hubner Berlin OG 9 D 500 Incremental Encoder

Name: HUBNER BERLIN OG 9 D 500 INCREMENTAL ENCODER
Brand: HUBNER BERLIN
SKU: 1003642
Availability: LimitedAvailability

hubner-berlin-og-9-d-500-incremental-encoder-1

hubner-berlin-og-9-d-500-incremental-encoder-2

New

In stock1 unitReady to ship

INCREMENTAL ENCODER

Hubner Berlin OG 9 D 500 is a high-precision incremental encoder with solid shaft, 500 PPR resolution, HTL signal output, and terminal box connection, built for industrial reliability.

Manufacturer

HUBNER BERLIN

SKU

1003642

Category

Rotary Encoders

Condition

New

500 9 Berlin Box D Encoder HTL Hubner Incremental Industrial IP55 OG Output Position PPR shaft Solid terminal

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

HUBNER BERLIN OG 9 D 500 INCREMENTAL ENCODER

The Hubner Berlin OG 9 D 500 is a robust incremental encoder engineered for precision, durability, and efficient signal output in demanding industrial environments. Ideal for applications requiring accurate position and speed detection.

Manufacturer: Hubner Berlin

Type: Incremental Encoder

Model: OG 9 D 500

Serial No.: 1 199 460

Size (Flange)	115 mm
Flange Design	EURO flange B10
Shaft Type	Solid Shaft
Shaft Diameter	11 mm
Voltage Supply	9 / 30 VDC
Resolution	500 Pulse per Revolution (PPR)
Max. Operating Speed	1200 rpm
Signal Output	HTL
Connection Type	Terminal Box
Switching Frequency	120 kHz
Protection Class	IP 55
Temperature Range	-30 / 100°C
