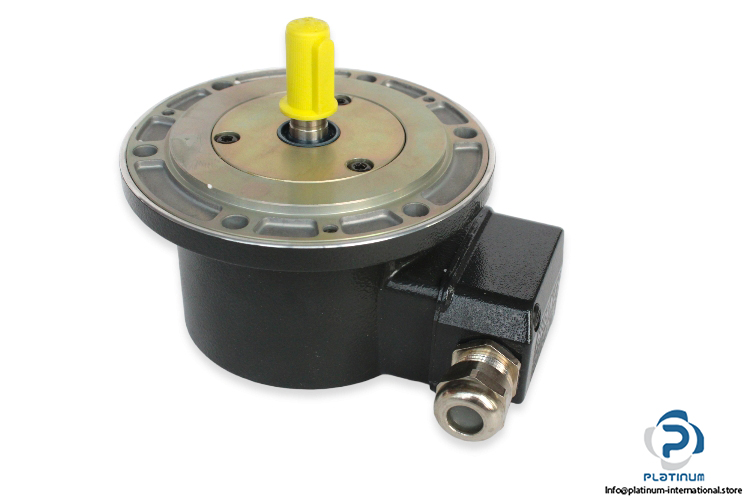

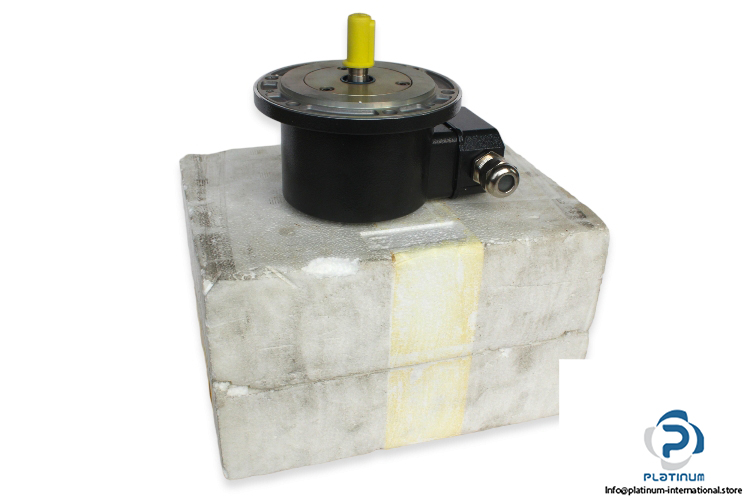

Hubner Berlin OG 9 D 500 Incremental Encoder

Name: HUBNER BERLIN OG 9 D 500 INCREMENTAL ENCODER
Brand: HUBNER BERLIN
SKU: 1003642
Availability: LimitedAvailability

hubner-berlin-og-9-d-500-incremental-encoder-1

hubner-berlin-og-9-d-500-incremental-encoder-2

Nouveau

En stock1 unitéPrêt à être expédié

CODEUR INCRÉMENTAL Hubner Berlin OG 9 D 500 est un codeur incrémental haute précision avec arbre solide, résolution 500 PPR, sortie signal HTL et connexion boîte à bornes, conçu pour la fiabilité industrielle.

Fabricant

HUBNER BERLIN

SKU

1003642

Catégorie

Rotary Encoders

Condition

Nouveau

500 9 Berlin Box D Encoder HTL Hubner Incremental Industrial IP55 OG Output Position PPR shaft Solid terminal

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

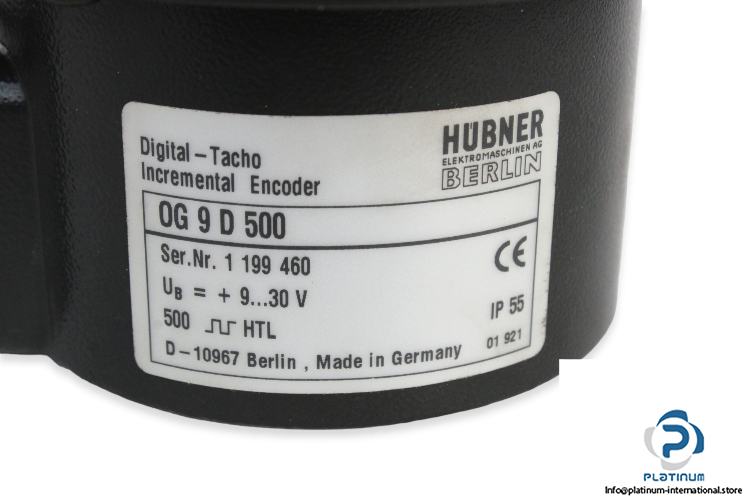

HUBNER BERLIN OG 9 D 500 INCREMENTAL ENCODER

The Hubner Berlin OG 9 D 500 is a robust incremental encoder engineered for precision, durability, and efficient signal output in demanding industrial environments. Ideal for applications requiring accurate position and speed detection.

Manufacturer: Hubner Berlin

Type: Incremental Encoder

Model: OG 9 D 500

Serial No.: 1 199 460

Size (Flange)	115 mm
Flange Design	EURO flange B10
Shaft Type	Solid Shaft
Shaft Diameter	11 mm
Voltage Supply	9 / 30 VDC
Resolution	500 Pulse per Revolution (PPR)
Max. Operating Speed	1200 rpm
Signal Output	HTL
Connection Type	Terminal Box
Switching Frequency	120 kHz
Protection Class	IP 55
Temperature Range	-30 / 100°C
