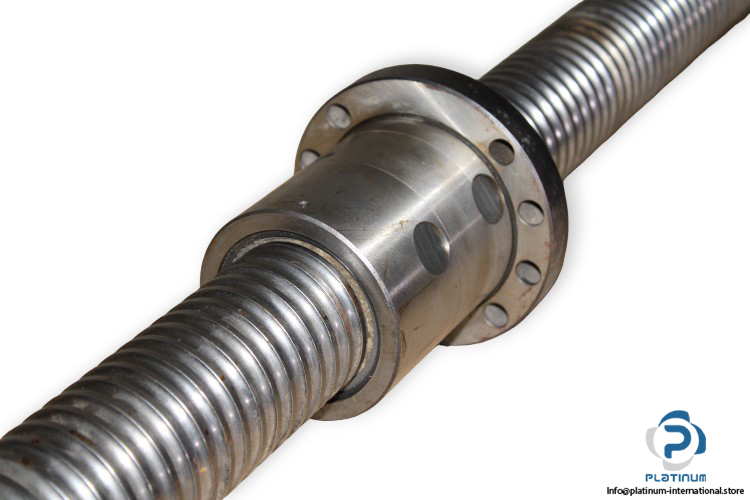

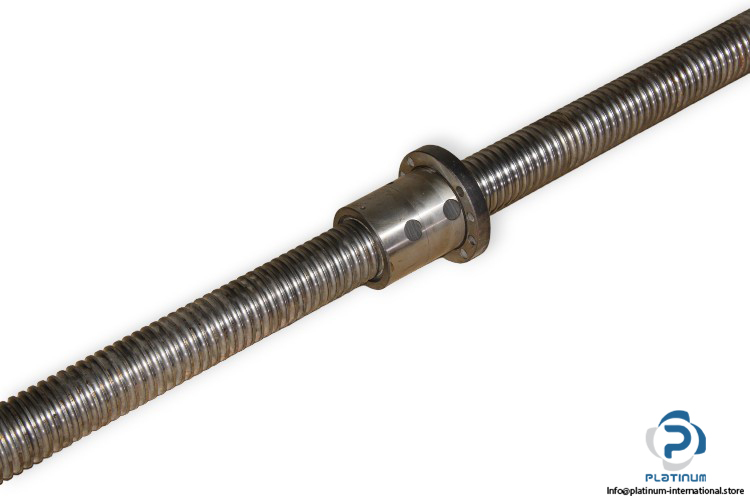

Name: 63-10L BALL SCREW
SKU: 1042251
Availability: LimitedAvailability

Type: Flanged nut ball screw
Model: 63-10 L

Size: 63
Nominal Diameter: 63 mm
Lead P: 10 mm
Direction of Lead: Lift-Hand Thread
Threaded length: 1360 mm
Total screw length: 2140 mm

Specification	Value
Weight	46,45 kg
Condition	Used
Type of Product	Flanged Nut Ball Screw
Shelf No.	240805
Flange Diameter [mm]	125 mm
Nut Outer Diameter [mm]	90 mm
Flange Thickness [mm]	18 mm
Nut Length [mm]	130 mm
Size	63 x 10 L

Price	On Request
Stock	1 In stock
Category	Screw & Ball Screws
Condition	Used
SKU	1042251

Weight	46,45 kg
Condition	Used
Type of Product	Flanged Nut Ball Screw
Shelf No.	240805
Flange Diameter [mm]	125 mm
Nut Outer Diameter [mm]	90 mm
Flange Thickness [mm]	18 mm
Nut Length [mm]	130 mm
Size	63 x 10 L

63-10L Ball Screw
