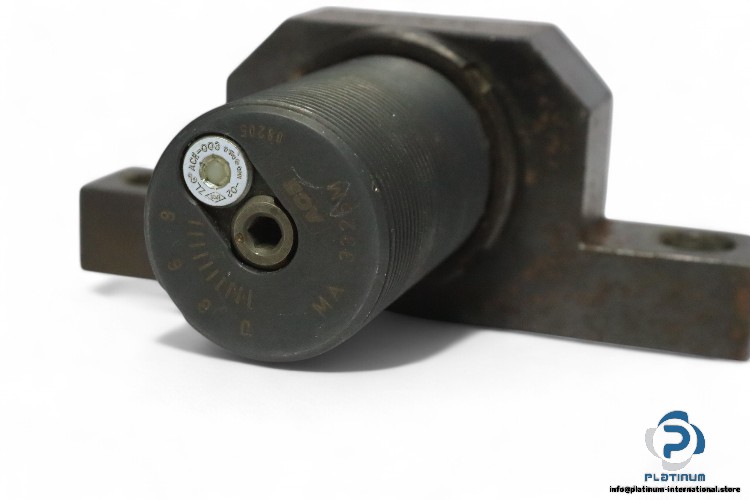

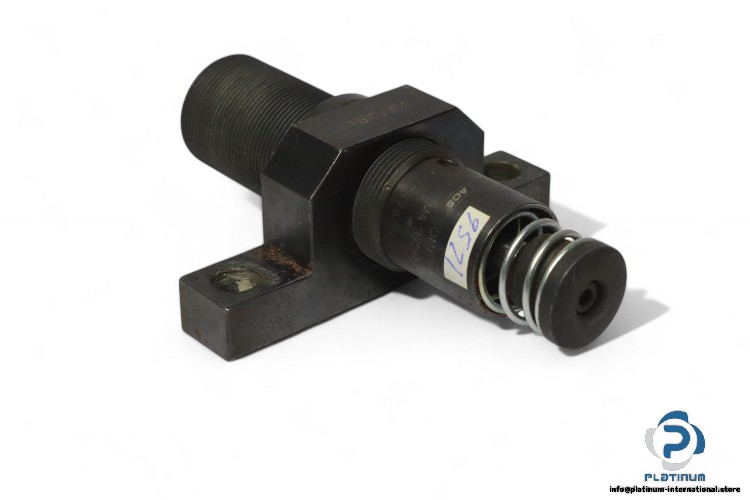

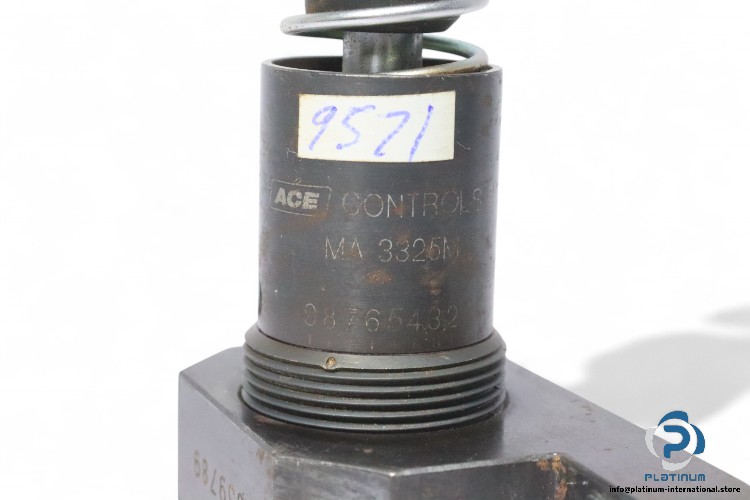

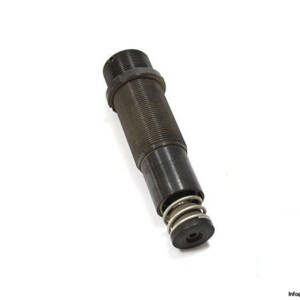

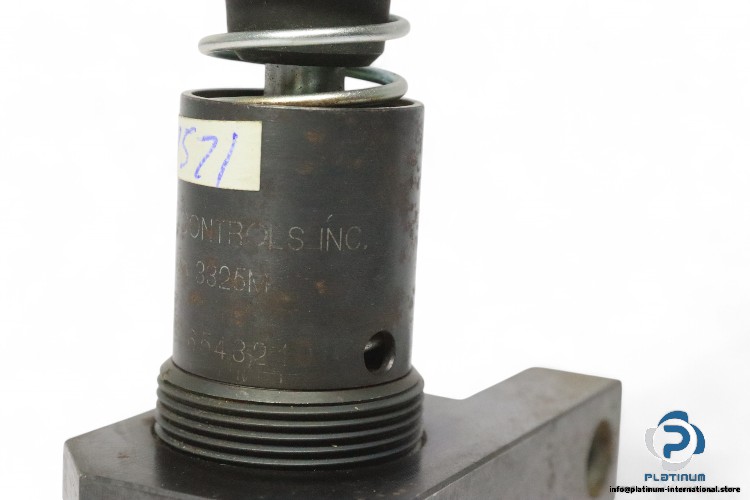

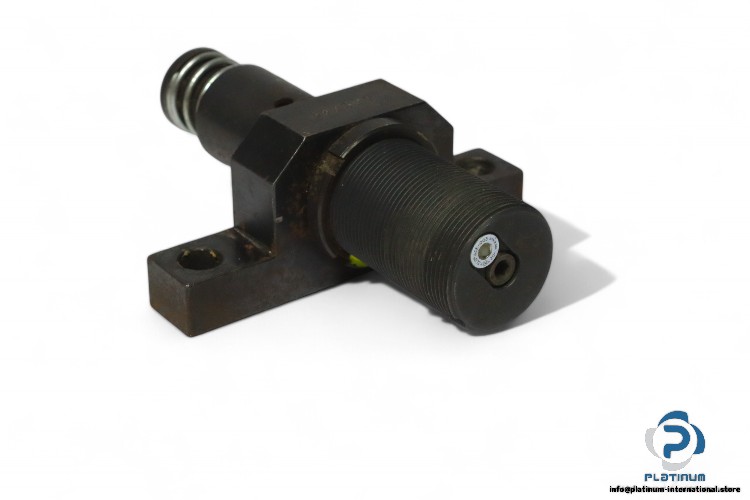

ACE Controls MA 3325M Shock Absorber

ACE Controls Adjustable Shock Absorber MA3325M

Manufacturer: ACE Controls

Type: Adjustable Shock Absorber

Series: MA

Model: MA3325M

The ACE Controls Adjustable Shock Absorber MA3325M is a high-performance solution for managing energy and motion in industrial applications. This precision-engineered shock absorber is designed for optimal performance, durability, and reliability. With adjustable damping, it offers flexibility for various operational requirements.

Technical Specifications:

• Button Options: Steel
• Minimum Return Force: 10.3 lbs
• Maximum Energy Capacity Per Cycle: 1,500 in-lbs
• Maximum Return Force: 19.8 lbs
• Return Time: 0.03 seconds
• Stroke Length: 0.91 in (23.1 mm)
• Diameter and Step for Threaded Surface: M33 x 1.5
• Temperature Range: 10 °F to 150 °F

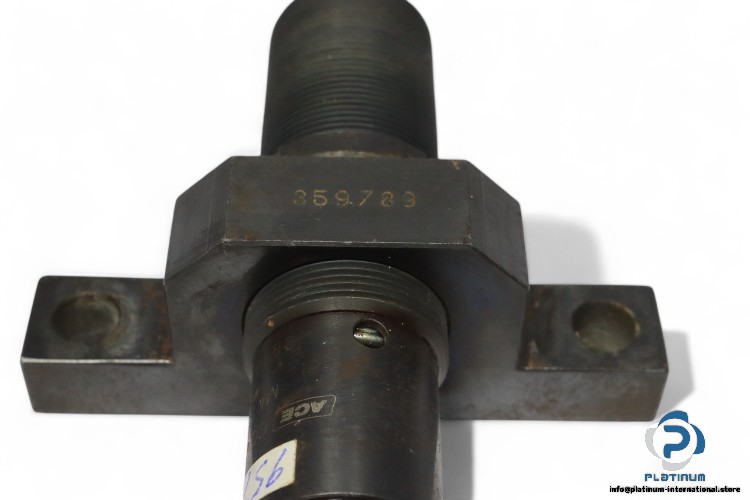

• Attached with: ACE Controls 359789

Designed to perform efficiently in a wide temperature range and built with durable materials, this shock absorber is ideal for managing impacts, vibrations, and energy dissipation in mechanical systems. Its adjustable feature makes it versatile for various industrial setups.
