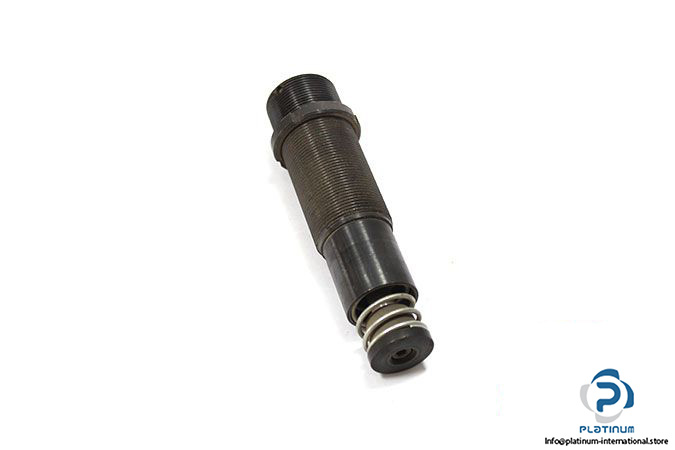

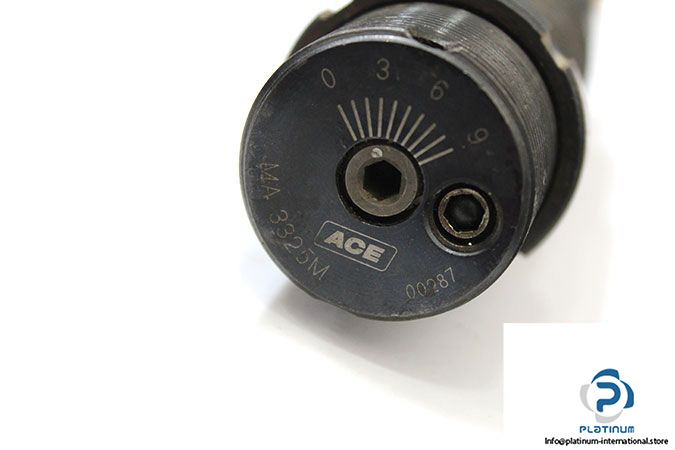

ACE Controls MA 3325M Shock Absorber
ACE Controls verstellbarer Stoßdämpfer MA3325M „Präzisionsgefertigter Stoßdämpfer mit 1.500 in-lbs Energiekapazität, einstellbarer Dämpfung und robustem Stahlknopf. Ideal für industrielle Systeme.“
ACE Controls Adjustable Shock Absorber MA3325M
Manufacturer: ACE Controls
Type: Adjustable Shock Absorber
Series: MA
Model: MA3325M
The ACE Controls Adjustable Shock Absorber MA3325M is designed to provide precise energy absorption and reliable performance in industrial and mechanical applications. This versatile shock absorber features adjustable damping to accommodate varying impact loads, ensuring optimal performance and extended equipment life.
Technical Specifications:
- Button Options: Steel
- Minimum Return Force: 10.3 lbs
- Maximum Return Force: 19.8 lbs
- Max. Energy Capacity Per Cycle: 1,500 in-lbs
- Return Time: 0.03 seconds
- Stroke Length: 0.91 inches (23.1 mm)
- Diameter and Step for Threaded Surface: M33 x 1.5
- Temperature Range: 10 °F to 150 °F
Engineered for demanding applications, the MA3325M ensures efficient energy management and reduces wear and tear on machinery. Its adjustable damping capability makes it suitable for a wide range of operating conditions, providing precision and flexibility in industrial systems.
