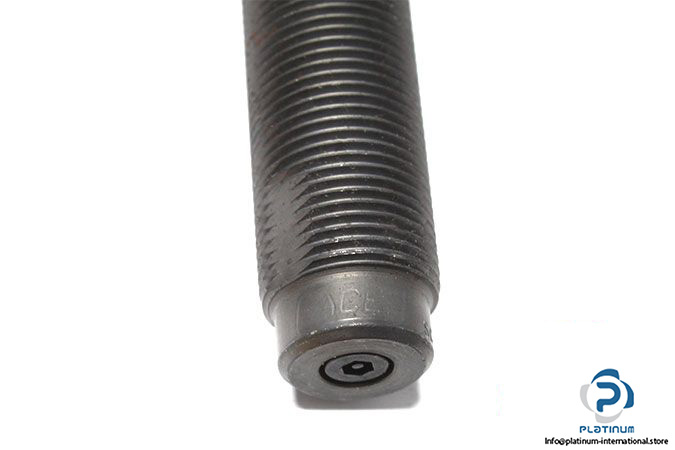

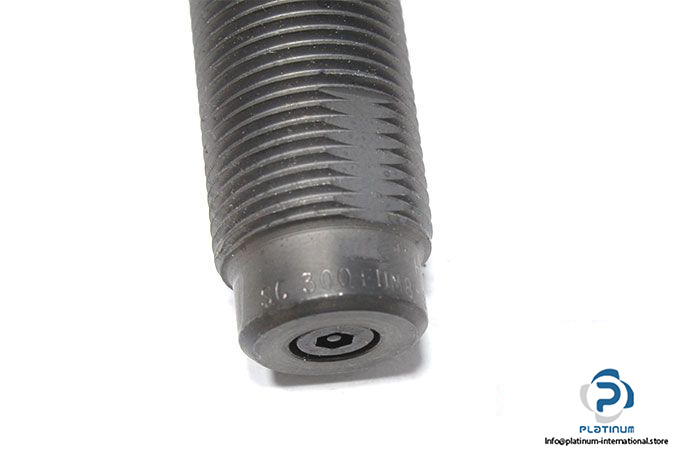

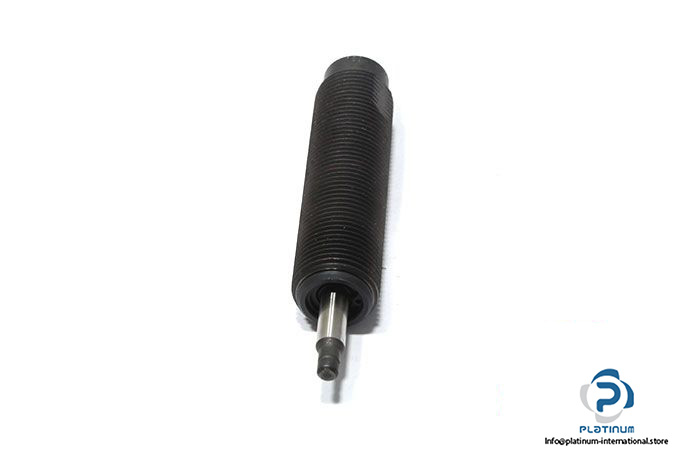

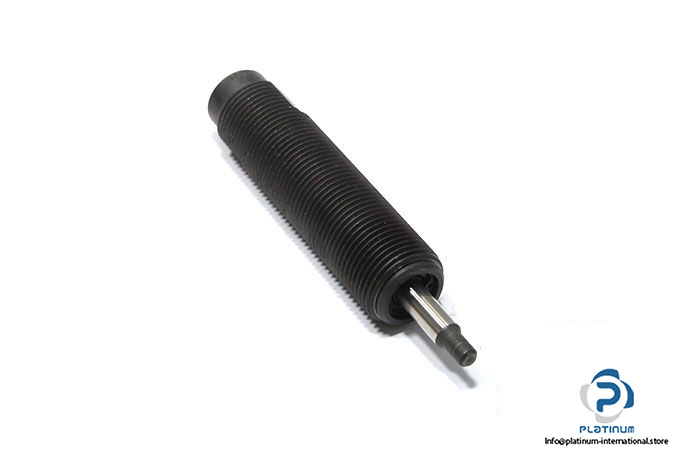

ACE Controls SC 300 EUM8-880 Shock Absorber

Manufacturer: ACE CONTROLS

Type: SHOCK ABSORBER

Model: SC300 EUM8-880

Energy capacity: 650 in-lbs/cycle

min. Effective weight: 300 lbs

max. Effective weight: 1,500 lbs

min. Return Force: 1.70 lbs

max. Return Force: 4.00 lbs

Return Time: 0,2 s

max. Side Load Angle: 5 °

Impact velocity range: 0.30 ft/sec to 12.0 ft/sec

Operating temperature range: 32 °F to 150 °F

Material

Outer body: Steel corrosion-resistant coating

Piston rod: Hardened stainless steel

Stroke Length: 15 mm

Rod Diameter: 6.4 mm

Total length: 101.3 mm

Diameter and Step for Threaded Surface: M20 X1.5

Temperature Range: -10 ….. 80 ^°C

Weight: 0.15 kg
