Alfa ALFA1600APB Filter AND FAN Unit
Neu
Auf Lager2 EinheitenVersandbereit
Filter and Fan Unit
Alfa ALFA1600APB Filter and Fan Unit operates at 230 V AC with 22 W nominal output. Includes Sunon DP200A Axial Fan, providing 55 m³/h airflow and IP54 protection for industrial ventilation and filtration applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

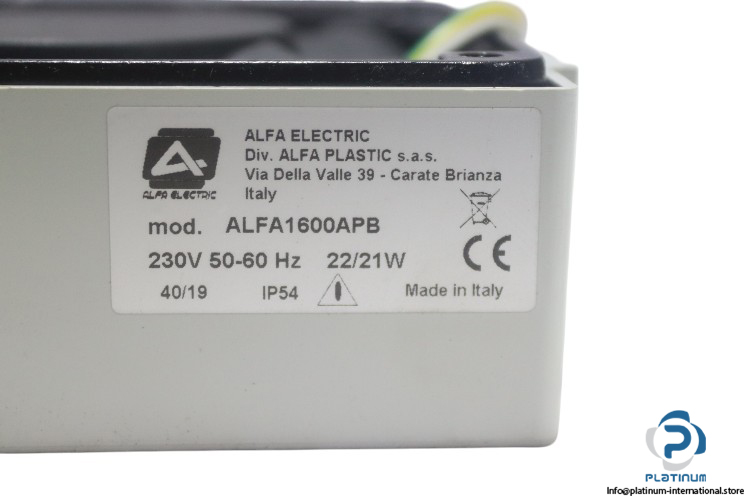

Alfa Filter and Fan Unit ALFA1600APB
The Alfa Filter and Fan Unit ALFA1600APB is designed to provide efficient air filtration and ventilation. With a compact design and reliable performance, it operates with a nominal output of 22 W at 230 V AC rated voltage.
Manufacturer: Alfa
Model: ALFA1600APB
Type: Filter and Fan Unit
Sunon DP200A Axial Fan
Technical Information:
| Rated Voltage | 230 V AC |
| Frequency | 50 to 60 Hz |
| Current | 0.12/ 0.10 A |
| Nominal Output | 22/21 W |
| Dimension | 130 x 130 mm |
| Attachment | SUNON DP200A AXIAL FAN |
| Frame Shape | Square Frame |
| Dimension | 120x120x38 mm |
| No. of Blades | 3 |
| Direction | Push |
| Bearing | Ball bearing |
| Rated Voltage | 220 to 240 V |
| Frequency | 50/60 Hz |
| Current | 0.12/0.14 A |
| Power | 22/21 W |
| Flow Rate | 55 m³/h |
| Inverter | Without |
| Blade Material/Fan Housing Material | Plastic/metal |
| IP Rate | IP54 |
| No. of Wires | 3 |
