Alldos 221-27-10013 Dosing Pump
Elektromechanische Dosierpumpe Alldos 221-27-10013 mit einer Förderleistung von 27 L/h und einem Druck von 10 bar, ausgestattet mit Siemens 1LA7060 Drehstrommotor für zuverlässige industrielle Dosieranwendungen. Ideal für chemische Dosiersysteme, Wasseraufbereitung und präzise Fluidsteuerungsinstallationen.
Alldos 221-27-10013 Electro Mechanical Dosing Pump

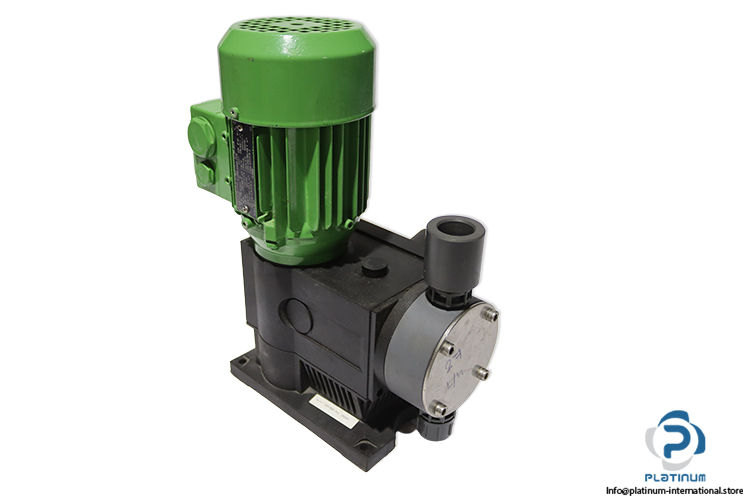

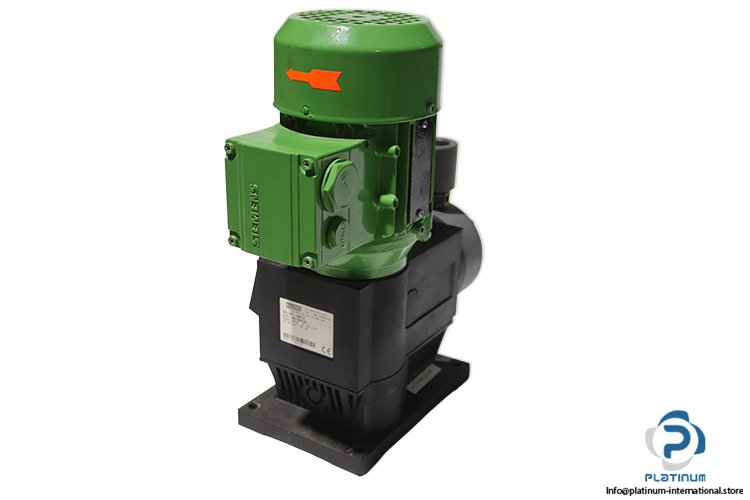

The Alldos 221-27-10013 is an electro mechanical dosing pump designed for precise and controlled fluid dosing in industrial applications. The unit is supplied with a Siemens three-phase AC motor for reliable and efficient operation.
Manufacturer: Alldos
Type: Electro Mechanical Dosing Pump

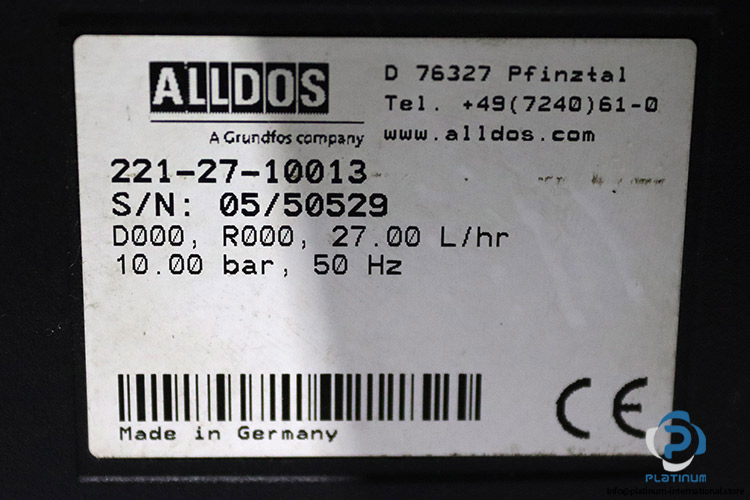

Model: 221-27-10013
Serial No.: 05/50529

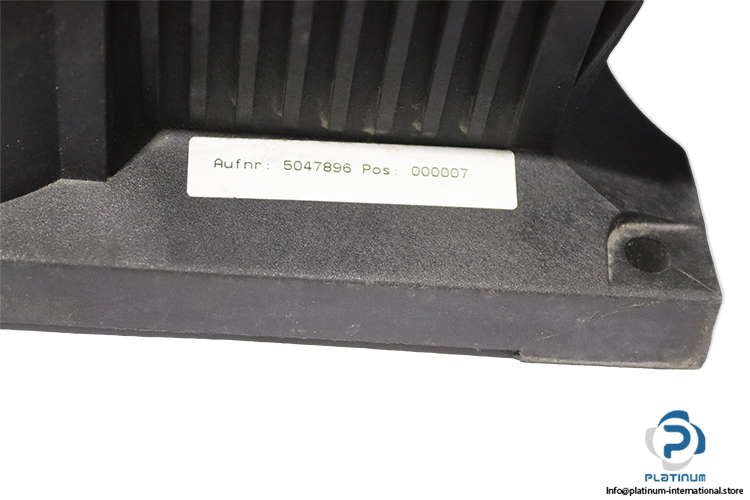

Code: 5047896 000007
Attachment
Electrical Data “ 50 Hz
Electrical Data “ 60 Hz
Motor Specifications
| Frequency | 50 Hz |
| Rated Flow Rate | 27.00 L/hr |
| Maximum Pressure | 10 bar |
| Additional Marking | D000, R000 |
| CE Marking | Present |

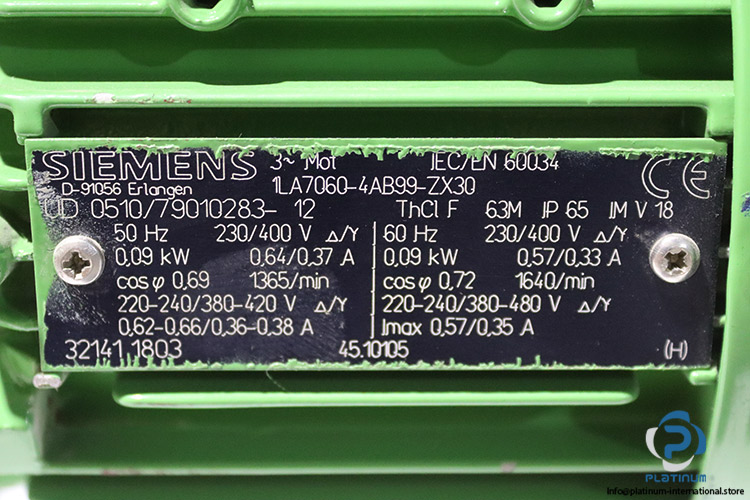

| Motor Manufacturer | Siemens |
| Motor Type | Three-Phase AC Motor |
| MNR | 1LA7060-4AB99-ZX30 |
| Code | 321411803 / 45.10105 |
| Voltage | 230/400 V DELTA/STAR |
| Power | 0.09 kW |
| Current | 0.64 / 0.37 A |
| Speed | 1365 r/min |
| Power Factor (cos φ) | 0.69 |
| Voltage Range | 220“240 / 380“420 V STAR/DELTA |
| Current Range | 0.62“0.66 / 0.36“0.38 A |
| Voltage | 230/400 V STAR/DELTA |
| Power | 0.09 kW |
| Current | 0.57 / 0.33 A |
| Speed | 1640 r/min |
| Power Factor (cos φ) | 0.72 |
| Voltage Range | 220“240 / 380“480 V STAR/DELTA |
| Maximum Current | 0.57 / 0.35 A |
| Standard | IEC/EN 60034 |
| Frame Size | 63M |
| Protection Class | IP65 |
| Insulation Class | F |
| Mounting | IM V18 |
