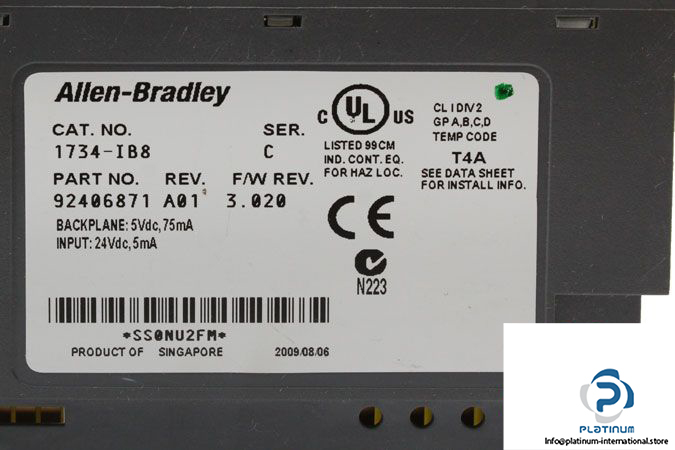

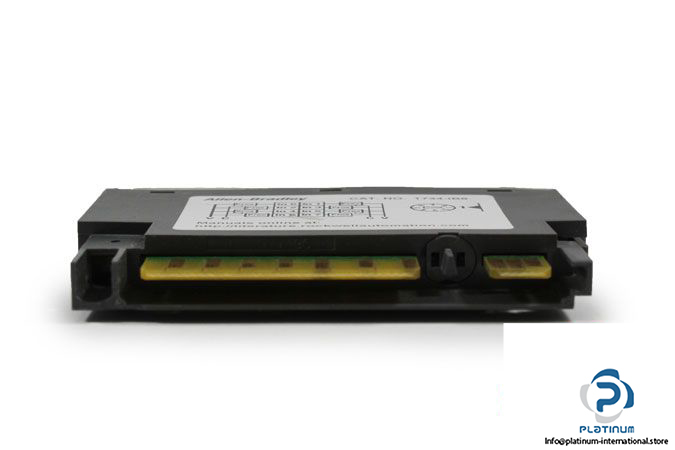

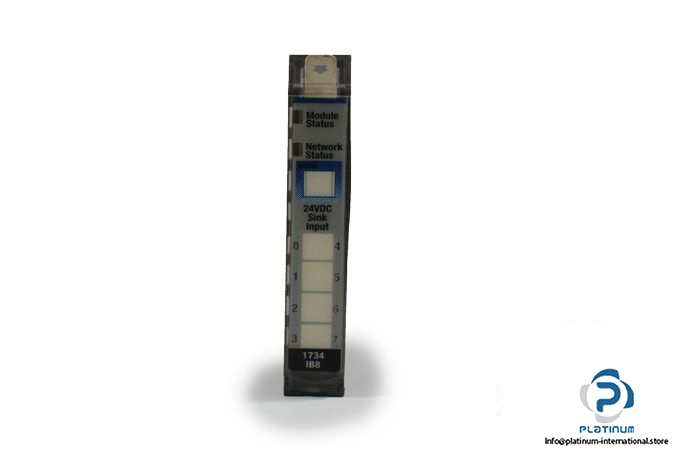

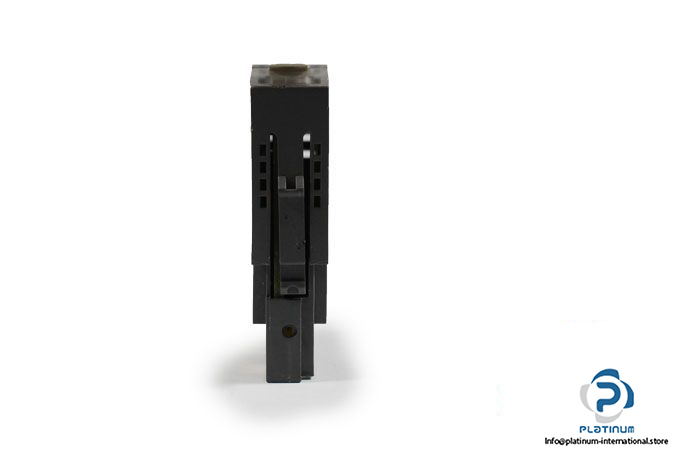

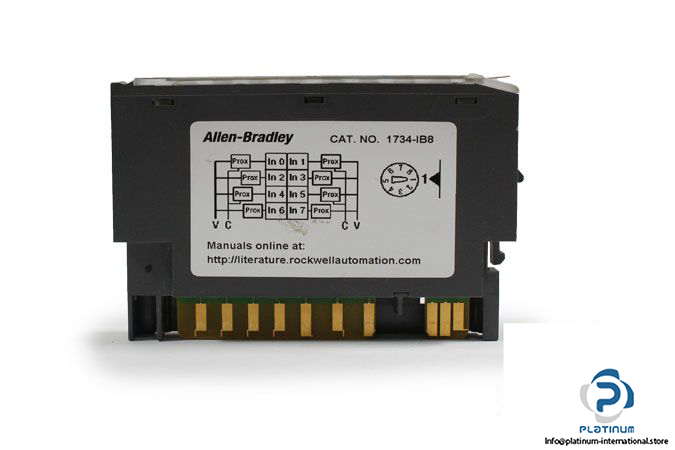

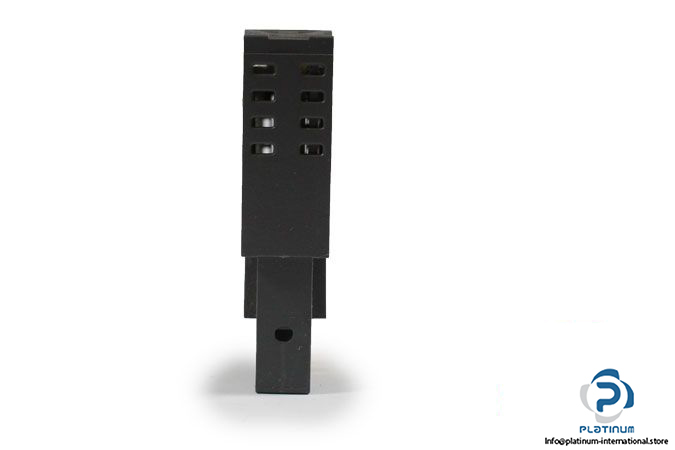

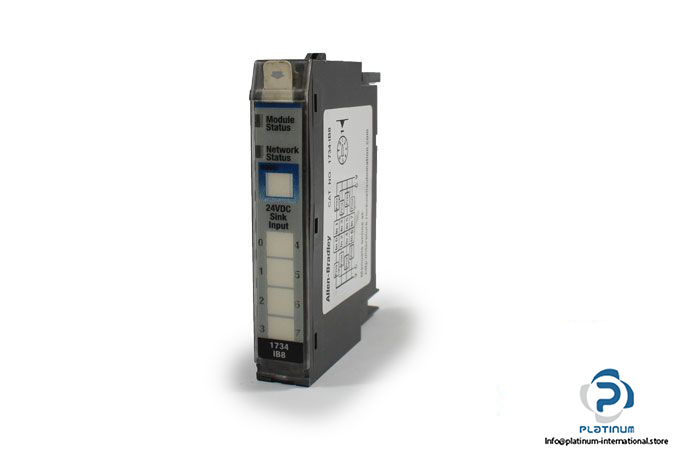

Allen-Bradley 1734-IB8 Point I/O Input Module

Manufacturer: ALLEN-BRADLEY

Type: POINT I/O INPUT MODULE

Model: 1734-IB8

Part No.: 92406871

Terminal Base Screw Torque: 0.8 Nm

Point Bus Current At 5 VDC: max. 75 mA

Power Dissipation: 1.6 W

Thermal Dissipation: 5.5 BTU/hr

Field Power Supply Voltage, Nom: 24 VDC

Field Power Voltage Range: 10 … 28.8 VDC

Dimensions: 56 X 12 X 75.5 mm

Solation Voltage: 50V

Operating Temperature: -20 … 55 °C

Weight: 0.032 Kg
