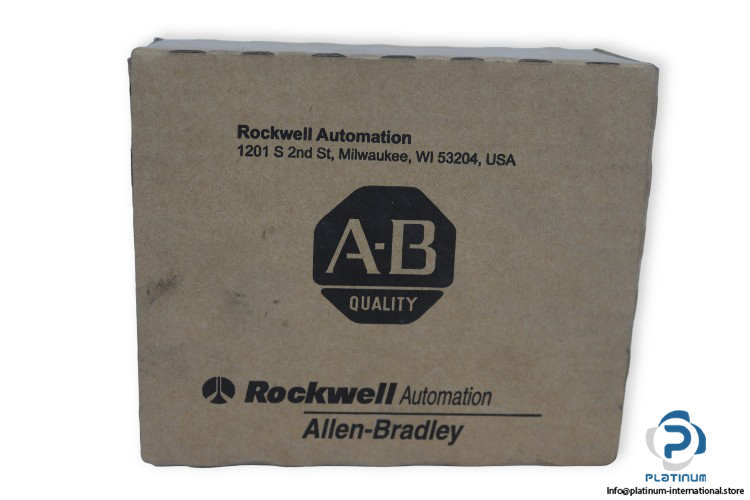

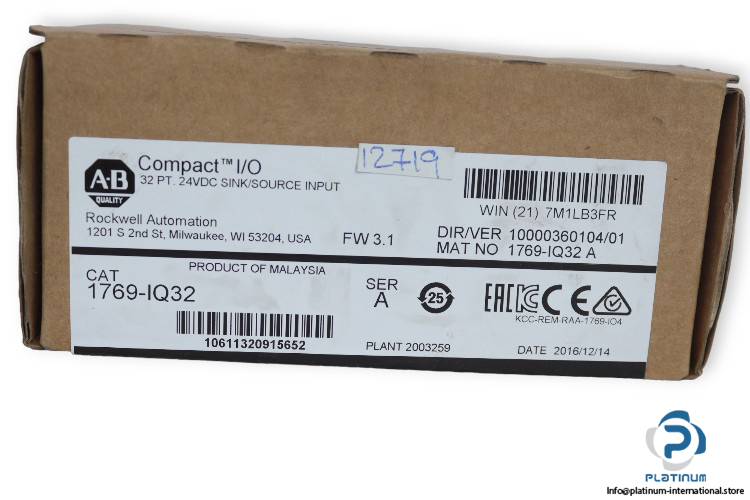

Allen Bradley 1769-IQ32 Digital Input Module

Manufacture: Allen Bradley
Type: Digital Input Module / Source input module
Model: 1769IQ32
Part No: 10000360104/01
Series: A

Voltage Category: 24 V DC
Operating Voltage Range: 10 … 30 V DC@30°C,10 … 26.4 V DC@60°C
No. of Digital Input (DI): 32
Input delay, on: 8 ms
Input delay, off: 8 ms
Current draw @ 5.1V: 170 Ma
Heat dissipation, max: 4.6 W
Off-state voltage, max: 5 V DC
Off-state current, max: 1.5 mA
On-state voltage, min: 10 V DC
On-state current, min: 2 mA
Inrush current, max: 250 mA
Input impedance, nominal: 5.2 kW@24 V DC, 6.1 kW@30 V DC
Slot width: 1.5
Operating Temperature: 0 … 60 °C
Dimensions: 118 x 52.5 x 87 mm
