Allen-Bradley 2711-K5A2 Ser.b Operator Panel
Neu
Auf Anfrage verfügbar
Operator Panel
The Allen-Bradley 2711-K5A2 operator panel features keypad and touch input, 256 x 128 pixel monochrome LCD, multiple communication ports, and IP65 protection for reliable industrial control and monitoring.230v2711-K5A2550ACAllen-BradleyAutomationDisplayHMIIndustrialInterfaceIP65KeypadOperatorPanelPanelViewTouch
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

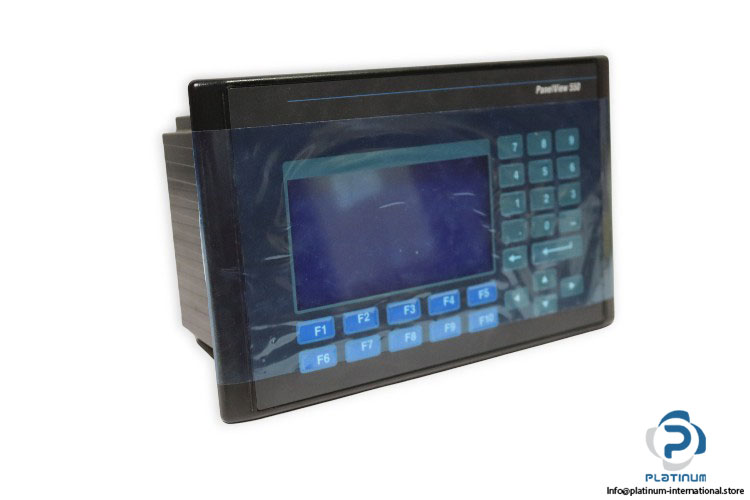

Allen-Bradley 2711-K5A2 Operator Panel
The Allen-Bradley 2711K5A2 Operator Panel from the PanelView 550 range is a robust and user-friendly HMI (Human-Machine Interface) designed for industrial automation control and monitoring. It offers both keypad and touch operation, clear monochrome display, and multiple communication options for reliable system integration.
Manufacturer: Allen-Bradley
Type: Operator Panel
Model: 2711-K5A2

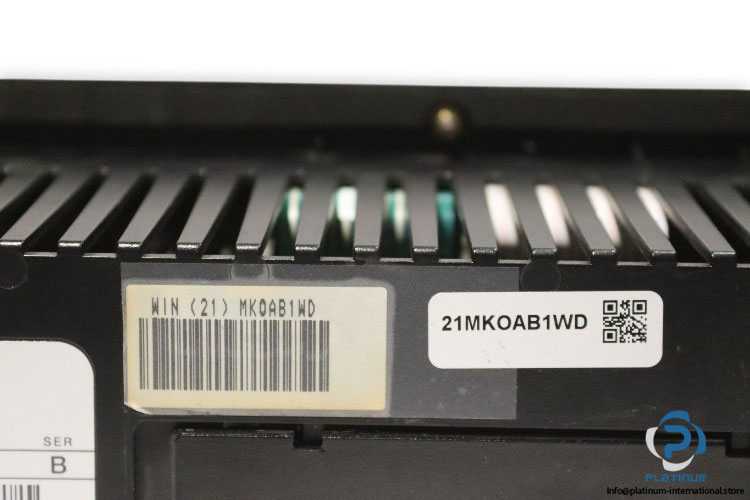

Alternative Model: 21MKOAB1WD
Series: B
| Range | PanelView 550 |
| Operator Input | Keypad or Key/Touch |
| Display Resolution | 256 x 128 Pixel |
| Display Type | Monochrome LCD Blue Mode Display |
| Display Area | 120 x 60 mm |
| Touch Screen | Touch Cells 128 / Actuation 1 Million Presses |
| Keypad Function Keys | 10 Function Keys (F1 / F10) |

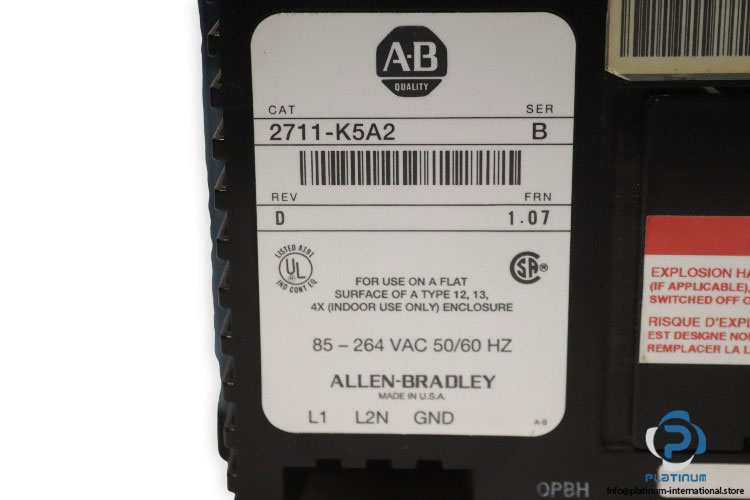

| Supply Voltage | 85 / 264 V AC |
| Power Consumption Max. | 45 VA |
| Frequency | 50 / 60 Hz |
| Application Memory | 170 KB Application Runtime / 240 KB Nonvolatile RAM (Application Objects Plus Text and Bitmaps) |
| Communication Ports | EtherNet/IP, DeviceNet, ControlNet, DH+, Remote I/O, DH-485, RS-232 (DH-485), RS-232 (DF1) |
| Software | PanelBuilder32 Software, Runs on a Personal Computer |
| RS-232 Printer Port | 1200, 2400, 9600, 19,200 Kbps |
| Protection Class | IP65 |
| Operating Temperature | 0 / 50 °C |
| Dimensions | 167 x 266 x 106 mm |
