Eltra EH63E 1B500S12P10S3MR.537 Incremental Encoder
Gebraucht
Auf Lager1 EinheitVersandbereit
250,00$
INCREMENTAL ENCODER
Eltra EH63E 1B500S12P10S3MR.537 is a compact incremental encoder with 500 ppr resolution, 3000 rpm shaft speed, and robust IP66-rated design for industrial motion systems.12V1B500S12P10S3MR.537500ControlEH63EEltraEncoderFeedbackIncrementalIndustrialIP66MotionPPRPullPushSensorshaft
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
ELTRA EH63E 1B500S12P10S3MR.537 INCREMENTAL ENCODER
The Eltra EH63E series incremental encoder is built to deliver precise position feedback in industrial automation systems. With a compact design, high resolution, and robust materials, it is an ideal choice for motion control applications.
Manufacturer: Eltra
Type: Incremental Encoder
Model: EH63E 1B500S12P10S3MR.537
Ref No.: 31869
Principle of Operation: Incremental
| Body Dimension | 63 mm |
| Version | 537 |
| Type of Flange | mod.EH-EL 63 E |
| Shaft Diameter | 10 mm |
| Shaft Speed | 3000 rpm |
| Bearings | 2 Ball Bearings |
| Output Type | PUSH PULL |
| Resolution | 500 ppr |
| Supply Voltage | 12 V |
| Operating Temperature | 0 / +60 °C |
| Degree of Protection | IP66 |
| Shaft Material | Stainless Steel AISI303 |
| Body Material | Aluminium UNI 5076 |
| Housing Material | PA 66 reinforced with fiberglass |
Mehr von ELTRA
Gebraucht
ELTRA

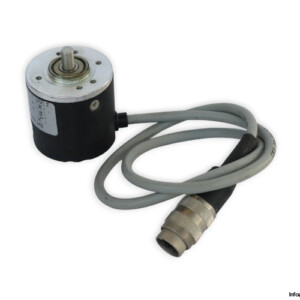

Eltra EH40A100S8/24P6X6PR.249 Incremental Encoder
