Eltra EH63E 1B500S12P10S3MR.537 Incremental Encoder
Kullanılmış
Stokta1 birimSevkiyata hazır
250,00$
INCREMENTAL ENCODER
Eltra EH63E 1B500S12P10S3MR.537 is a compact incremental encoder with 500 ppr resolution, 3000 rpm shaft speed, and robust IP66-rated design for industrial motion systems.12V1B500S12P10S3MR.537500ControlEH63EEltraEncoderFeedbackIncrementalIndustrialIP66MotionPPRPullPushSensorshaft
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
ELTRA EH63E 1B500S12P10S3MR.537 INCREMENTAL ENCODER
The Eltra EH63E series incremental encoder is built to deliver precise position feedback in industrial automation systems. With a compact design, high resolution, and robust materials, it is an ideal choice for motion control applications.
Manufacturer: Eltra
Type: Incremental Encoder
Model: EH63E 1B500S12P10S3MR.537
Ref No.: 31869
Principle of Operation: Incremental
| Body Dimension | 63 mm |
| Version | 537 |
| Type of Flange | mod.EH-EL 63 E |
| Shaft Diameter | 10 mm |
| Shaft Speed | 3000 rpm |
| Bearings | 2 Ball Bearings |
| Output Type | PUSH PULL |
| Resolution | 500 ppr |
| Supply Voltage | 12 V |
| Operating Temperature | 0 / +60 °C |
| Degree of Protection | IP66 |
| Shaft Material | Stainless Steel AISI303 |
| Body Material | Aluminium UNI 5076 |
| Housing Material | PA 66 reinforced with fiberglass |
Daha Fazlası ELTRA
Kullanılmış
ELTRA
Eltra EH80P1024Z5L8X3P Incremental Encoder
SKU: 1060347
Adet: 1
Teklif üzerine temin edilebilir
Kullanılmış
ELTRA

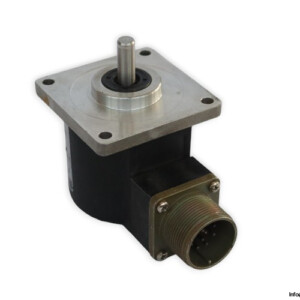

Eltra EL63D600Z8/24L8S3MR.197 Incremental Encoder
