API Controls PS-3310I-E Digital Servo Drive
Gebraucht
Auf Lager1 EinheitVersandbereit
2 250,00$
DIGITAL SERVO DRIVE
API Controls PS3310IE intelligent digital servo drive for brushless DC motors with 230 V AC input, 325 V DC output, and integrated encoder/hall feedback. High control accuracy in compact design.APIBrushlessControlControllerDigitalDriveDriverEncoderFeedbackHighIndustrialIntelligentMotionmotorperformancePS3310IEServo
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

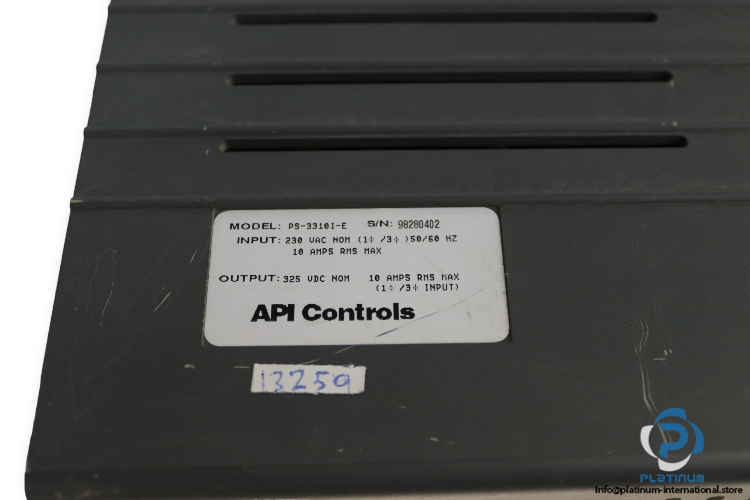

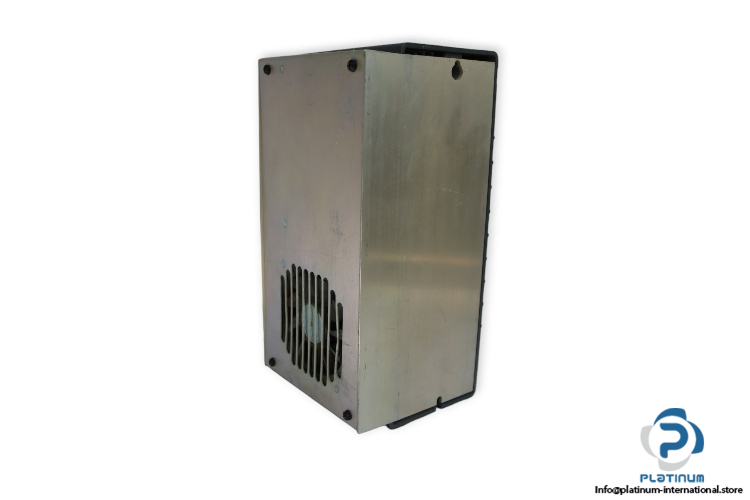

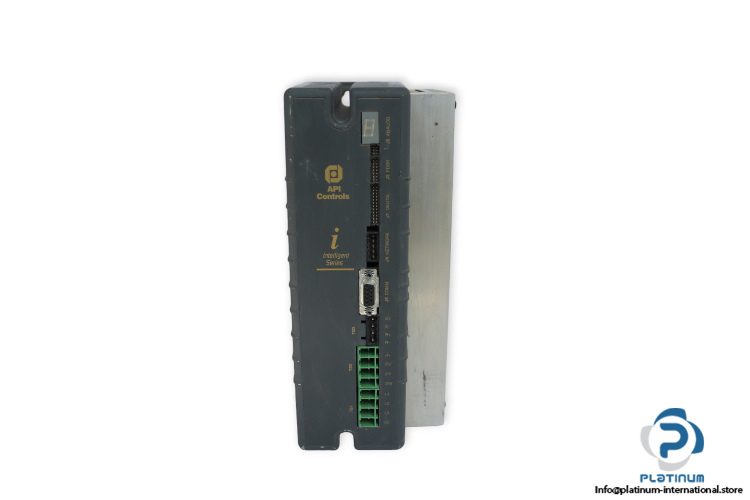

API CONTROLS PS3310IE DIGITAL SERVO DRIVE
The API Controls PS3310IE is an intelligent digital servo drive engineered for brushless DC motor applications. Designed for high-performance industrial automation, it offers versatile control, reliable feedback integration, and compact form for space-constrained environments.
Manufacturer: API Controls
Type: Digital Servo Drive
Model: PS3310IE
Serial No.: 98280402
Family: Intelligent
| Input Voltage | 230 V AC / 1,3 phase |
| Input Current | 10 A max. |
| Input Frequency | 50/60 Hz |
| Output Voltage | 325 V DC |
| Output Current | 10 A max. |
| Feedback Device | Encoder / Hall |
| Analog Inputs | 2 Differential, ±10 VDC, 10-bit Resolution |
| Digital Inputs | 7 Total (ENABLE, RESET, 3 Isolated 5“30 VDC Configurable, 2 HSI3) |
| Motor Types | Brushless DC |
| Analog Outputs | None |
| Digital Outputs | DRIVEOK, FOLDBACK, 2 Isolated (5“30 VDC, 5 mA Max) |
| Dimensions | 254 x 233 x 94.5 mm |
