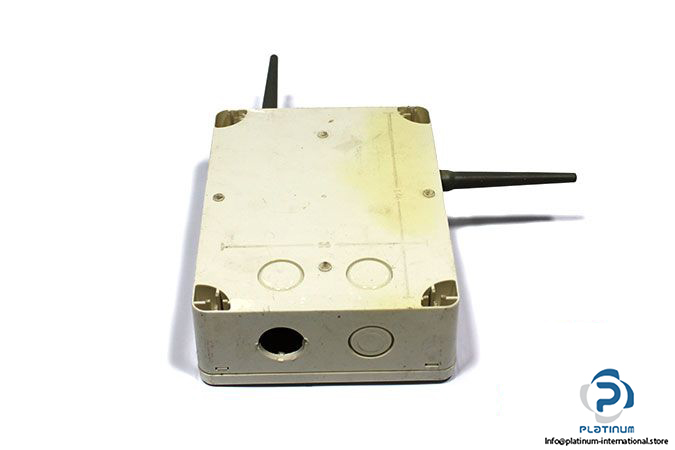

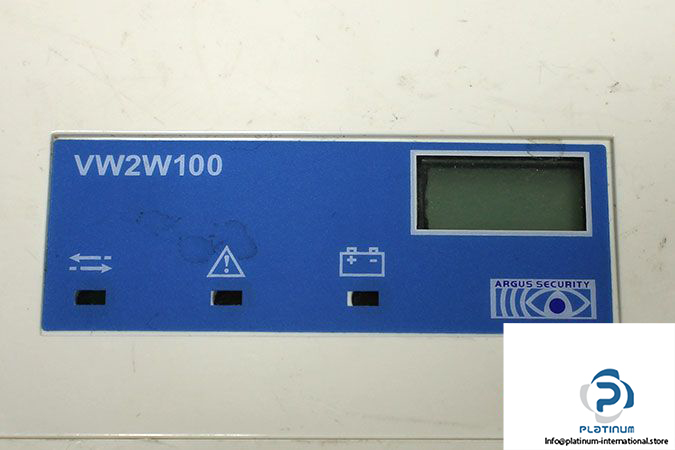

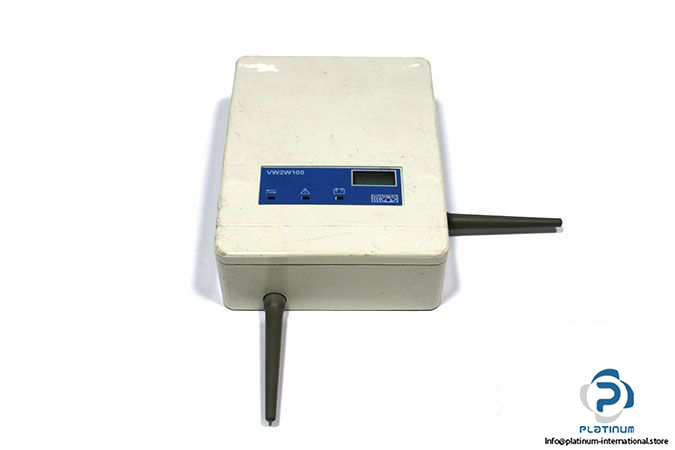

Argus Security VW2W100 Wireless Translator Module

Manufacturer: ARGUS SECURITY

Type: Wireless Translator Module

Model: VW2W100

The VW2W100 Translator Module is one of the core components of the Argus intelligent hybrid fire detection and alarm system. When connected on to a compatible loop, the unit is capable of linking up to 32 fully intelligent wireless field devices with the fire alarm system.

Loop power supply range: 18Vdc – 40Vdc

Operating frequency range: 868 – 870 MHz

Max radiated power: 5dBm (3mW)

Operating frequency channels: 7

Communication range with the Expander Module: ≤ 250m (in open space)

Communication range with wireless field devices: ≤ 150m (in open space)

IP rating 65

Dimensions (without antennae) 120 mm x 160 mm x 51 mm

Operating Temperature -10°C to +50°C

Weight 300g
