Armaturen 624004 Electric Thrust Actuator

Name: ARMATUREN 624004 ELECTRIC THRUST ACTUATOR
SKU: 1095229
Availability: LimitedAvailability

armaturen-624004-electric-thrust-actuator(used)

armaturen-624004-electric-thrust-actuator(used)-1

armaturen-624004-electric-thrust-actuator(used)-2

armaturen-624004-electric-thrust-actuator(used)-3

Gebraucht

Auf Lager1 EinheitVersandbereit

Elektrischer Schubaktuator ARI Armaturen ARI-PREMIO elektrischer Schubaktuator mit 5,0 kN Schubkraft, 30 mm Hub und IP65-Schutz für industrielle Steuerungsanwendungen.

Hersteller

ARI ARMATUREN

SKU

1095229

Kategorie

Other Mechanical Equipment

Zustand

Gebraucht

5 Actuator ARI Armaturen Automation Electric Industrial kN Linear Premio Thrust Valve

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

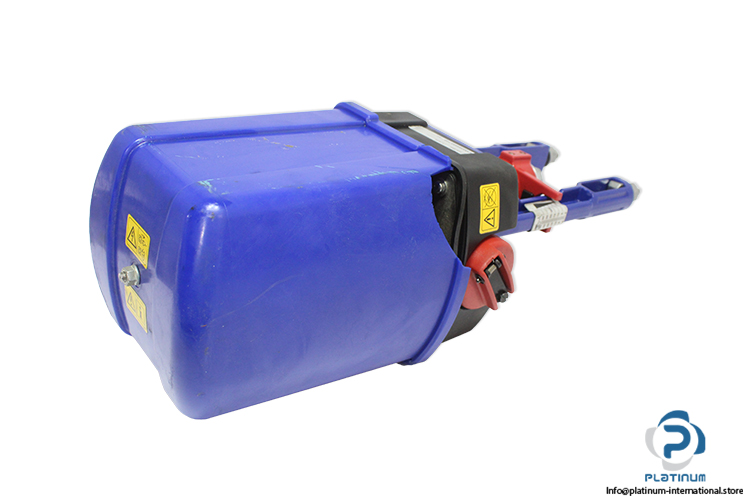

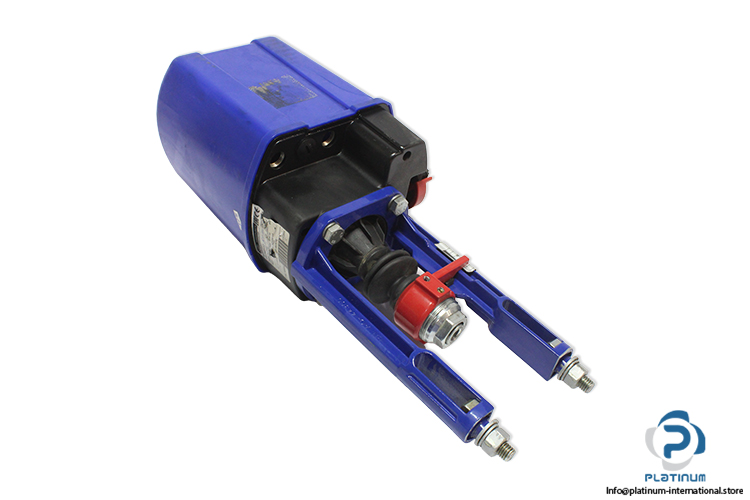

ARI Armaturen ARI-PREMIO Electric Thrust Actuator

The ARI Armaturen ARI-PREMIO electric thrust actuator is designed for precise linear motion control in industrial valve and automation applications. This unit delivers reliable thrust force with controlled stroke movement and stable operating performance.

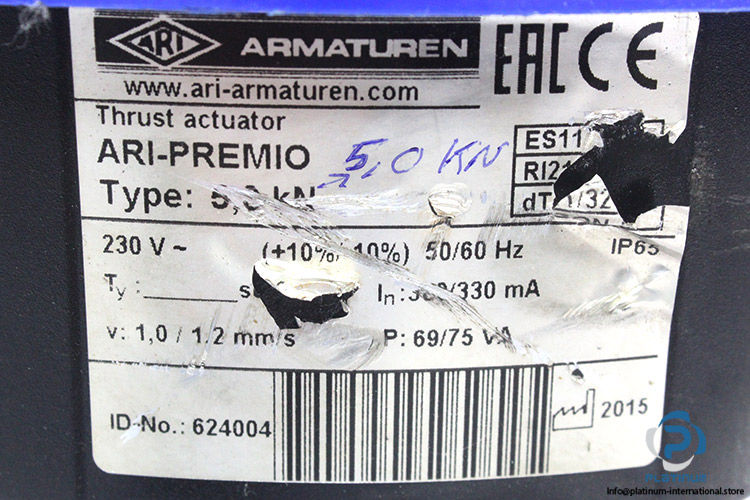

Manufacturer: ARI Armaturen

Type: Electric Thrust Actuator

Series: ARI-PREMIO

Model: 5.0 kN

ID No.: 624004

Serial Number: 100085890-149

Thrust Force	Approx. 5.0 kN

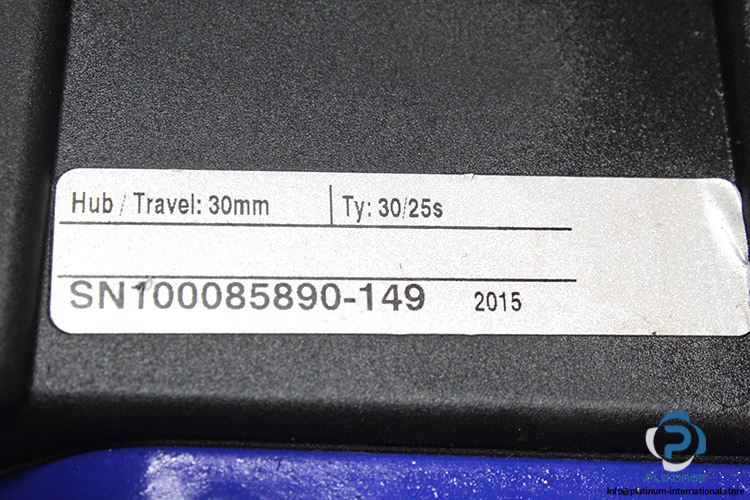

Stroke (Travel)	30 mm
Control Speed	1.0 / 1.2 mm/s
Operating Time (Ty)	30 / 25 s
Supply Voltage	230 V AC (±10%)
Frequency	50 / 60 Hz
Protection Class	IP65
Power Consumption	69 / 75 W
Current	Approx. 330 mA
Max Ambient Temperature	-20 to 70 °C
Port Size	G1/8 & G3/8
Note	There is a crack in the outer cover.
