Aventics 0821303400 Filter
Gebraucht
Auf Lager1 EinheitVersandbereit
24,44$
Mikrofilter AVENTICS NL 2 Mikrofilter mit 5 µm Filtration, G 1/4 Anschluss, hoher Nennfluss und Polycarbonat-Behälter für Druckluftsysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

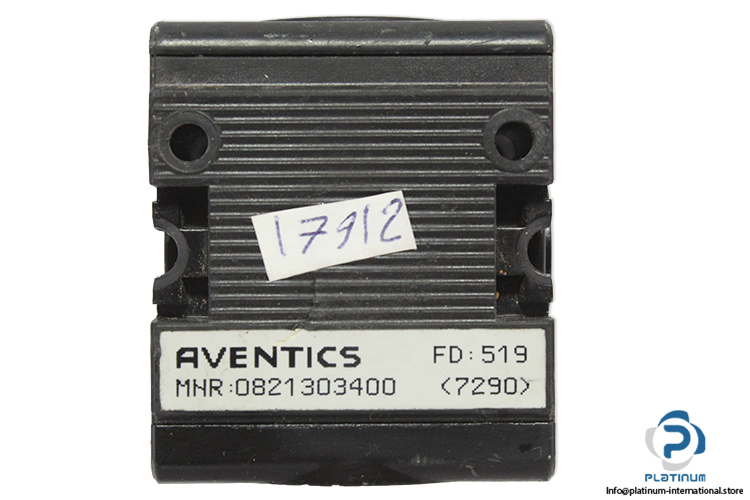

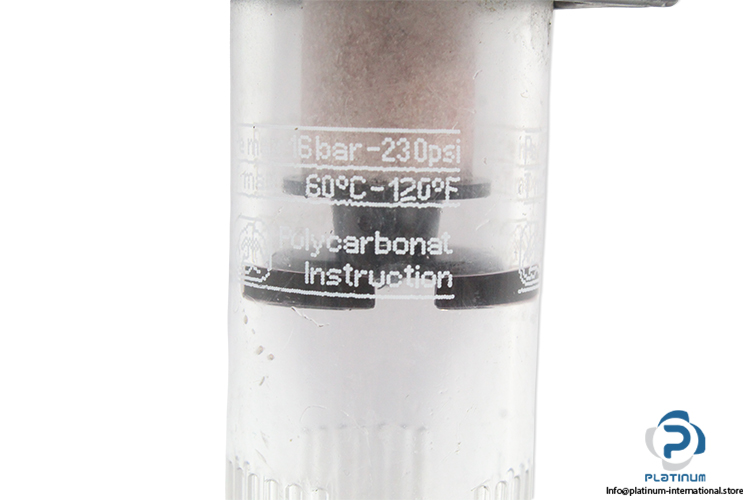

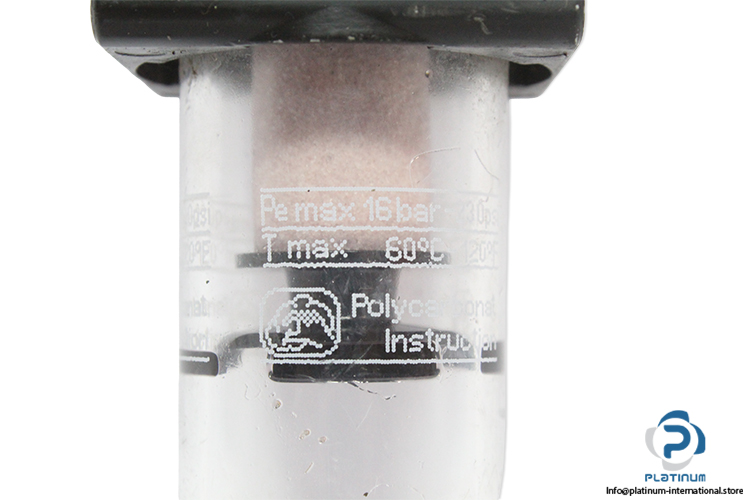

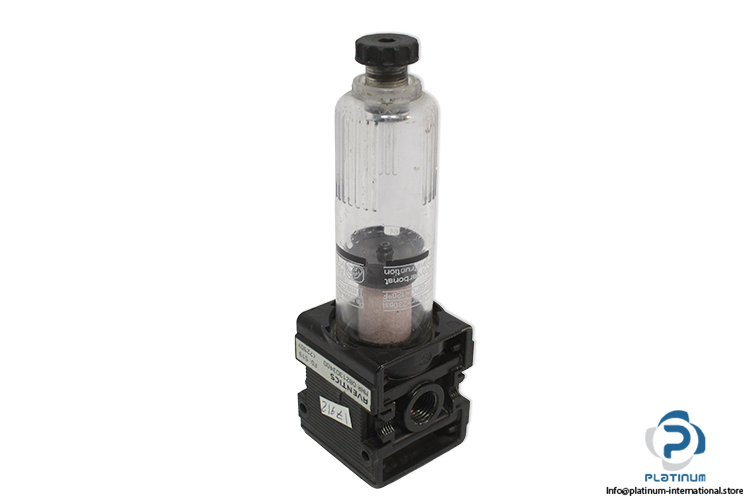

AVENTICS NL 2 Micro Filter
The AVENTICS NL 2 Micro Filter is a high-performance compressed air filtration component designed to remove fine contaminants and condensate from pneumatic systems. It features an exchangeable filter element and a durable polycarbonate reservoir, ensuring reliable operation under industrial working conditions.
Manufacturer: AVENTICS
Type: Micro Filter
MNR: 0 821 303 400
FD: 519
Code: 7290
Series: NL 2
| Reservoir | Polycarbonate, without protective guard |
| Port | G 1/4 |
| Filter Porosity | 5 µm |
| Nominal Flow (Qn) | 2100 l/min |
| Condensate Drain | Semi-automatic, open without pressure |
| Minimum Working Pressure | 2 bar |
| Maximum Working Pressure | 16 bar |
| Minimum Ambient Temperature | -10 °C |
| Maximum Ambient Temperature | 60 °C |
| Medium | Compressed air, Neutral gases |
| Filter Reservoir Volume | 25 cm³ |
| Filter Element | Exchangeable |
| Housing Material | Die cast zinc |
| Reservoir Material | Polycarbonate |
