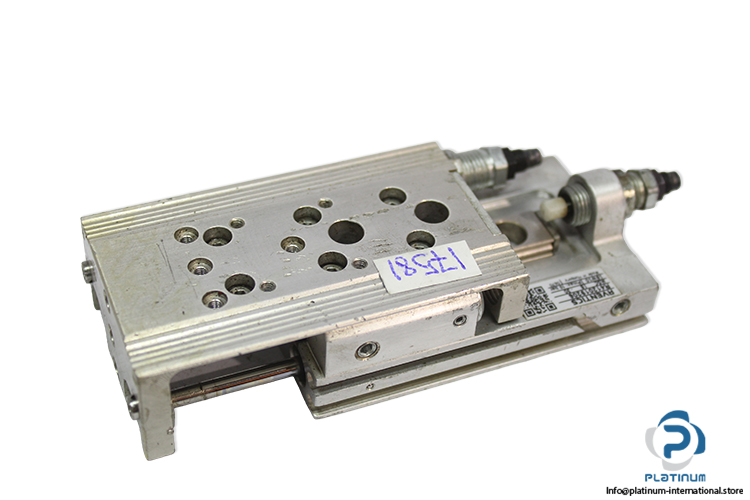

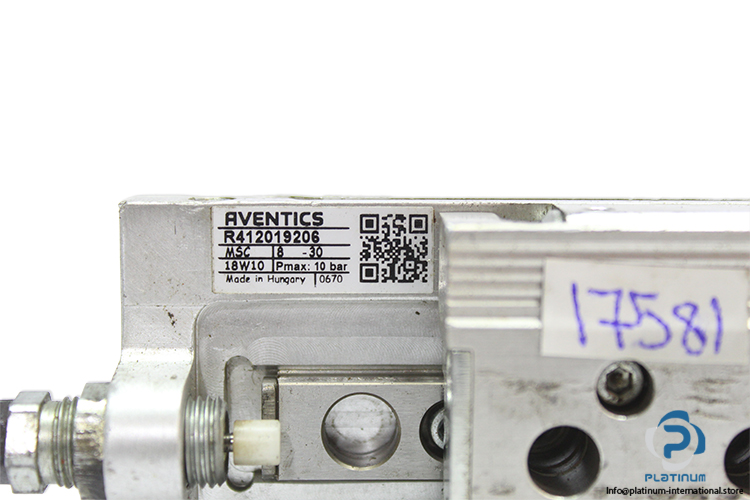

Aventics R412019206 Mini Slide
Gebraucht
Auf Lager1 EinheitVersandbereit
Mini Slide
Aventics R412019206 mini slide with 30 mm stroke and 8 mm piston diameter. Designed for pneumatic systems up to 10 bar, featuring anodized aluminum housing and compact design.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Aventics R412019206 Mini Slide
The Aventics R412019206 is a compact mini slide designed for precise linear motion in pneumatic automation systems. With its anodized aluminum housing and high force output relative to size, it is suitable for applications requiring accurate positioning and reliable performance.
Manufacturer: Aventics
Type: Mini Slide
Model: R412019206
Series: MSC
Code: 0670/18W10
| Stroke Length | 30 mm |
| Piston Diameter | 8 mm |
| Pneumatic Pressure | Max. 10 bar |
| Cushioning Length | 0.3 mm |
| Retracting Piston Force | 48 N |
| Extracting Piston Force | 63 N |
| Housing Material | Aluminum, Anodized |
| Connection | 5 mm |
