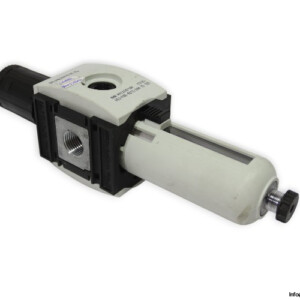

Aventics R412007184 Filter Pressure Regulator
Neu
Auf Lager3 EinheitenVersandbereit
Filter Pressure Regulator
The AVENTICS AS3-FRE-G012 GAN combines air filtration and precise pressure regulation with 5 micrometer filter porosity, 0.5 to 8 bar adjustment range, and a 5100 liter per minute flow rate for reliable pneumatic system performance.5AirAS3AS3-FRE-G012AutomaticAventicsComponeDiaphragmdrainfilterGANHousingIndustrialMicrometerPneumaticPolyamidePreparationPressureregulatorSemiSeriesUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

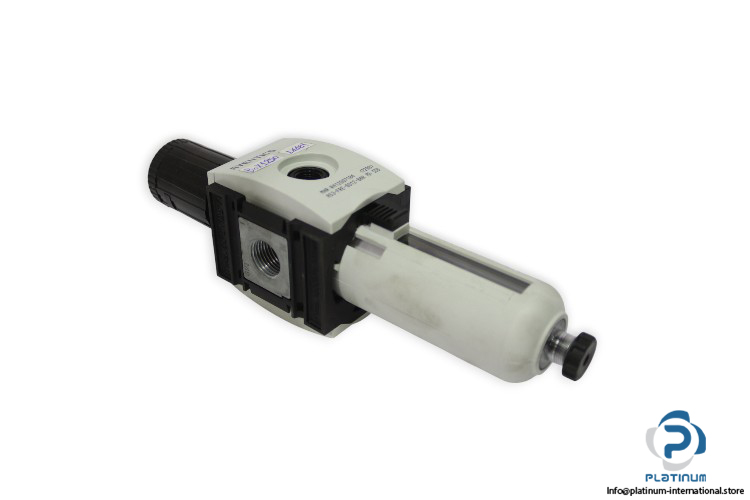

AVENTICS AS3-FRE-G012 GAN Filter Pressure Regulator
The AVENTICS AS3-FRE-G012 GAN Filter Pressure Regulator is a reliable air preparation unit designed to ensure clean, dry, and properly regulated compressed air for pneumatic systems. With its durable housing and diaphragm-type regulator, it provides stable pressure control and efficient filtration for demanding industrial environments.
Manufacturer: AVENTICS
Type: Filter Pressure Regulator
Model: AS3-FRE-G012 GAN

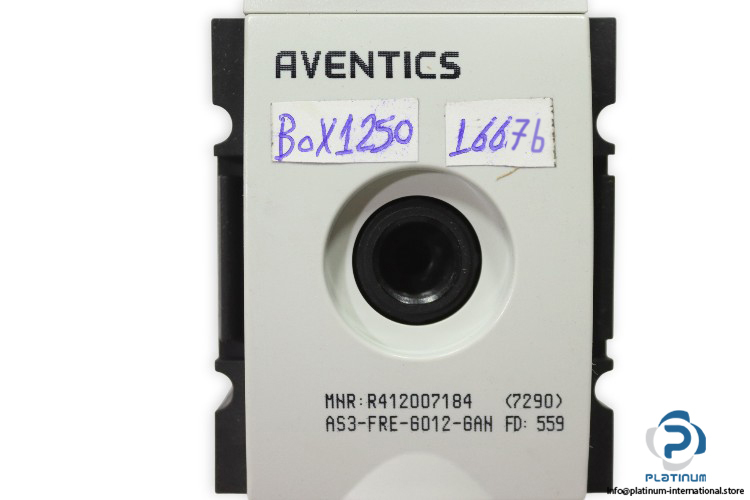

Manufacturer Number: R412007184
FD: 559
Series: AS3
| Filter Porosity | 5 micrometers |
| Adjustment Range Min/Max | 0.5 to 8 bar |
| Working Pressure Min/Max | 1.5 to 16 bar |
| Ambient Temperature Min/Max | minus 10 to 50 degree Celsius |
| Medium | Air |
| Nominal Flow | 5100 liters per minute |
| Regulator Type | Diaphragm type pressure regulator |
| Regulator Function | Adjustment with relieving air exhaust |
| Supply | Single |
| Filter Reservoir Volume | 49 cubic centimeters |
| Filter Element | Exchangeable |
| Housing | Polyamide |
| Front Plate | Acrylonitrile butadiene styrene |
| Condensate Drain | Semi automatic, open without pressure |
