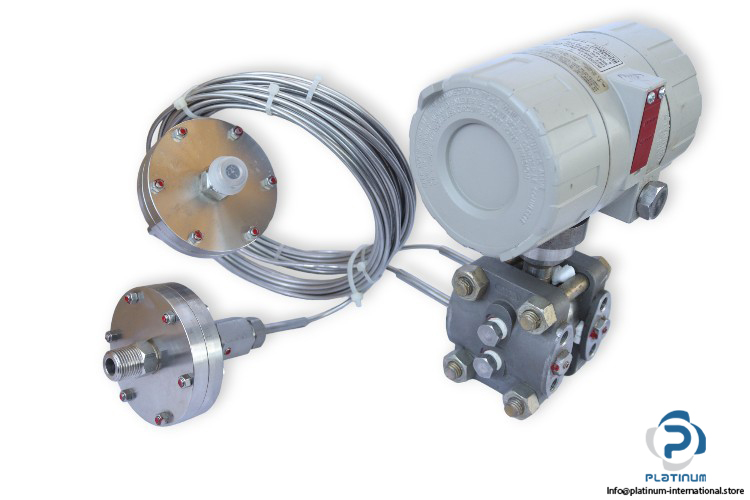

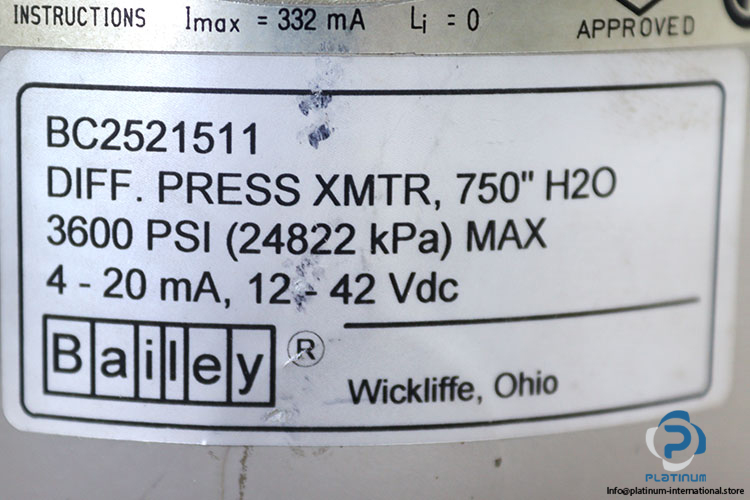

Bailey BC2521511 Differential Pressure Transmitter

Manufacturer: BAILEY
Type: Differential Pressure Transmitter
Model: BC2521511

Used for: Measuring Pressure and Differential Pressure of Liquids, Gases, and Vapors. Transmitters are Used in Oil Fields, Pipelines, Well Heads, and Other Solar or Battery Powered Systems Located in Remote Area.
Description: Medium Range Differential Pressure
Static Pressure Limit Max.: 3600 PSI / 24822 kPa
Supply Voltage: 12 … 42 V DC
Analog Output Current: 4 … 20 mA
Power Consumption: 23 mW
Span: 125 … 750 in H₂O
Fill Fluid: Silicon Fluid
Electrical Connection: 2 x ½ “NPT Stainless Steel NPT Pipe Plug
Material:
Diaphragm/Trim: 316L Stainless
Flange/Adapter/Plug: 316 Stainless
O-Ring/Bolting: VITON/Carbon Steel
Protection Class: IP66/67
Temperature: -30 … 80 °C
Dimensions: 250.4 x 185.4 x 109.7 mm
