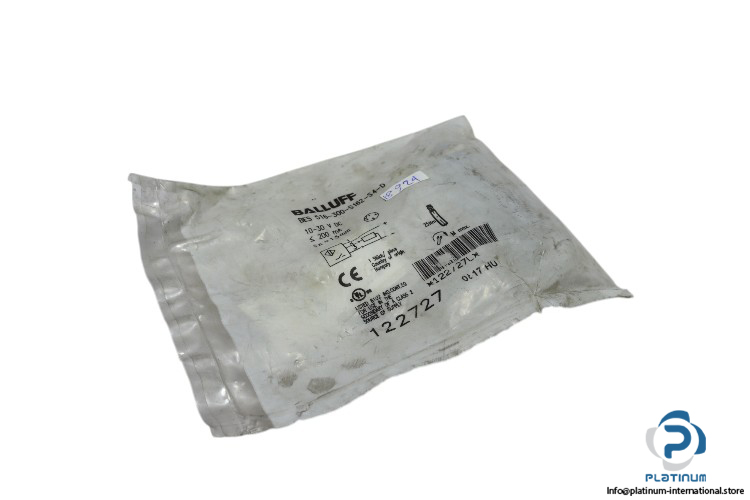

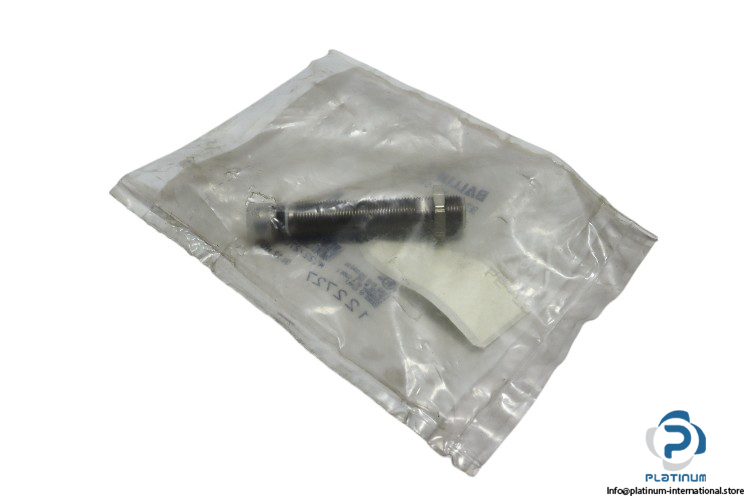

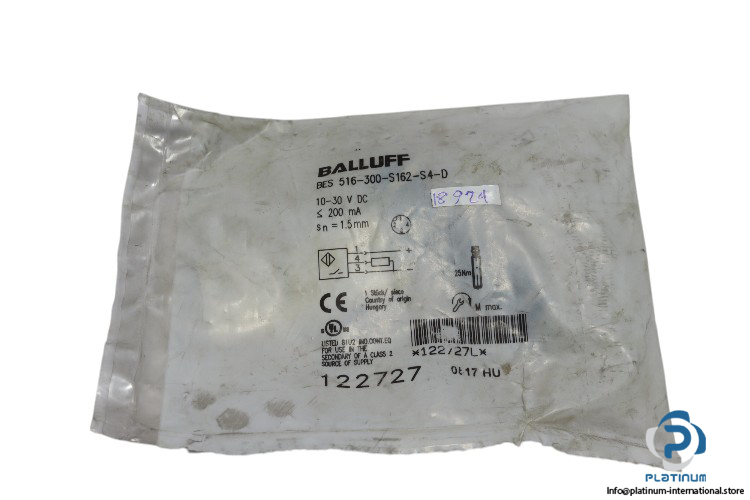

Balluff BES 516-300-S162-S4-D Inductive Sensor
Induktiver Sensor
Balluff BES 516-300-S162-S4-D Inductive Sensor
The Balluff BES 516-300-S162-S4-D Inductive Sensor is a high-performance sensor designed for precise position sensing and object detection in industrial applications. Built for durability and reliability, this sensor offers efficient operation with a wide operating voltage range of 10-30 VDC and a rated operating voltage of 24 V DC. It features a robust stainless steel housing, making it ideal for use in harsh industrial environments where reliable performance is crucial.
With a switching output of PNP normally open (NO) and a fast response time, the Balluff BES 516-300-S162-S4-D is perfect for applications that require quick and accurate detection. It is designed for flush mounting and can be easily integrated into existing systems with its M12x1 connection and 4-pin male A-coded configuration. The sensor operates in temperatures ranging from -25°C to 80°C, providing reliable performance across a wide range of environments.
Manufacturer: Balluff
Type: Inductive Sensor
Model: BES 516-300-S162-S4-D
Part Number: 122727
The Balluff BES 516-300-S162-S4-D Inductive Sensor is a reliable and durable choice for precision sensing in industrial environments, offering high-speed response and exceptional durability.
| Operating Voltage (Ub) | 10...30 VDC |
| Rated Insulation Voltage (Ui) | 75 V DC |
| Rated Operating Current (Ie) | 200 mA |
| Rated Operating Voltage (Ue) | DC 24 V |
| Rated Short Circuit Current | 100 A |
| Output Resistance (Ra) | 150.0 kOhm |
| Connection | M12x1-Male, 4-pin, A-coded |
| Ready Delay (tv max.) | 50 ms |
| Switching Output | PNP normally open (NO) |
| Installation | For flush mounting |
| Mounting Part | M12x1 |
| Tightening Torque | 15 Nm ±10 % |
| Housing Material | Stainless steel |
| Ambient Temperature | -25...80 °C |
| Dimensions | Ø 12 x 69 mm |
