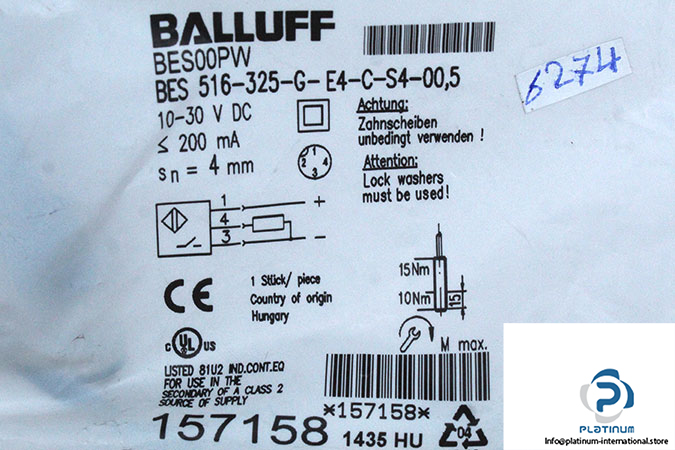

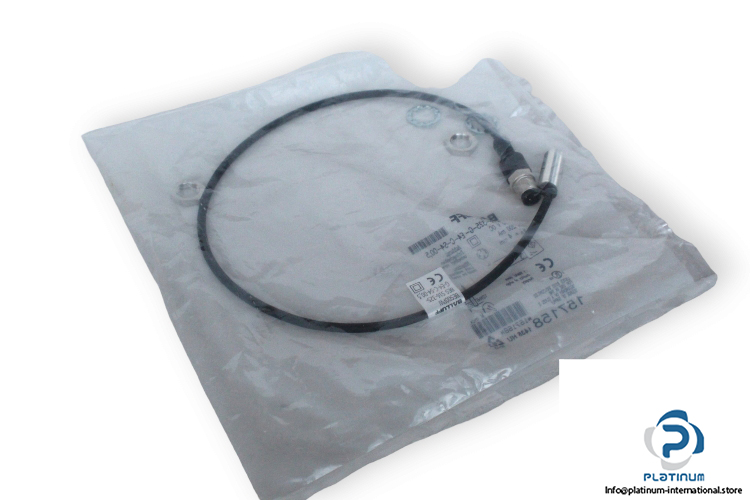

Balluff BES 516-325-G-E4-C-S4-00,5 Inductive Sensor
Manufacturer: BALLUFF
Type: Inductive Sensor
Model: BES516325GE4CS400,5
Order Code: BES00PW
Sensing Range: 4 mm
Rated Operating Voltage: 10 … 30 V DC
Rated Current: 200 mA
Contact: PNP Normally Open (NO)
Ready Delay Max.: 21 ms
Switching Frequency: 2500 Hz
Connection: M12x1-Male, 3-pin, A-Coded
Cable Dimension: 4.60 x 0.5 mm
Rated Insulation Voltage: 250 V AC / 24 V DC
Diameter, Length: 12, 33 mm
Protection Class: IP68
Ambient Temperature: -25 … 70 °C
