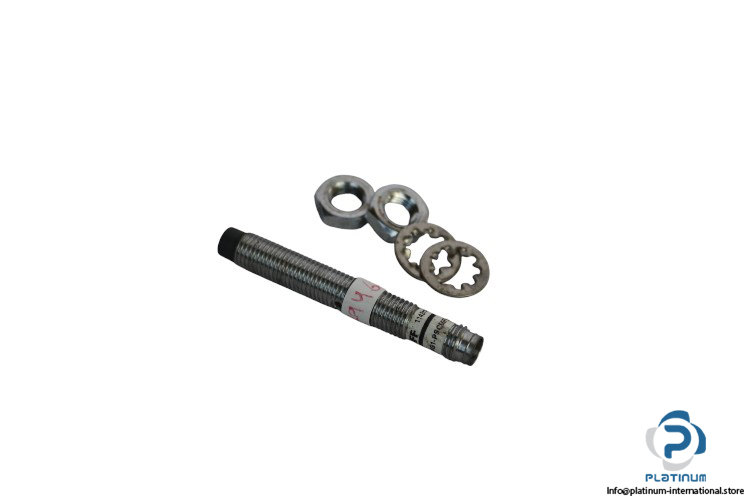

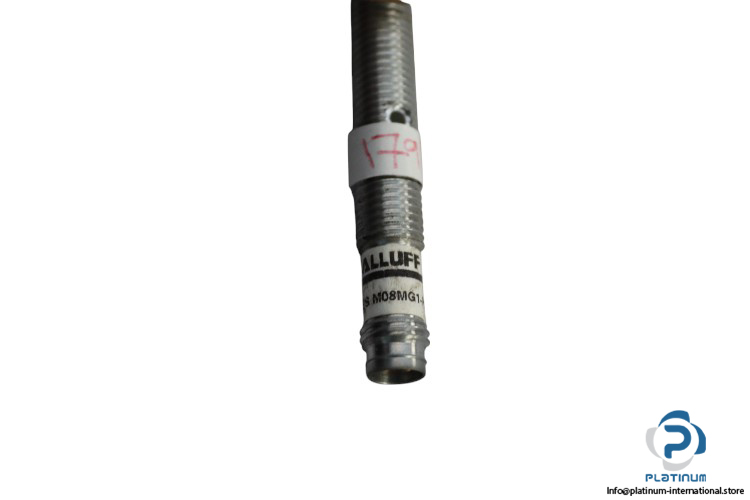

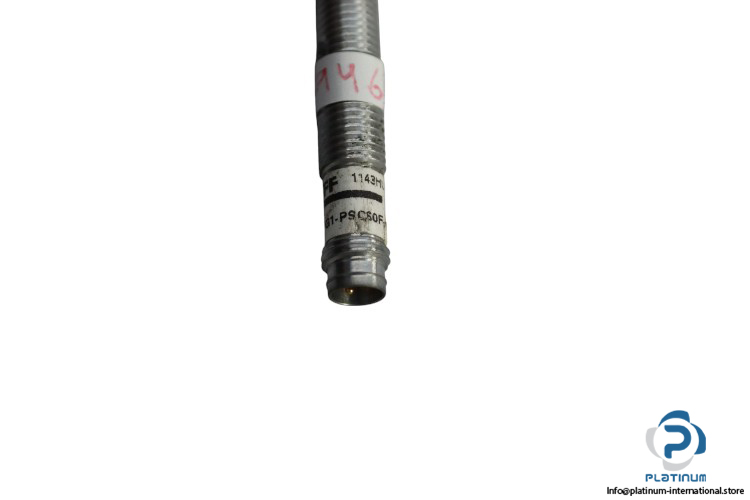

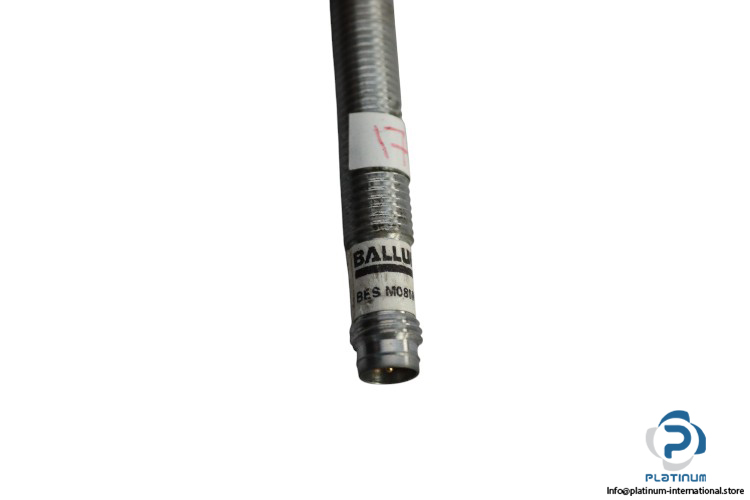

Balluff BES M08MG1-PSC60F Inductive Sensor
Gebraucht
Auf Lager1 EinheitVersandbereit
Induktiver Sensor Balluff BESM08MG1-PSC60F mit 6 mm Erfassungsbereich, 500 Hz Schaltfrequenz und PNP Elektronik. Gehäuse mit IP67-Schutz für zuverlässige industrielle Leistung.
5006BalluffbrassConnectorenclosureFaceFlushFrequencyHousingHzInductiveIndustrialIP67M8mmMountableNonNormallyOpenPBTPNPRangeSensingSensorSensorsSwitching
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Balluff Inductive Sensor BESM08MG1-PSC60F
Balluff Inductive Sensor BESM08MG1-PSC60F is designed to offer reliable detection in industrial applications, ensuring optimal performance with its precise sensing range and robust construction. Below are the key technical specifications:
- Manufacturer: Balluff
- Type: Inductive Sensor
- Model: BESM08MG1-PSC60F
Technical Data:
- Sensing Range: 6 mm
- Assured Operating Distance: 4.8 mm
- Operating Voltage: 10 / 30 V DC
- Switching Frequency: 500 Hz
- Electrical Design: PNP
- Switching Output: Normally Open
- Connector Type: M8
- Enclosure Rating: IP67
- Ambient Operating Temperature: -25 to 70°C
- Diameter, Housing Length: 8, 60 mm
- Housing Material: Brass, Chrome-plated
- Sensing Face Material: PBT
- Mounting: Non Flush Mountable
