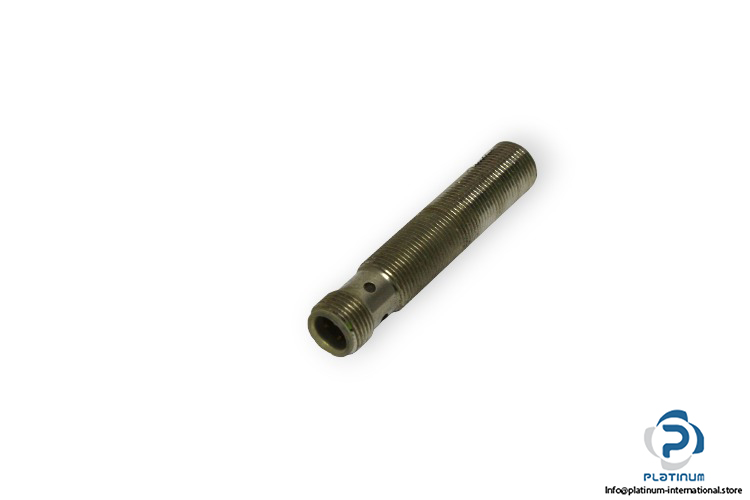

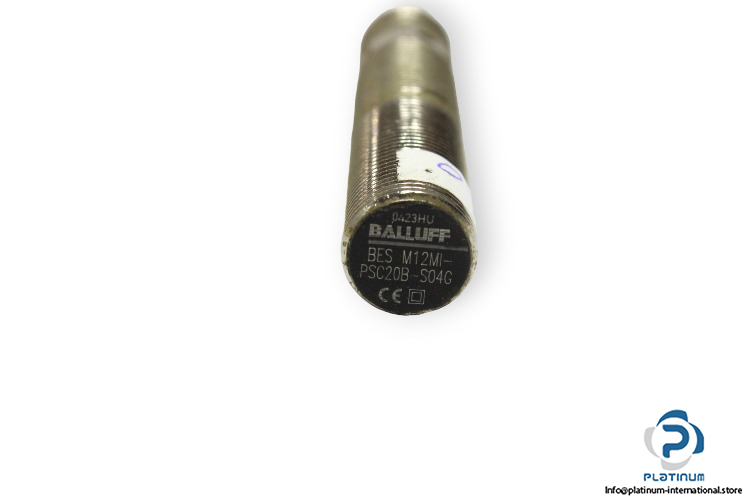

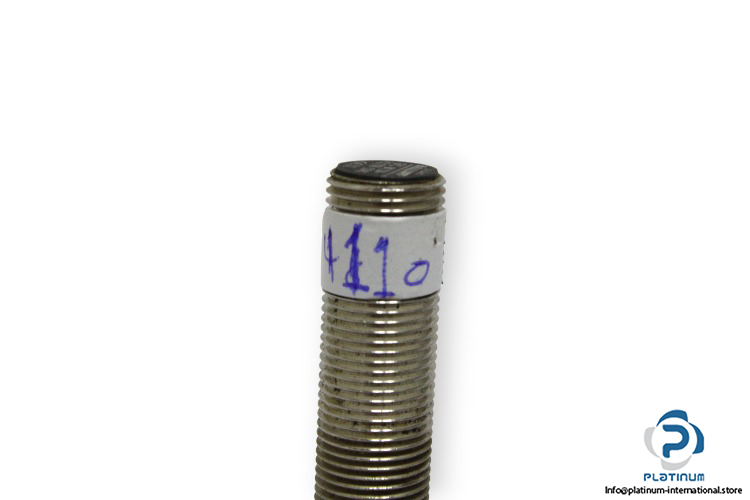

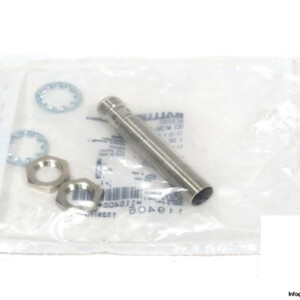

Balluff BES M12MI-PSC20B-S04G Inductive Standard Sensor
Manufacturer: BALLUFF
Type: Inductive Standard Sensor
Order Code: BES0060
Part No. BES M12MI-PSC20B-S04G
Sensing Range: 2 mm
Operating Voltage: 10 … 30 V DC
Switching Frequency: 3500 Hz
Operating Current: 200 mA DC
Electrical Design: PNP
Output Function: Normally Open
Connector Type: M12 Connector, 4 – Pin
Protection Class: II
Enclosure Rating: IP68
Housing: Threaded Type
Ambient Operating Temperature: –25 … 70°C
Diameter, Housing Length: 12, 65 mm
Material: Nickel-Plated Brass
Mounting: Flush Mountable
