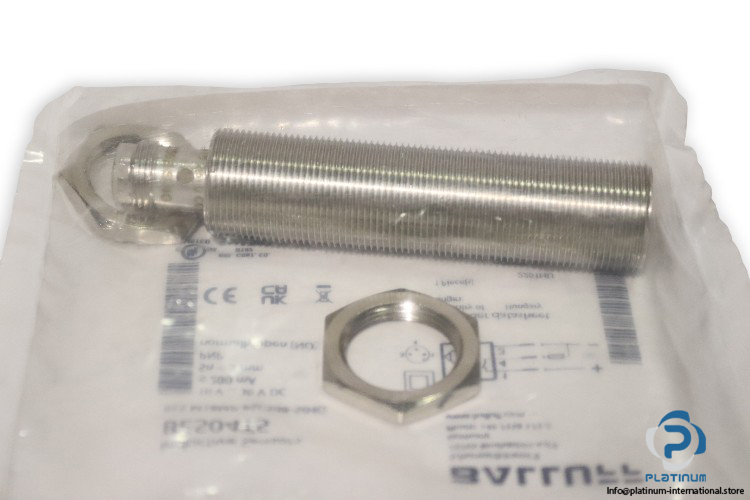

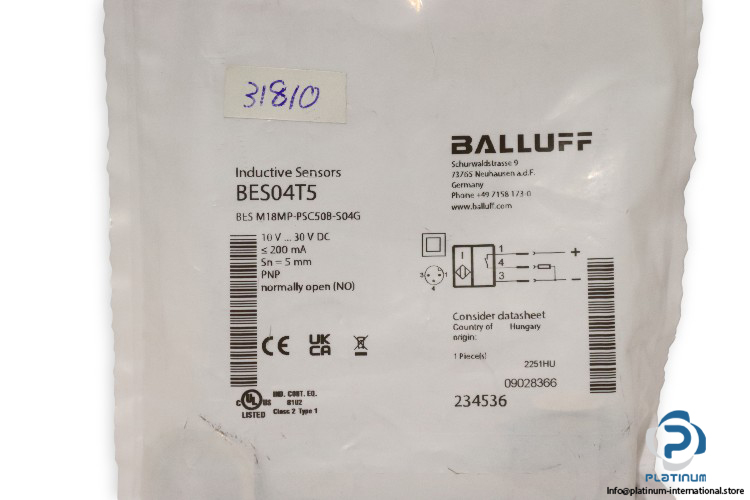

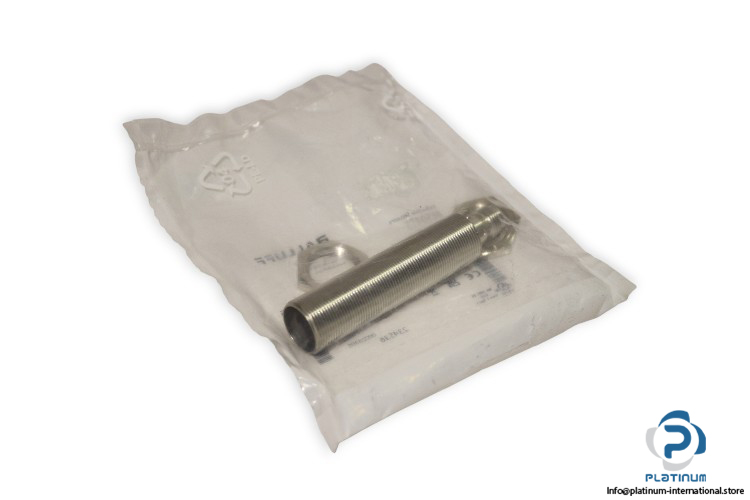

Balluff BES M18MP-PSC50B-S04G Inductive Proximity Sensor

Name: BALLUFF BES M18MP-PSC50B-S04G INDUCTIVE PROXIMITY SENSOR
SKU: 1080152
Availability: LimitedAvailability

balluff-BES-M18MP-PSC50B-S04G-inductive-proximity-sensor-(New)

balluff-BES-M18MP-PSC50B-S04G-inductive-proximity-sensor-(New)-1

balluff-BES-M18MP-PSC50B-S04G-inductive-proximity-sensor-(New)-2

Neu

Auf Anfrage verfügbar

Inductive Proximity Switch

The Balluff BES M18MP-PSC50B-S04G inductive proximity switch provides accurate and durable non-contact detection with 5 mm sensing range and IP68 protection for industrial automation systems.

Hersteller

BALLUFF

SKU

1080152

Kategorie

Sensors

Zustand

Neu

10-30V Balluff BES BES04T5 dc Inductive Industrial IP68 M18 M18MP-PSC50B-S04G NO PNP Proximity Sensor Series Switch

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Balluff BES M18MP-PSC50B-S04G Inductive Proximity Sensor

The Balluff BESM18MPPSC50BS04G Inductive Proximity Switch is a high-performance sensor designed for precise object detection in demanding industrial environments. It provides reliable, contactless sensing with excellent resistance to wear, moisture, and contaminants.

Manufacturer: Balluff

Type: Inductive Proximity Switch

Model: BES M18MP-PSC50B-S04G

Order Code: BES04T5

Sensing Range	5 mm
Size	M18x1
Rated Operating Voltage	10 / 30 V DC
Rated Operating Current	200 mA
Contact	PNP Normally Open (NO)
Switching Frequency	2000 Hz
Connection	Connector, M12x1-Male, 3-Pin
Housing Material	Brass, Nickel-Free Coated
Diameter, Length	18, 86 mm
Protection Class	IP68
Ambient Temperature	-40 ... 85 °C
