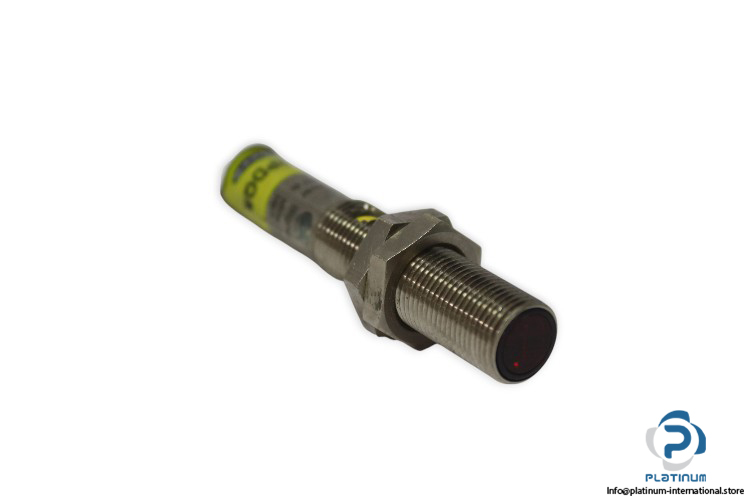

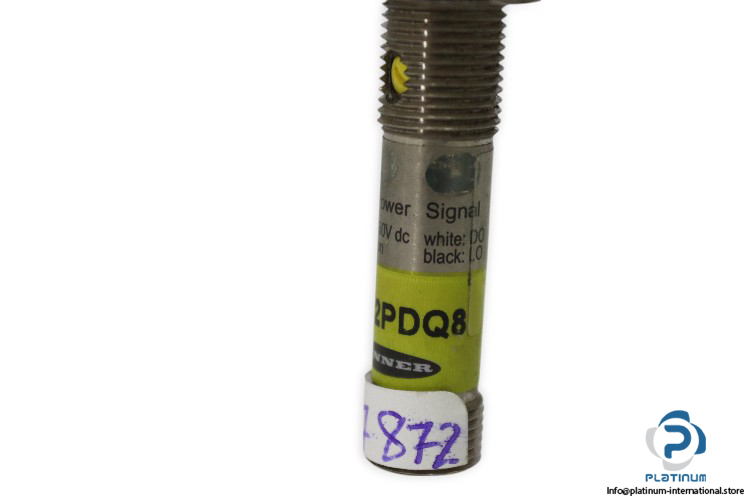

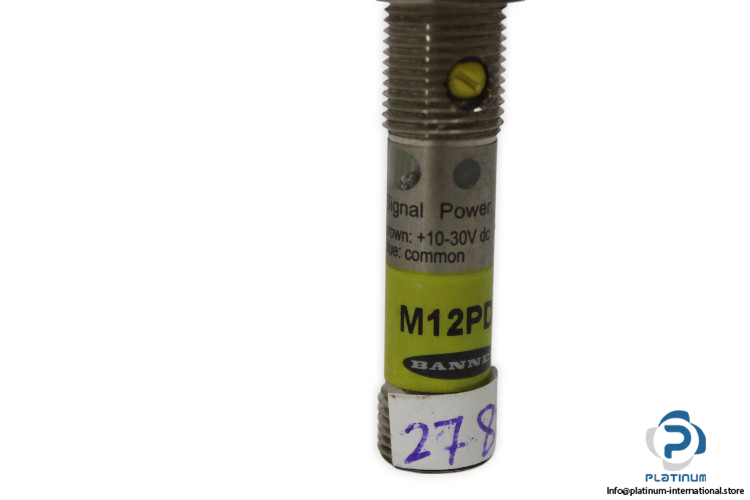

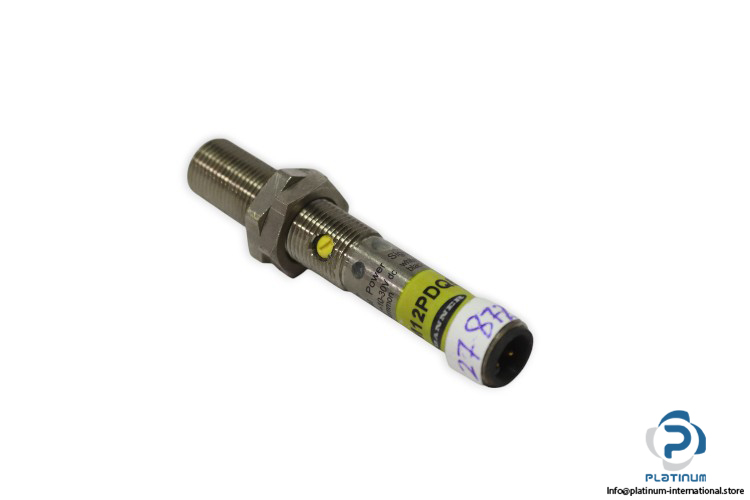

Banner M12PDQ8 Barrel-Mount Sensor
with 400 mm sensing range, PNP output, and nickel-plated brass housing. Diffuse proximity sensing for industrial automation.
Manufacturer: BANNER
Type: BARREL-MOUNT SENSOR
Model: M12PDQ8
Max Sensing Distance: 400 mm
Supply Voltage: 10“30V DC
Outputs: PNP
Sensing Mode (General): Proximity
Sensing Mode (Detailed): Diffuse
Housing Style: Barrel
Primary Housing Material: Nickel-Plated Brass
Operating Temperature: -20°C to 60°C
The BANNER M12PDQ8 barrel-mount sensor is a compact and reliable proximity sensor designed for industrial automation applications. Featuring diffuse sensing mode, it offers accurate object detection up to 400 mm. Its rugged nickel-plated brass housing ensures resistance to wear and environmental conditions, while the PNP output configuration enables seamless integration with standard control systems. Ideal for harsh environments and precise object presence detection.
