Banner Osblv NON-Polarized Retroreflective Sensor Head
BANNER OSBLV Sensorkopf, Reichweite 0,15-9 m, sichtbares rotes Licht, IP66. Kombiniert mit OPBT5QD Power Block, 18-30 V DC, SPDT-Relais.

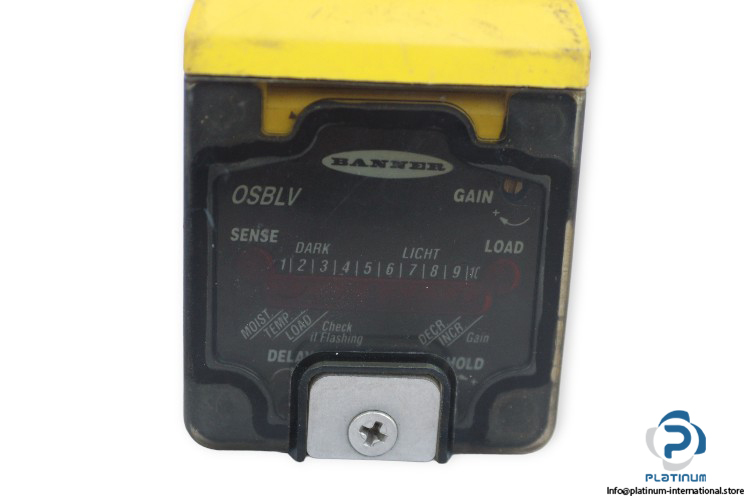

BANNER Non-Polarized Retroreflective Sensor Head OSBLV
The BANNER OSBLV Non-Polarized Retroreflective Sensor Head is a high-performance sensing solution for industrial applications. Part of the OMNI-BEAM„¢ range, it offers a sensing range of 0.15 to 9 meters with a visible red light source (650 nm). Its rugged thermoplastic housing provides durability, while its IP66 protection ensures reliable performance in harsh environments.
🔧 Sensor Specifications:
- Manufacturer: BANNER
- Type: Non-Polarized Retroreflective Sensor Head
- Model: OSBLV
- Range: OMNI-BEAM„¢
- Sensing Range: 0.15 to 9 m
- Light Source: Visible Red, 650 nm
- Housing Material: Plastic, Thermoplastic, Yellow
- Protection Class: IP66
- Temperature: -40 to 70 °C
- Dimensions: 79.8 x 44.5 x 54.6 mm

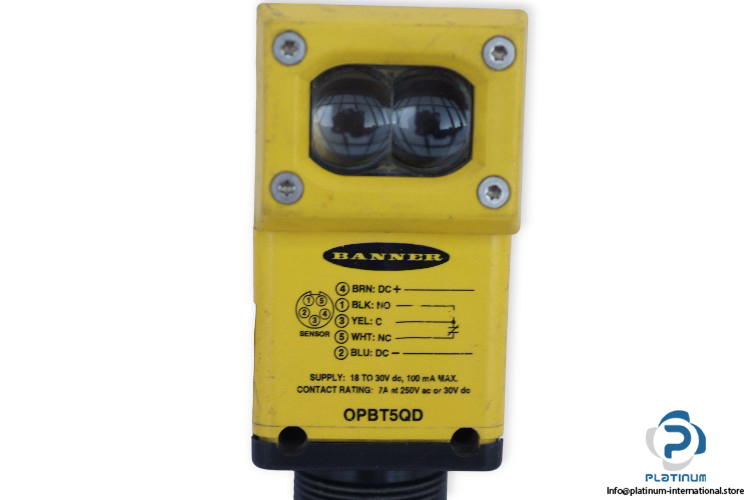

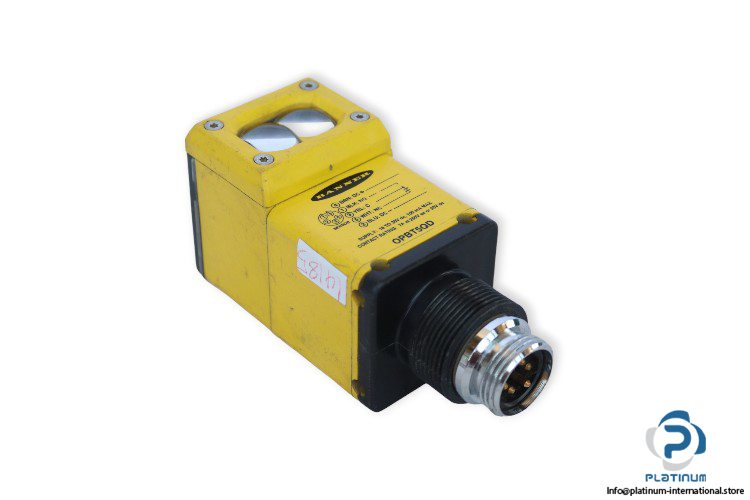

BANNER Sensor Power Block OPBT5QD
The BANNER OPBT5QD Sensor Power Block complements the OSBLV sensor head with reliable power and switching capabilities. It supports the Sonic OMNI-BEAM range and features SPDT relay contacts with a current rating of 7 A. The power block™s durable yellow thermoplastic housing ensures robust performance in demanding environments.
🔧 Power Block Specifications:
- Manufacturer: BANNER
- Type: Sensor Power Block
- Model: OPBT5QD
- Range: Sonic OMNI-BEAM
- Operating Voltage: 18 to 30 V DC
- Current Consumption Max.: 100 mA
- Contact: SPDT Electromechanical Relay
- Contact Ratings: 250 V AC / 30 V DC, 7 A

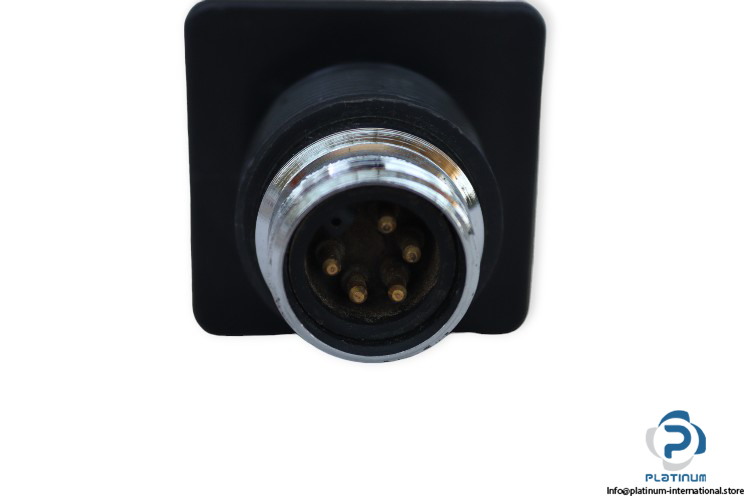

- Connection Type: Male Connector, 5-Pin
- Housing Material: Plastic, Thermoplastic, Yellow
