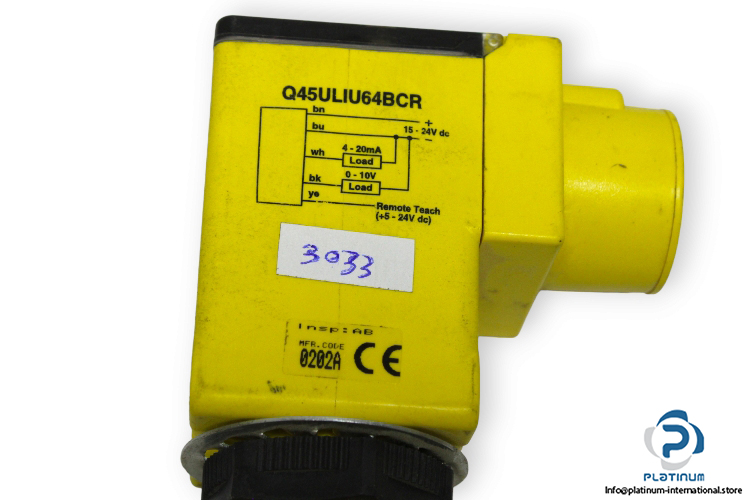

Banner Q45ULIU64BCR Ultrasonic Sensor
189,99$
Ultraschallsensor Der Banner Q45ULIU64BCR bietet präzise berührungslose Abstandsmessung bis zu 3000 mm. Mit dualen analogen Ausgängen und einem IP67-klassifizierten PBT-Gehäuse sorgt er für langlebige und genaue Sensorik in der industriellen Automatisierung.
Banner Q45ULIU64BCR Ultrasonic Sensor with Analog Outputs
The Banner Q45ULIU64BCR Ultrasonic Sensor provides reliable non-contact distance measurement using ultrasonic technology. Designed for precision and durability, it features dual analog outputs (0“10 V DC and 4“20 mA) and a robust PBT rectangular housing. This sensor is ideal for applications in material handling, packaging, and level detection where accurate proximity sensing is essential.
Manufacturer: Banner
Type: Ultrasonic Sensor with Analog Outputs
Model: Q45ULIU64BCR
| Power Supply | 15 / 24 V DC |
| Analog Output Configuration | 0 / 10 V DC / 4 / 20 mA |
| Sensing Distance | 3000 mm max. |
| Electrical Design | PNP |
| Cable Length | 2 m |
| Ultrasonic Frequency | 128 kHz |
| Housing Style | Rectangular |
| Primary Housing Material | PBT |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Minimum Response Time | 80 ms |
| Operating Temperature | -25 / 70 °C |
| IP Rating | IP67 |
