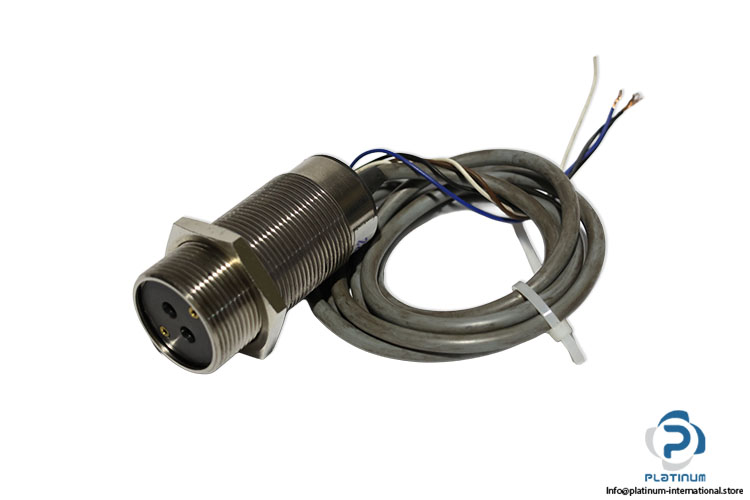

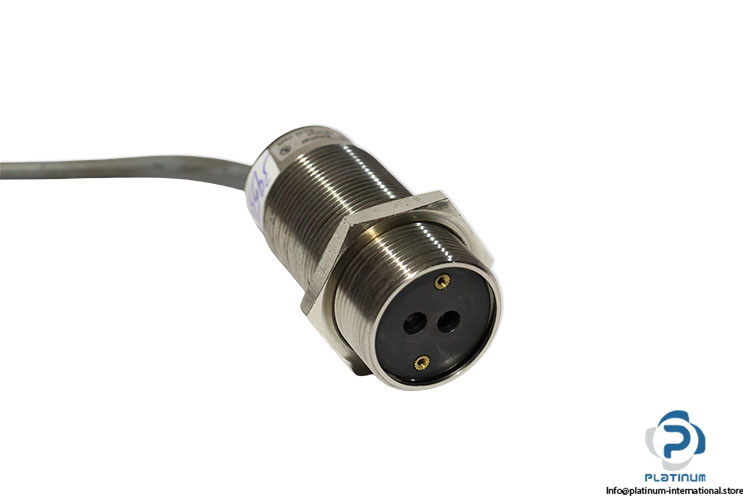

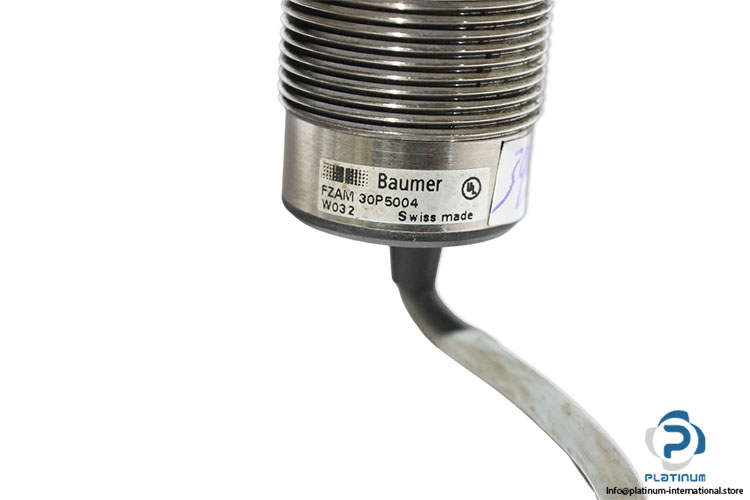

Baumer Fzam 30P5004 Fiber Optic Sensor
Gebraucht
Auf Lager2 EinheitenVersandbereit
Fiber Optic Sensor BAUMER FZAM 30P5004 fiber optic sensor with PNP output, infrared light source, adjustable sensitivity, and IP65 protection for industrial automation applications.
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Art No | 10215057 |
| Light source | Pulsed infrared diode |
| Light indicator | LED yellow |
| Alignment / soiled lens indicator | LED, flashing |
| Adjustment | Potentiometer, 20 turn |
| Wave length | 880 nm |
| Response time / release time | < 2.5 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 50 mA |
| Current consumption typ. | 33 mA |
| Voltage drop Vd | <2.5 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 30 mm |
| Height / length | 66 mm |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |

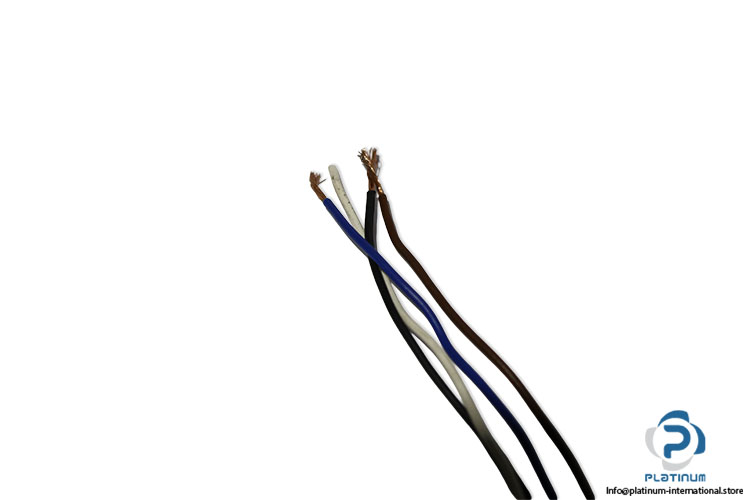

| Connection types | Cable 4 wire |
| Operating temperature | 0 … +65 °C |
| Protection class | IP 65 |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100949 |
| Weight | 0,15 |
