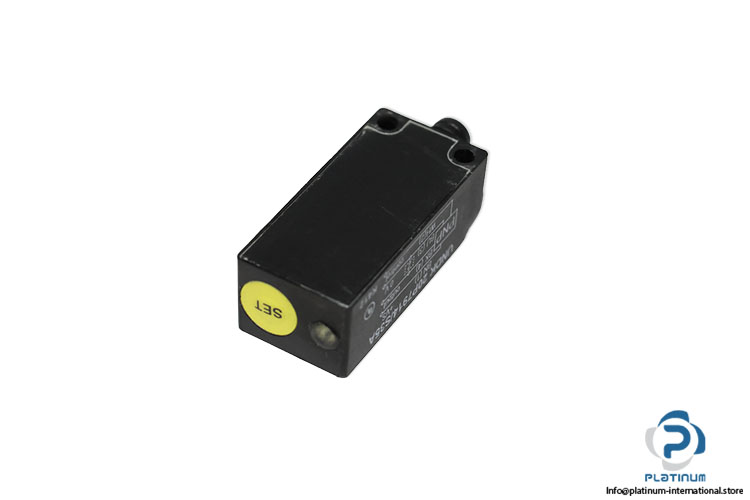

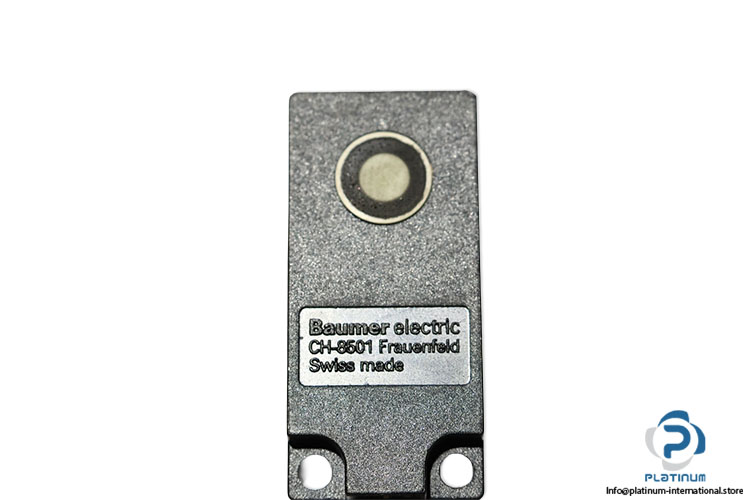

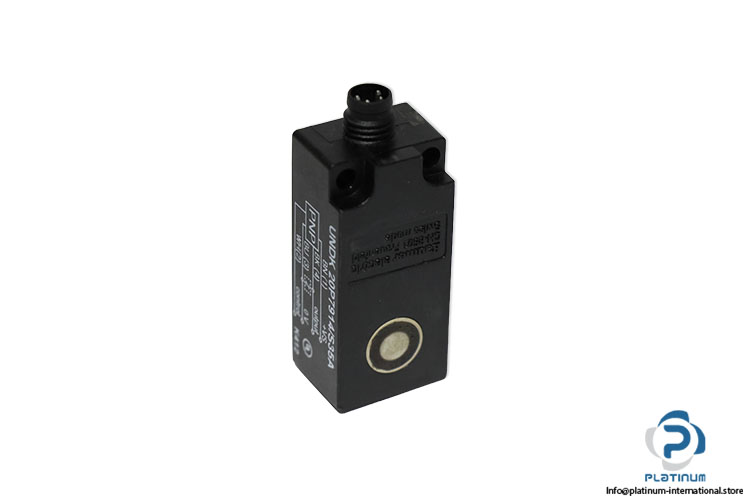

Baumer Undk 20P7914/S35A Ultrasonic Proximity Sensor
Neu
Auf Lager1 EinheitVersandbereit
Proximity Sensor BAUMER UNDK 20P7914/S35A sensor with PNP output, infrared light source, adjustable sensitivity, and IP67 protection for industrial automation applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Scanning range Sd | 10 … 200 mm |
| Scanning range far limit Sde | 30 … 200 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | 0,18 % Sde/K |
| Response time ton | 10 ms |
| Release time toff | 10 ms |
| Sonic frequency | 380 kHz |
| Adjustment | Teach-in |
| Alignment aid | Target indication flashing |
| Output indicator | LED green |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 35 mA |

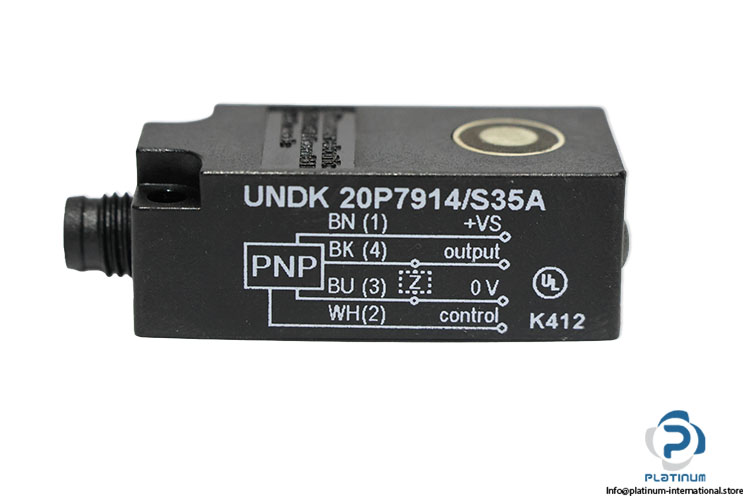

| Output circuit | PNP break function (NC) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Polyester |
| Width / diameter | 20 mm |
| Height / length | 42 mm |
| Depth | 15 mm |

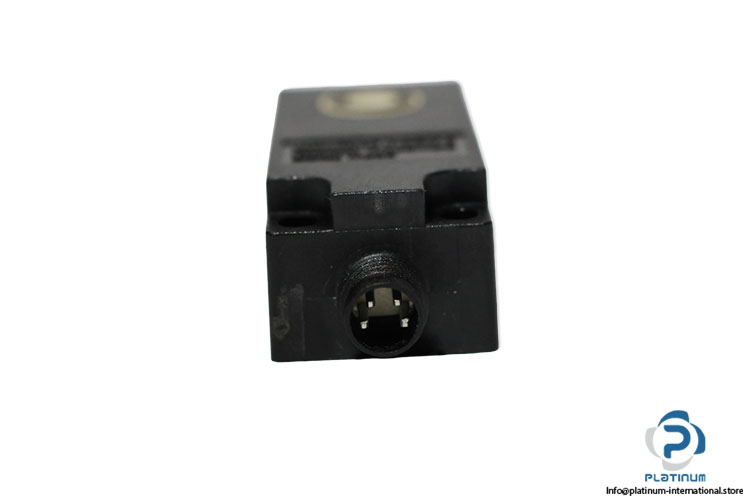

| Connection types | Connector M8 |
| Operating temperature | -10 … +60 °C |
| Protection class | IP 67 |
| Condition | New |
| Stock key | CON003 |
| Condition | New |
