Baumer IVO GXMMW.1203P32 Multiturn Optical Absolute Encoder
Gebraucht
Auf Lager3 EinheitenVersandbereit
199,99$
BAUMER IVO multiturn optical absolute encoder with 13-bit singleturn and 16-bit multiturn resolution. Profibus-DP V1.11 interface, ø58 mm flange, and IP 65 protection for demanding automation environments.
1316447457ø58AbsoluteAutomationBaumerBitControlEncoderGXMMW.1203P32IndustrialIP65IVOmmMotionMultiturnOpticalpartProfibus-DP
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

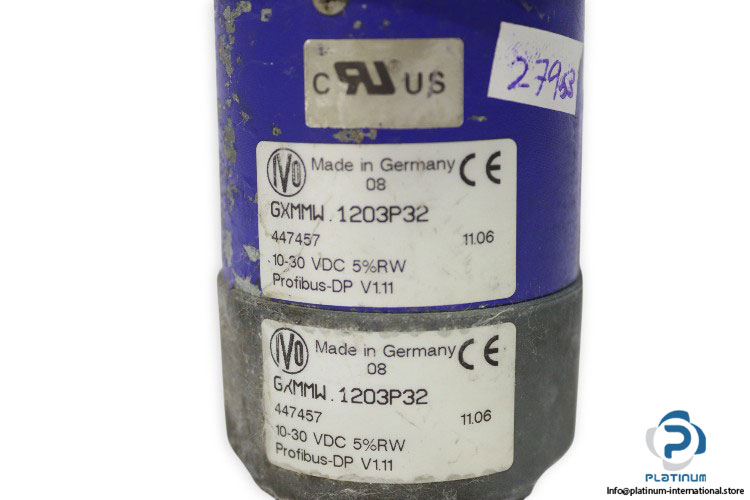

Manufacturer: BAUMER IVO
Type: Multiturn Optical Absolute Encoder
Model: GXMMW.1203P32
Part No.: 447457
The BAUMER IVO multiturn optical absolute encoder is engineered for precise position detection in industrial automation systems. With robust construction and advanced communication via Profibus-DP V1.11, it provides accurate singleturn and multiturn resolution, making it ideal for high-performance motion control applications.
- Voltage Supply: 10…30 VDC
- Current Consumption: 100 mA (24 VDC) without load
- Communication Protocol: Profibus-DP V1.11
- Size (Flange): ø58 mm
- Shaft Diameter: 6 mm
- Degree of Protection: IP 54 (without shaft seal), IP 65 (with shaft seal)
- Operating Speed: 10000 rpm (mechanical), 6000 rpm (electric)
- Resolution: Singleturn 13 bit, Multiturn 16 bit
- Material: Housing – Steel, Flange – Aluminium, Bus Cover – Zinc Die-cast
- Operating Temperature: -25…85 °C
