IVO Gxmms 1200000 Absolute Encoder
199,99$
ABSOLUTE ENCODER Baumer IVO GXMMS.1200000 ist ein multiturn Absolutwertgeber mit Profibus-Schnittstelle, blinder Hohlwelle, 16-Bit-Auflösung und IP54-Schutz. Entwickelt für präzise Automatisierung mit hoher Beständigkeit gegen Magnetfelder.

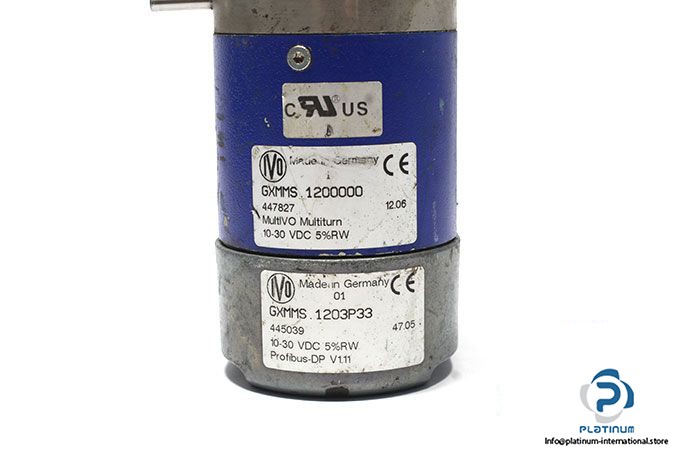

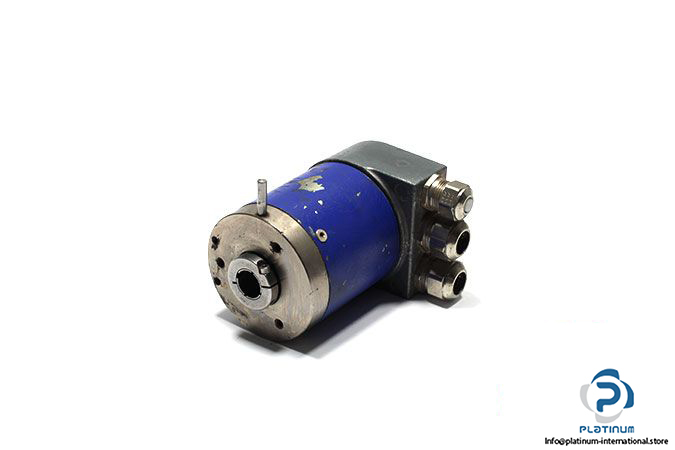

BAUMER IVO GXMMS.1200000 OPTICAL MULTITURN ABSOLUTE ENCODER
The Baumer IVO GXMMS.1200000 is a high-precision optical multiturn absolute encoder designed for robust industrial environments. With a blind hollow shaft and Profibus interface, this encoder ensures reliable performance, accurate multiturn resolution, and resistance against magnetic interference. Engineered for long-term durability and versatility in motion control applications.
Product Details
Manufacturer: Baumer IVO
Type: Optical Multiturn / Bus Cover Blind Hollow Shaft Absolute Encoder
Model: GXMMS.1200000
Part No.: 447827
Date Code: 12.06
Technical Specifications
- Power Supply: 10 “ 30 V DC
- Resolution: Multiturn 16-bit
- Function: Multiturn
- Incremental Output: 2048 pulses A90°B (optional)
- Shaft Type: Blind hollow shaft
- Interface: Profibus
- Flange Diameter: 58 mm
- Shaft Diameter: 12 mm, pin 15 mm
- Status Indicator: Included

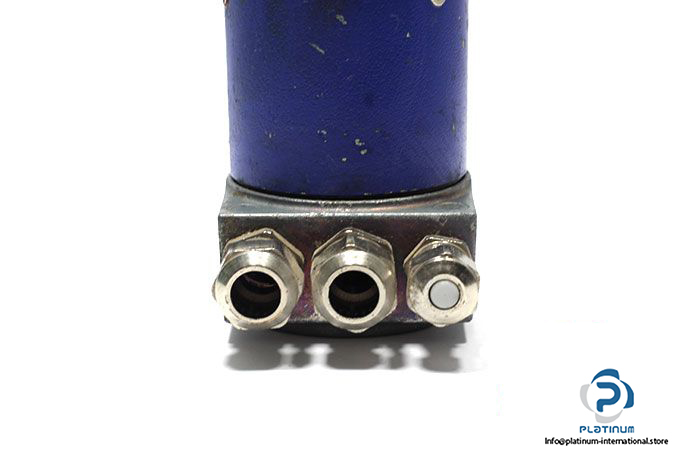

- Connection: Bus cover
- Operating Temperature: -25 to 85 °C
- Protection: IP54
Materials
- Housing: Steel
- Flange: Aluminium
- Bus Cover: Zinc die-cast
Included Attachment
Model: GXMMS.1203P33 Bus Cover
MRN: 445039
Voltage: 10 “ 30 V DC
